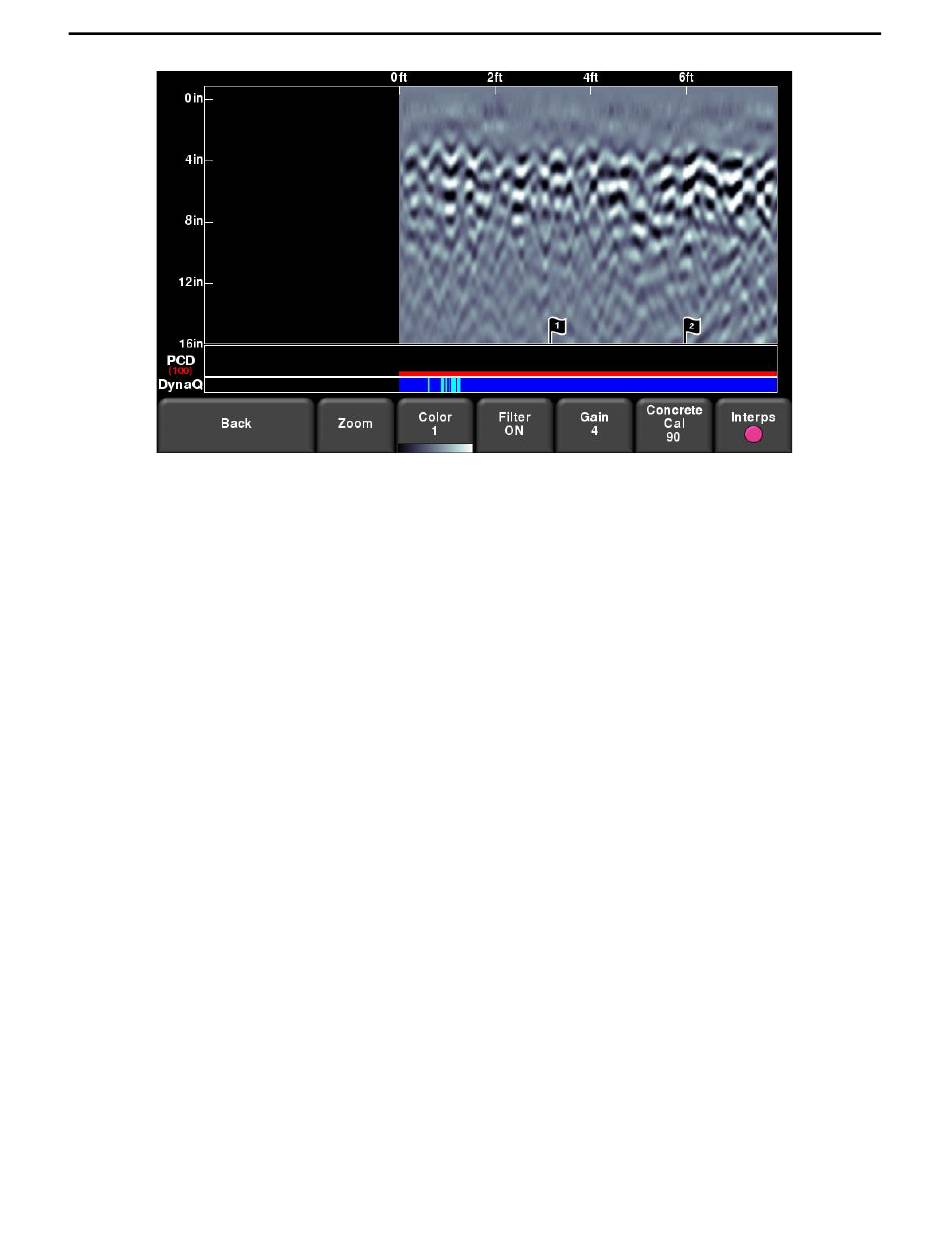

Figure 6-8: Pressing the * button while collecting Line Scan data plots a flag at that location in the data. Flags are
sequentially numbered. Flags are used to indicate a significant position in the data, for example, a target or a place
Flags can be added when the Sensor Head is actively collecting data while being pushed
forward or when using the Back-up Indicator. The flag is added at the exact position of the
sensor head.
Flags are sequentially numbered, 1, 2, 3 etc. for each Line Scan.

6.7 Stopping Line Scan

There are three ways to stop the current Line Scan:
•
Press the Stop button on the Display Unit
•
Press the Enter key on the Sensor Head
•
Press the Bluetooth Trigger
The Line Scan will also stop when you reach the maximum scan distance of 150' (50m).

6.8 Line Scan Menu Options

During data collection or when a line scan is ended or opened for review, a menu appears along
the bottom of the screen that allows the user to modify the current image. These menu options
are explained below:

6.8.1 Start / Stop / Back

Start data collection (if stopped) and Stop data collection (if started). If you are stopped (or in
review mode) and want to view data that has scrolled off the screen, use the left and right
where the surface material changes.
