Conquest 100
minimum suggested survey size for local area investigations. These grids can be taped
together to create larger sizes explained in the section below.

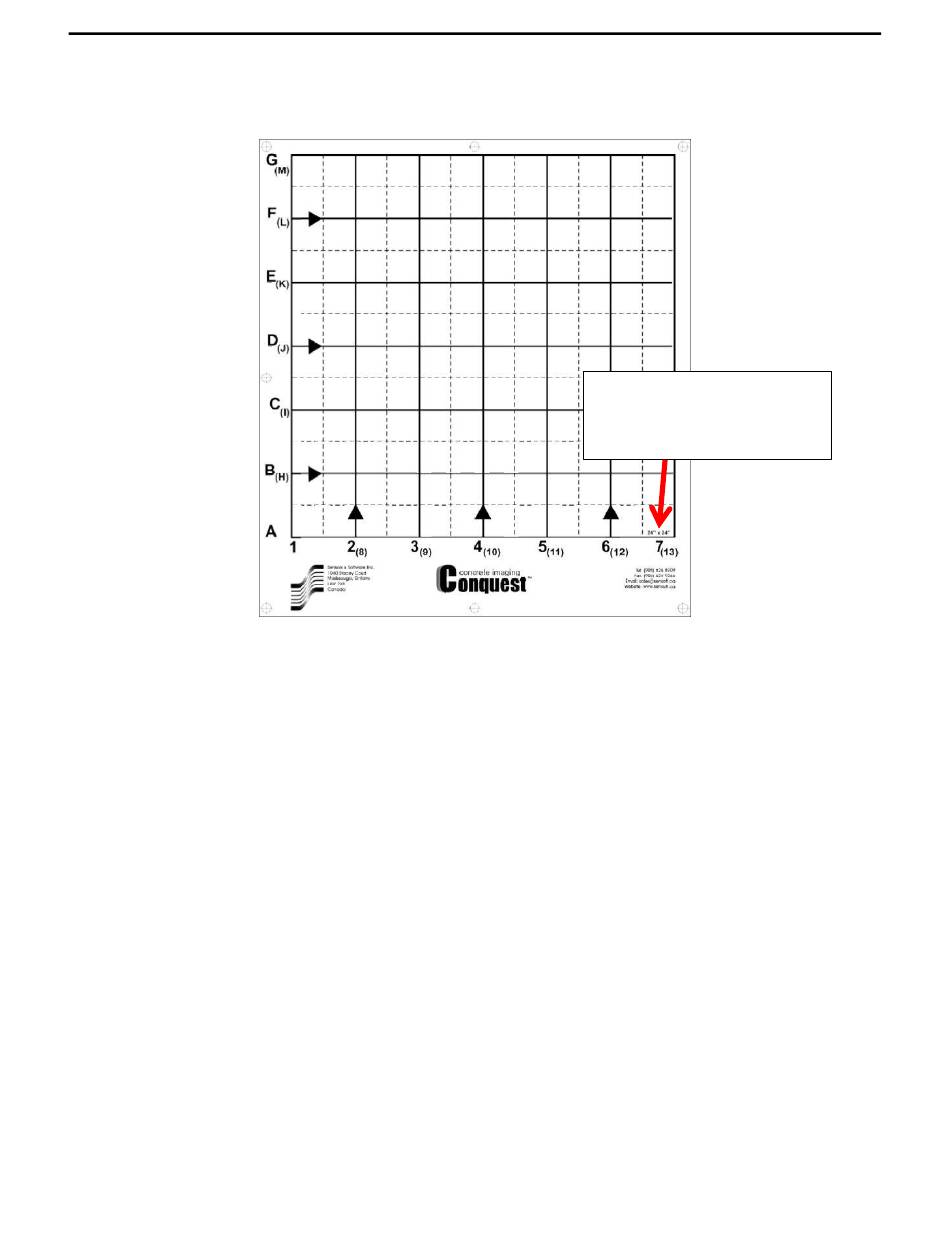

Figure 7-1: Grids are 24" x 24" or 600 x 600 mm. Alpha lines are labeled A, B, C etc. and Numeric lines are labeled 1,
2, 3 etc. and spaced 4 inches (100 mm) apart. High resolution lines are dotted and spaced every 2 inches (50 mm).
The grid mats are labeled with numbers and letters. Survey lines which run vertically on the
sheet are labeled 1 through 7, and lines which run horizontally on the sheet are labeled A
through G. These solid lines are spaced 4 inches or 100 mm apart and are used for normal
resolution surveys. Dotted lines are shown halfway between these lines and are used in addition
to the solid lines in high resolution surveys.
The lettering (Alpha lines) and numbering (Numeric lines) provides a grid coordinate system.
This same coordinate system shows up on the images created by Conquest for easy reference
back to the grid.

7.4 Larger Grids

Larger areas can be surveyed by taping multiple grid mats together to produce 48" x 24" (1200 x
600 mm) and 48" x 48" (1200 x 1200 mm) survey grids. If you are collecting the larger sizes
(available only with the Enhanced model), you may need to layout or "chalk-out" your own grid
on the floor.
On Conquest grid sheets, the line numbers past the edge of the first grid sheet are indicated on
the second grid sheet mat in brackets. When joining multiple sheets, make sure they overlap
Units on grid must
match units in Conquest
Setup
76
Grid Scan
