Conquest 100 Line Scan

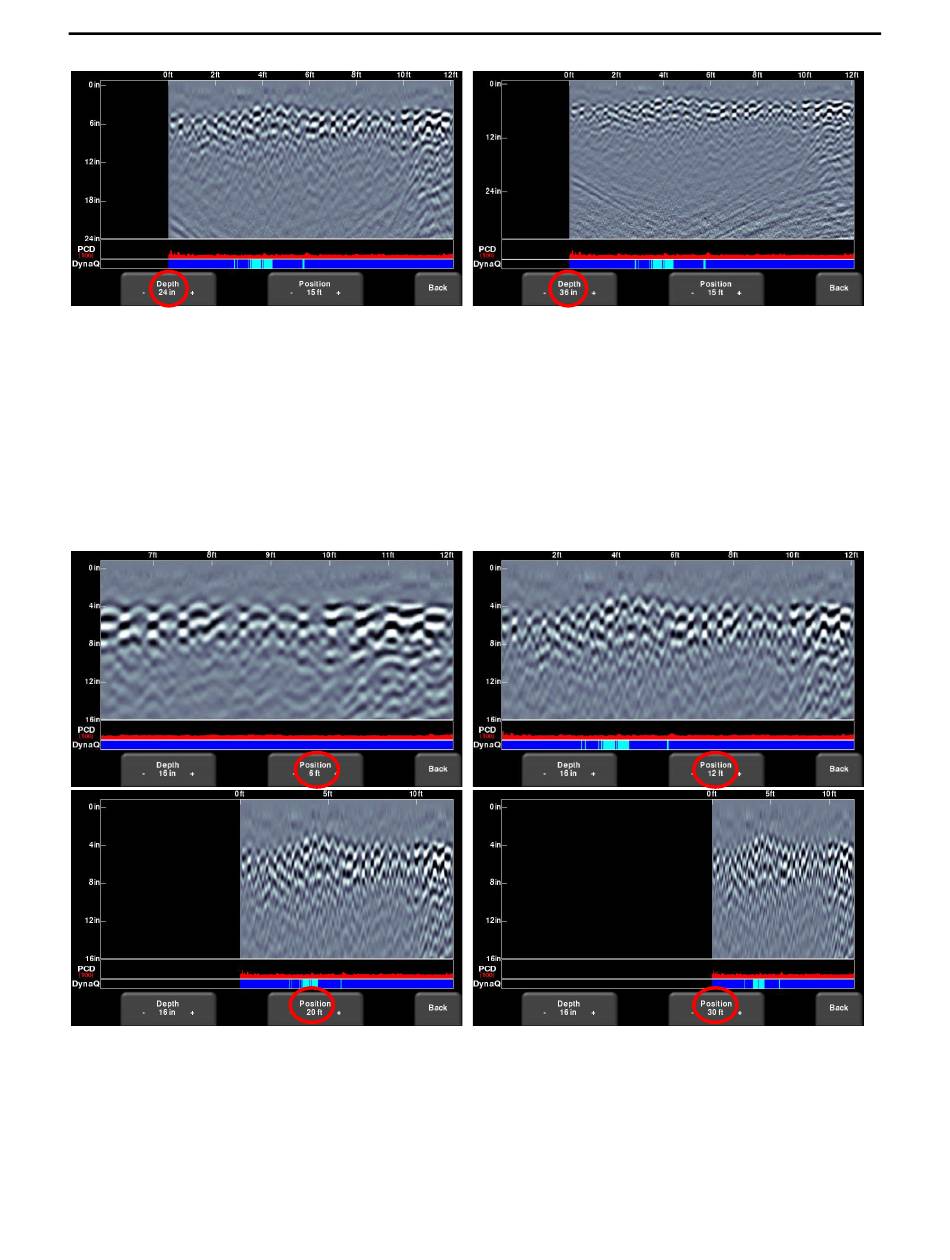

Figure 6-10: Varying depth
•
Position - Pressing + and - under the Position button allows you to change the length
of data display on a single screen. This is also known as horizontal scaling. The pre-set
values range from 6' to 30' (2m to 10m). One reason for setting this value larger would
be to fit more data on the screen and look for consistency among hyperbolas that were
crossed. Figure 6-11 shows the effect of varying the position value.
Figure 6-11: Varying position, or horizontal scaling
