Conquest 100 Assembling Conquest

3.4.2 Sensor Keypad

Enter Flag
Lights
4-directional
arrows

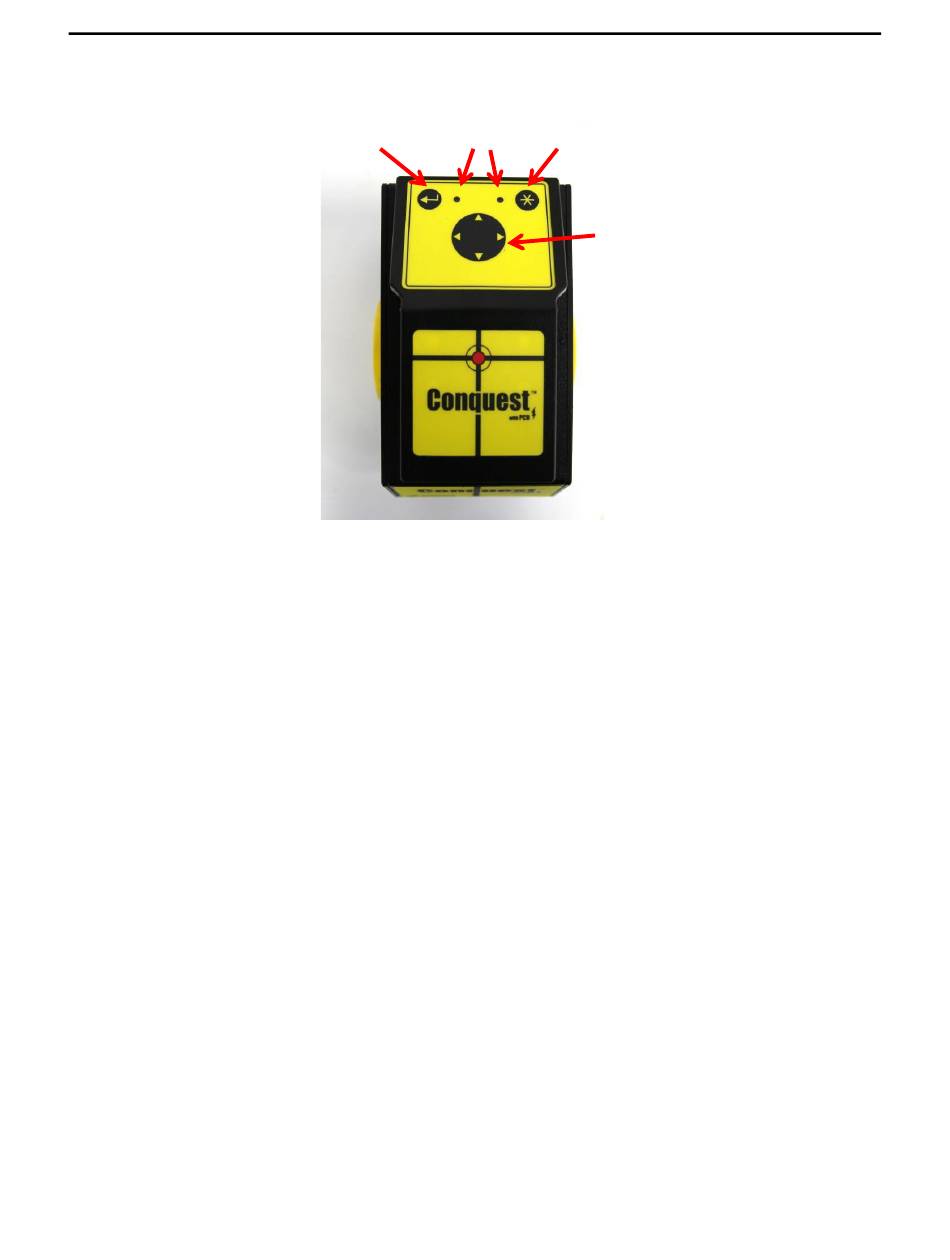

Figure 3-20: The Sensor Head keypad.
Enter Button: Pressing the Enter button will start data collection in Line Scan and Grid Scan
modes. Pressing Enter again will stop data collection. In Grid Scan mode, data collection will
stop automatically when you reach the end of the line, but you can end a line prematurely by
pressing Enter.
Left Light: The light beside the Enter button is solid green after the Sensor Head is powered
on. A flashing green light after the system has fully booted up indicates a problem with the
system.
Right Light: The light beside the Star (*) is off but turns solid red during data collection.
Star (*) Button: Pressing the Star (*) button will put a flag in the data during Line Scan
collection.
Arrows: The 4-way directional arrows are used anytime the screen requires this type of
movement, for example, changing the selected line in Grid Mode.

3.5 Powering Conquest

3.5.1 Powering Up

After the system is completely assembled, power it up by pressing the red power button on the
front of the Display Unit.
