Battery tab
Rounded corners
Battery Compartment Door

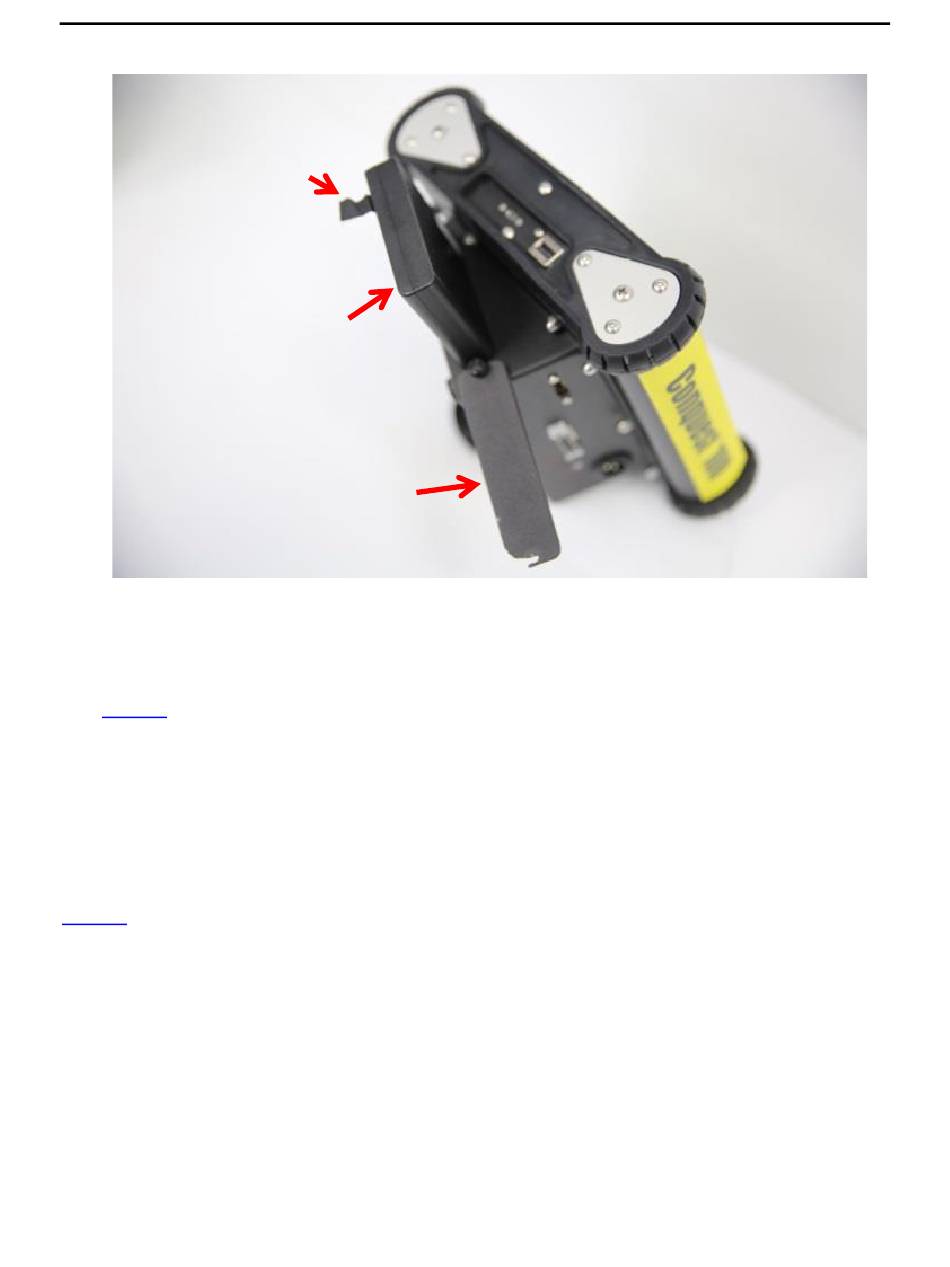

Figure 3-6: Inserting the battery into the Display Unit. The compartment has rounded corners on one side to match

3.1.5 Charging the Battery

See Section 0 about using the battery the first time.
To charge the battery, insert it into the Display Unit and connect the Battery Charger/AC
Adapter to the 3-pin connector on the back of the Display Unit (Figure 3-7). The light on the
back of the Display Unit indicates if the battery is charging (orange) or charged (green).
The battery can also be plugged into the optional desktop charger.
The Conquest 100 system can be used while the battery is being charged (for details, see
Section 13.2).
the shape of the battery.
