Conquest 100

arrows on the keypad. If you are stopped, you can press the Back button at the bottom of the

screen to exit Line Scan mode.

6.8.2 Zoom (changing Depth and Position scales)

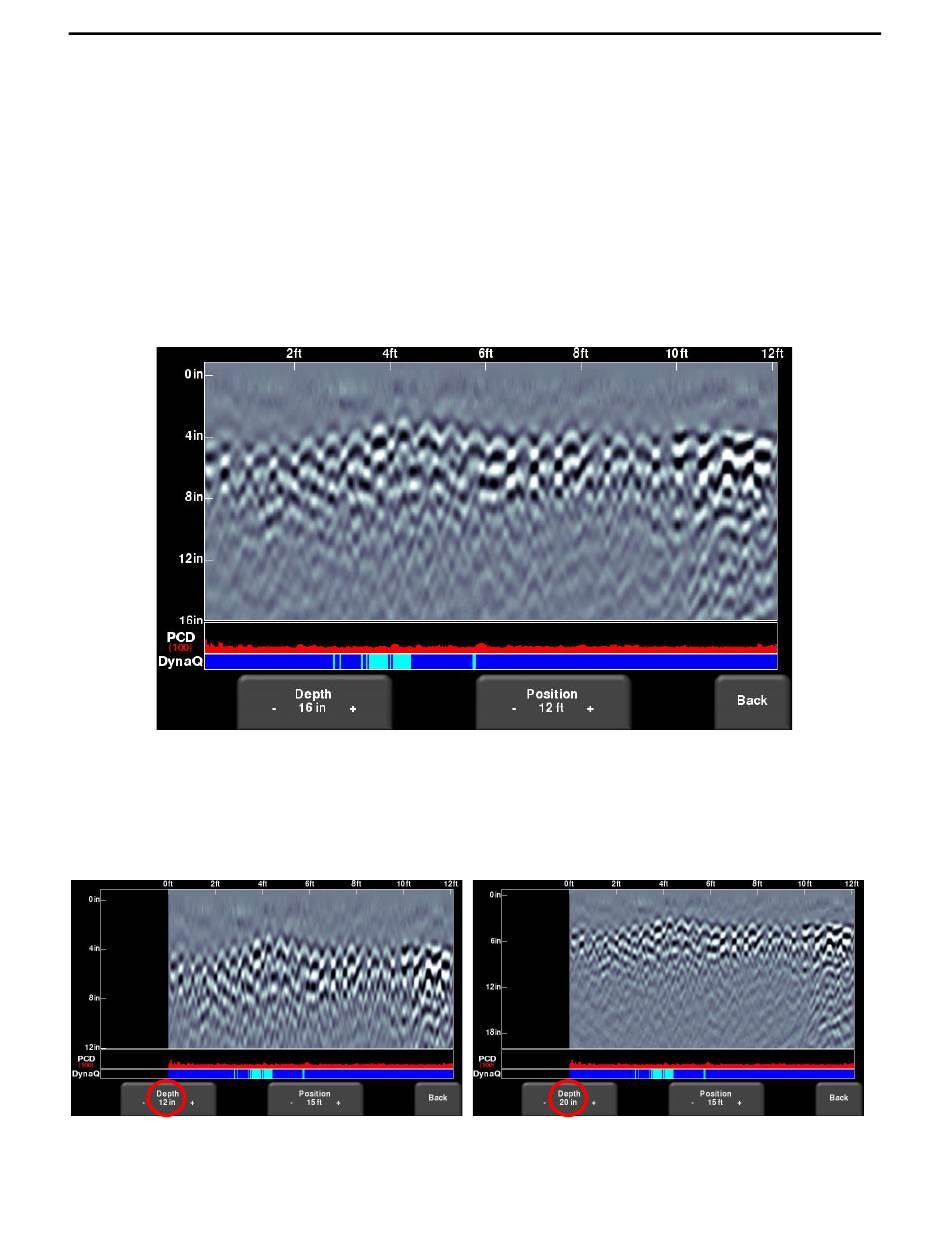

Pressing Zoom switches the menu at the bottom (Figure 6-9) allowing you to change the

horizontal and vertical scaling of the data you are viewing.

•

Depth: Conquest always collects to a depth of about 36" (90 cm). However, you may

choose to display less depth to make targets easier to see. In general, it's a good idea

to set your displayed depth to 1.5 - 2 times the depth of your expected deepest target.

Pressing + and – under the Depth button allows you the change the displayed depth.

The pre-set values range from 12" to 36" (300mm to 1000mm). Figure 6-10 shows the

effect of varying the depth value.

Figure 6-9: Menu seen when Zoom is pressed

Line Scan
