Conquest 100 Demonstration Data
Grid 1
The dimensions of the grid are 48" x 48", with lines collected every 2" apart. This was collected
on a suspended concrete slab. As we slice down from the top, the first feature is visible on the
5-6" depth slice in the lower left corner. Interps have been added to highlight this feature on the

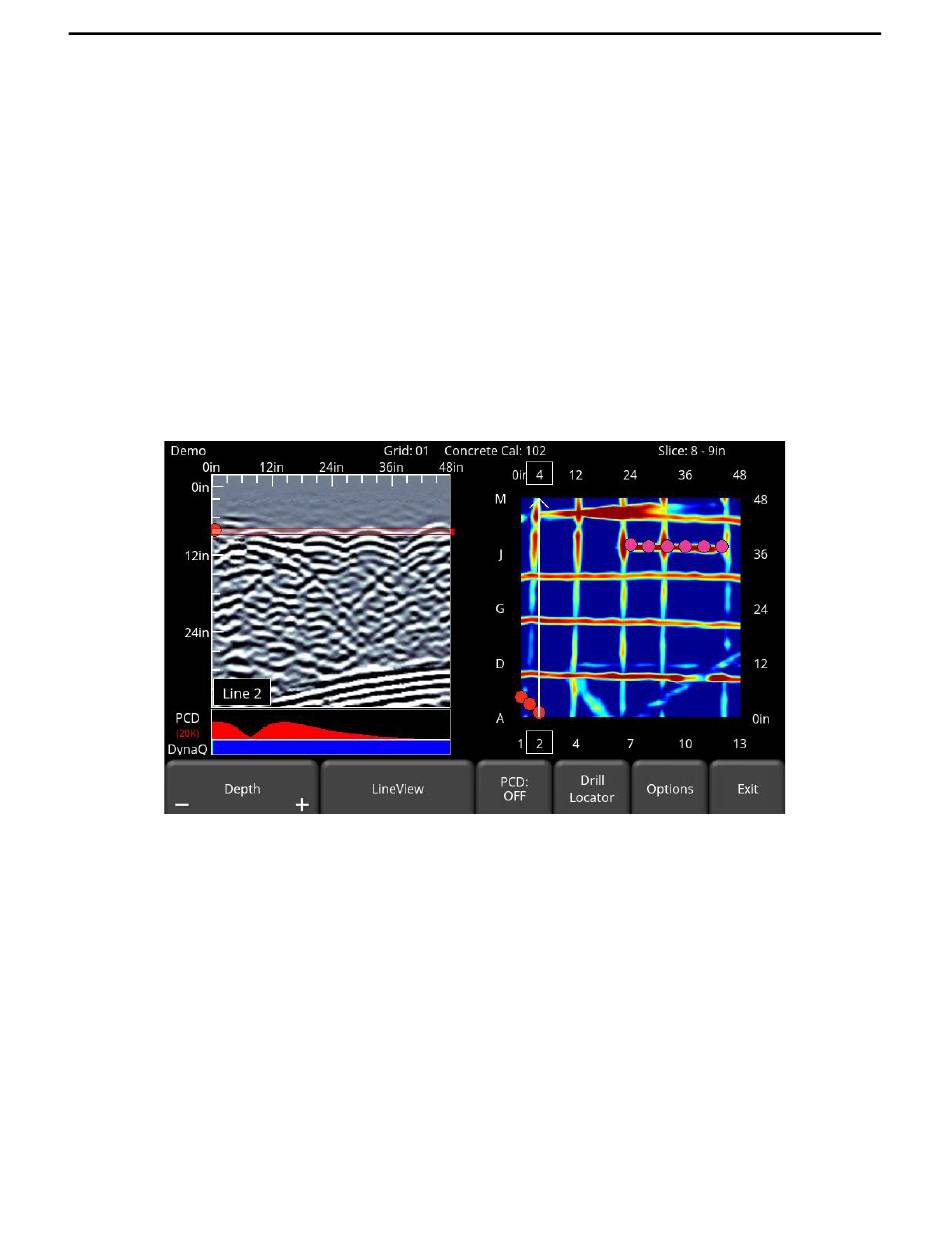

line scan, which are also displayed on the depth slices.The majority of reinforcement is seen on
the 8-9" depth slice.
Slicing down to the 11-12" depth slice, there is a curved feature visible. Turning the PCD on
reveals a PCD repsonse that lines up exactly with the feature on the radar data. These were
electrical conduits mounted on the underside of the slab, also known as surface mounted
conduits.
This example highlights the importance of going through all the depth slices to locate features at
different depths in a concrete slab.
