Sensors & Software CONQUEST 100 User Manual page 57

Conquest 100
After connecting, the system will confirm connectivity by asking you to press a button on a
device (Figure 5-12)
The buttons at the bottom of the screen are explained in detail below:
o Scan – looks for any Bluetooth devices within range, and displays their status: Detected,
Paired or Connected. In some cases, you may need to re-scan a second time to find
devices.
o Connect – to connect a listed device, make sure the device status is Paired. Then
select the device and press the Connect button. It will then ask you to press a button on
the device to confirm a successful connection (Figure 5-12).
o Forget Device – will disconnect from device, forget its status and the name will turn
white. To use this device, you will need to pair it again.

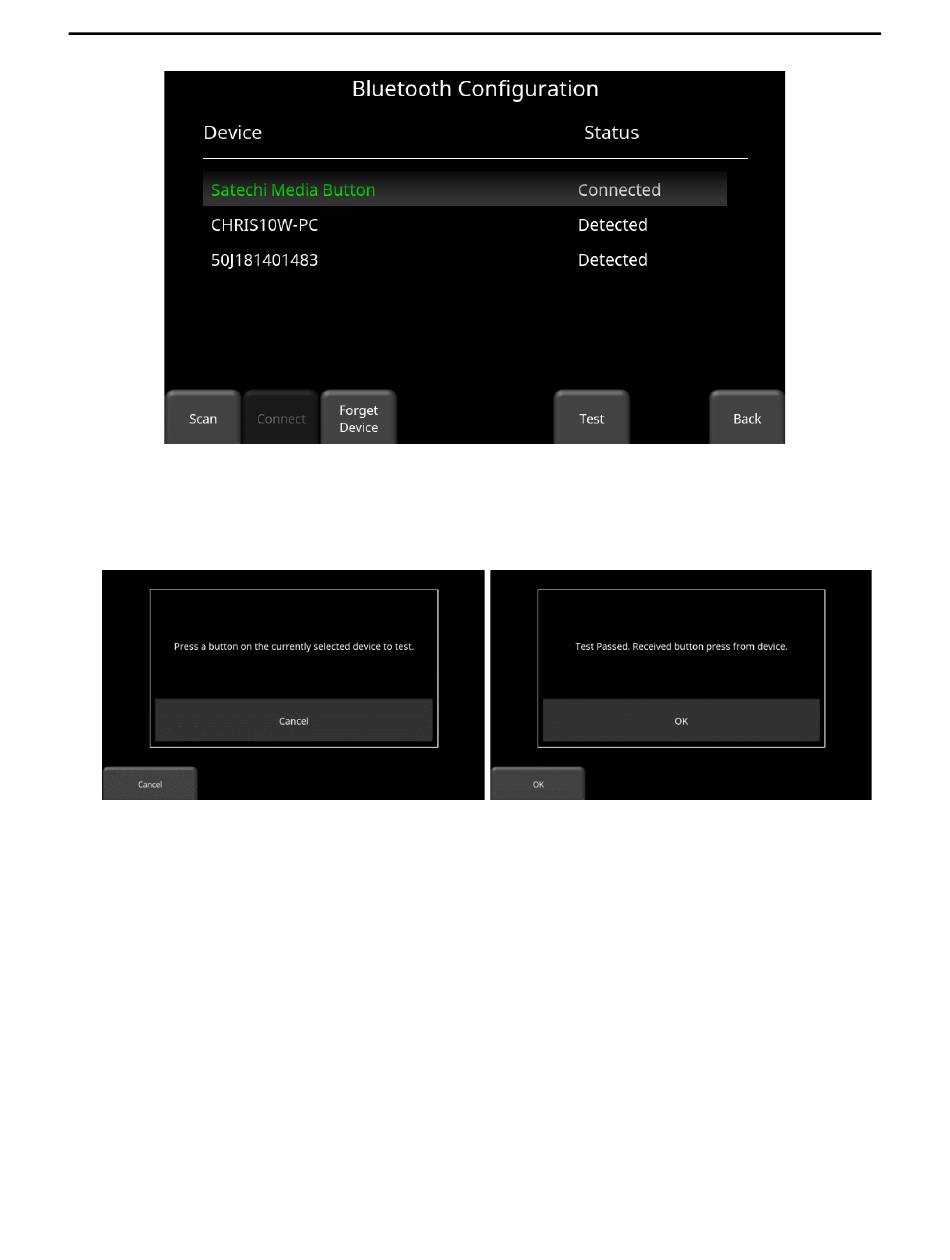

Figure 5-11: Connected to a device
Figure 5-12: Confirming Bluetooth connection and operation.
47
Tools & Setup
