Conquest 100
Tools & Setup

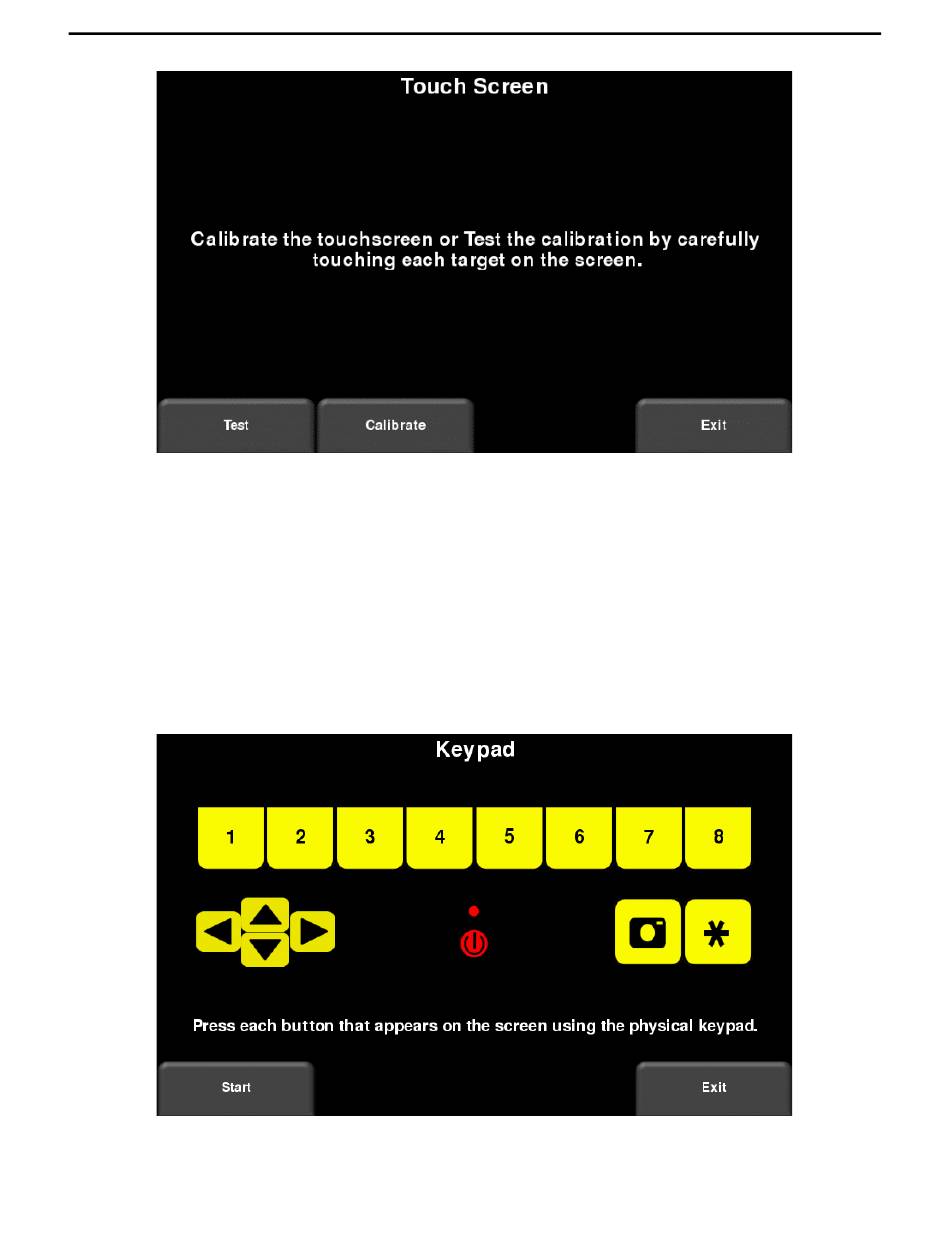

Figure 5-18: Touch Screen test
5.2.3 Display Keypad
The keypad test ensures that all buttons on the keypad are working. Press Start to begin the
test which requires the user to press each button once, within a 20 second timeframe (Figure
5-19). Button images will disappear from the screen as they are pressed.
Once that is complete, a short LED test will ensue, which checks the proper operation of the
LED.
Figure 5-19: Preparing to do the Keypad test
52
