Conquest 100

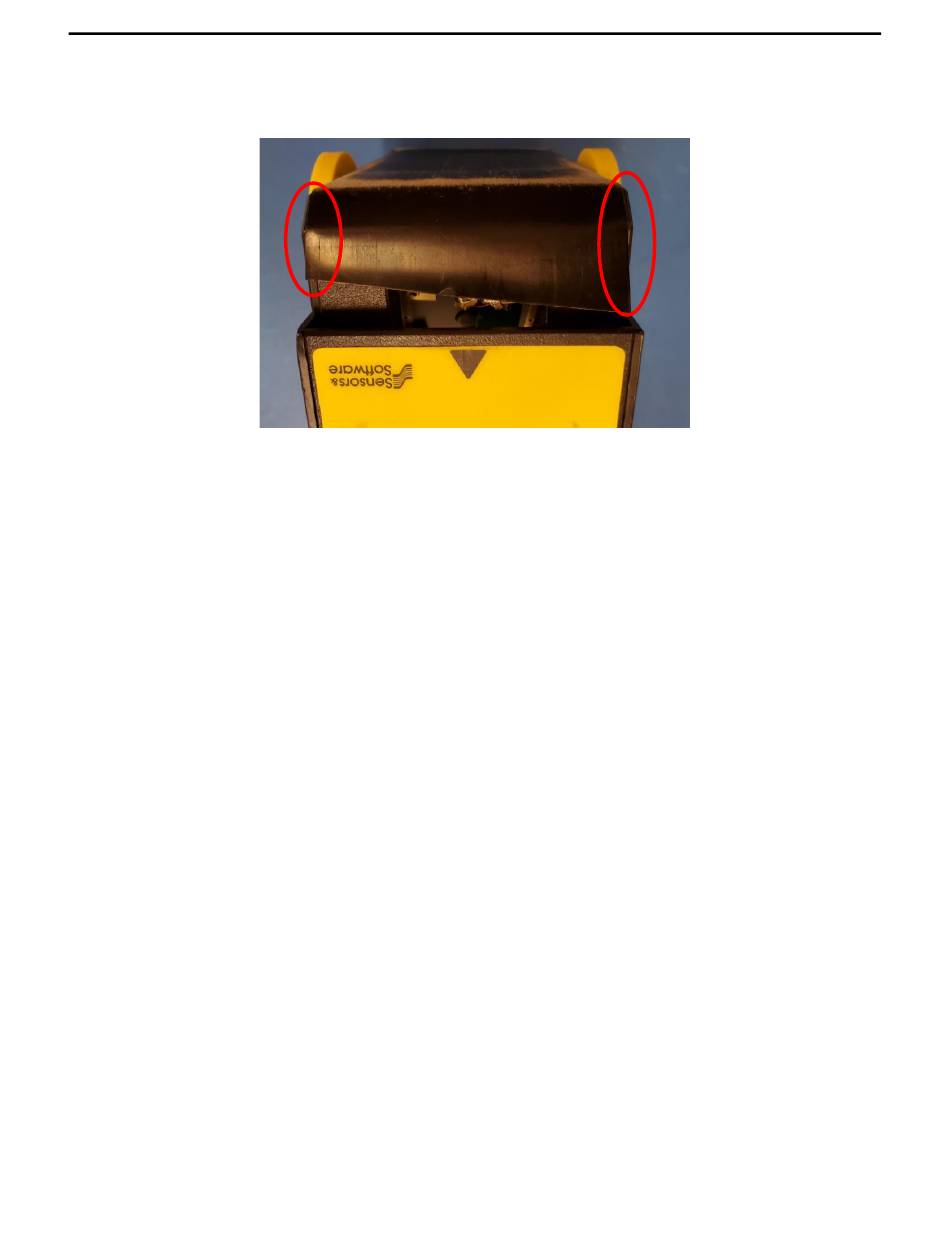

Carefully lift shell enough to access the skid pad at either one of the ends. Take note of
the location of the skid pad on the base
4) Remove the worn skid pad (use of a flat painting scraper may be required to separate
adhesive from the sensor base).
5) Once the skid pad is removed, clean the sensor base with a clean cloth saturated with
70% isopropyl alcohol.
6) Remove the backing from the new adhesive strip on the skid pad and reinstall, referring
to the location noted in step 4. Application requires significant force, to ensure flatness
and adequate adhesion.
7) Once applied, refer to the shell/wheel washer orientation in step 3 and slide the shell
back into place.
Reinstall the (4) screws from step 1.

13.4 Storage Cases

Equipment that is transported and stored loosely is more susceptible to damage. All equipment
should be stored in its shipping case or a storage box. Sensors & Software has shipping cases
available as options for all systems.

13.5 Upgrading Embedded Software on Display Unit

From time to time, Sensors & Software may release new software for the Display Unit. The
instructions below describe how to update this software. Please note that this procedure will
erase all GPR data from the system, so export any valuable data before continuing.
113
Care and Maintenance
