3.3 Display Unit

Data collection is controlled by the Display Unit. The Display Unit has embedded software to set
survey parameters and collect, display and store data.
The Display Unit offers touchscreen operation, as well as a water-resistant membrane keypad
with a number of buttons that can be pressed to perform various tasks. All standard operations
can be done using the keypad while some specialized functions can only be done with the
touchscreen.

3.3.1 Keypad Buttons

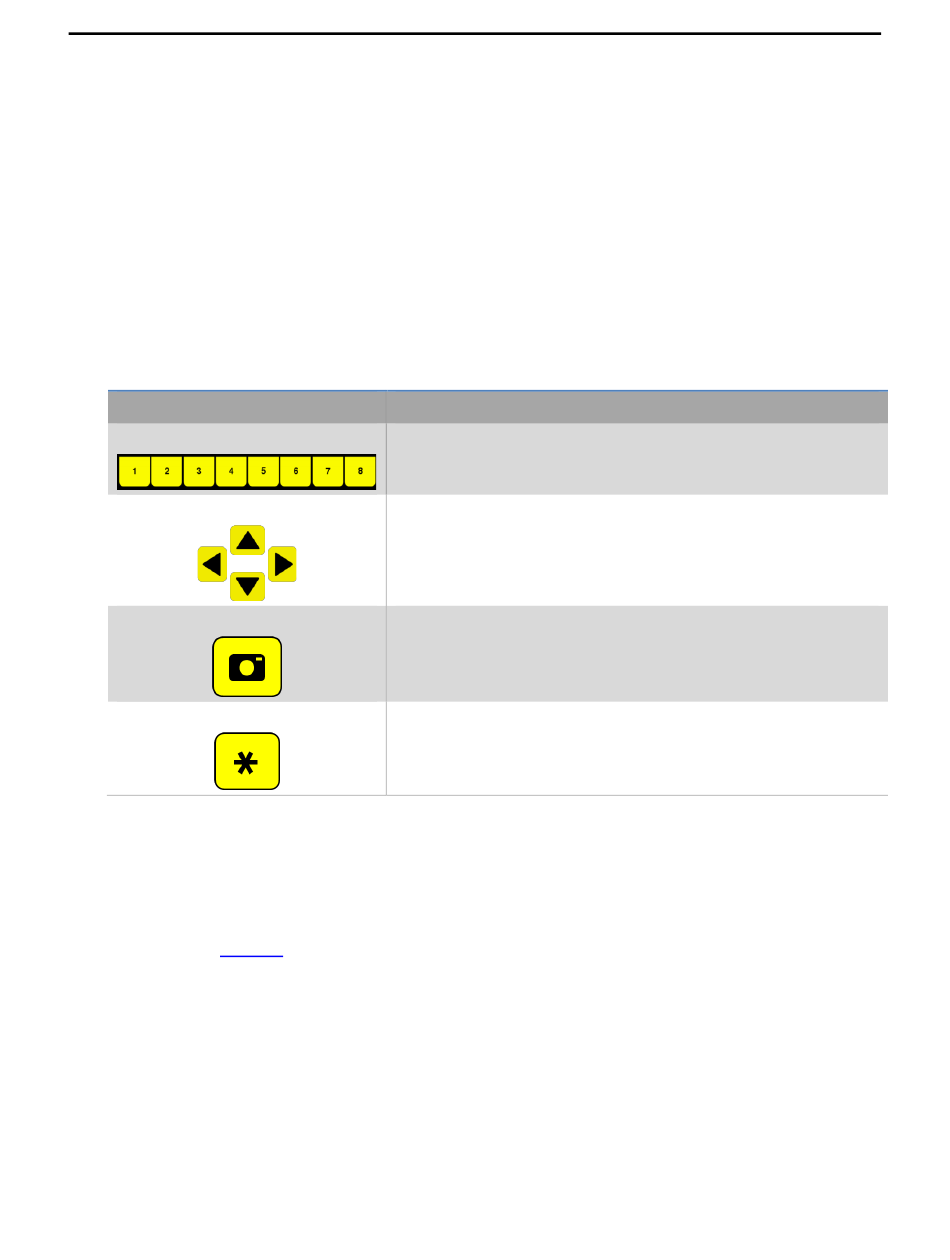

Use the following table as a guide to working with the keypad on the Display Unit:
Item
Menu Buttons
4-way directional keypad
Camera
Asterisk / Special Function

3.3.2 Power Button and Lights

Under the 8 yellow buttons is a red power button used to turn the system on and off. The light
above the button changes colors as the system boots up and also indicates battery power level
during operation (Section
Description
The yellow buttons labelled 1 to 8 correspond to menu choices
that appear on the screen.
Controls Up/Down/Left/Right operations in certain menus.
Saves a screenshot of line data, grid data or processed depth
slices.
Used for adding Flags during data acquisition.
3.5.1).
