Conquest 100 Grid Scan

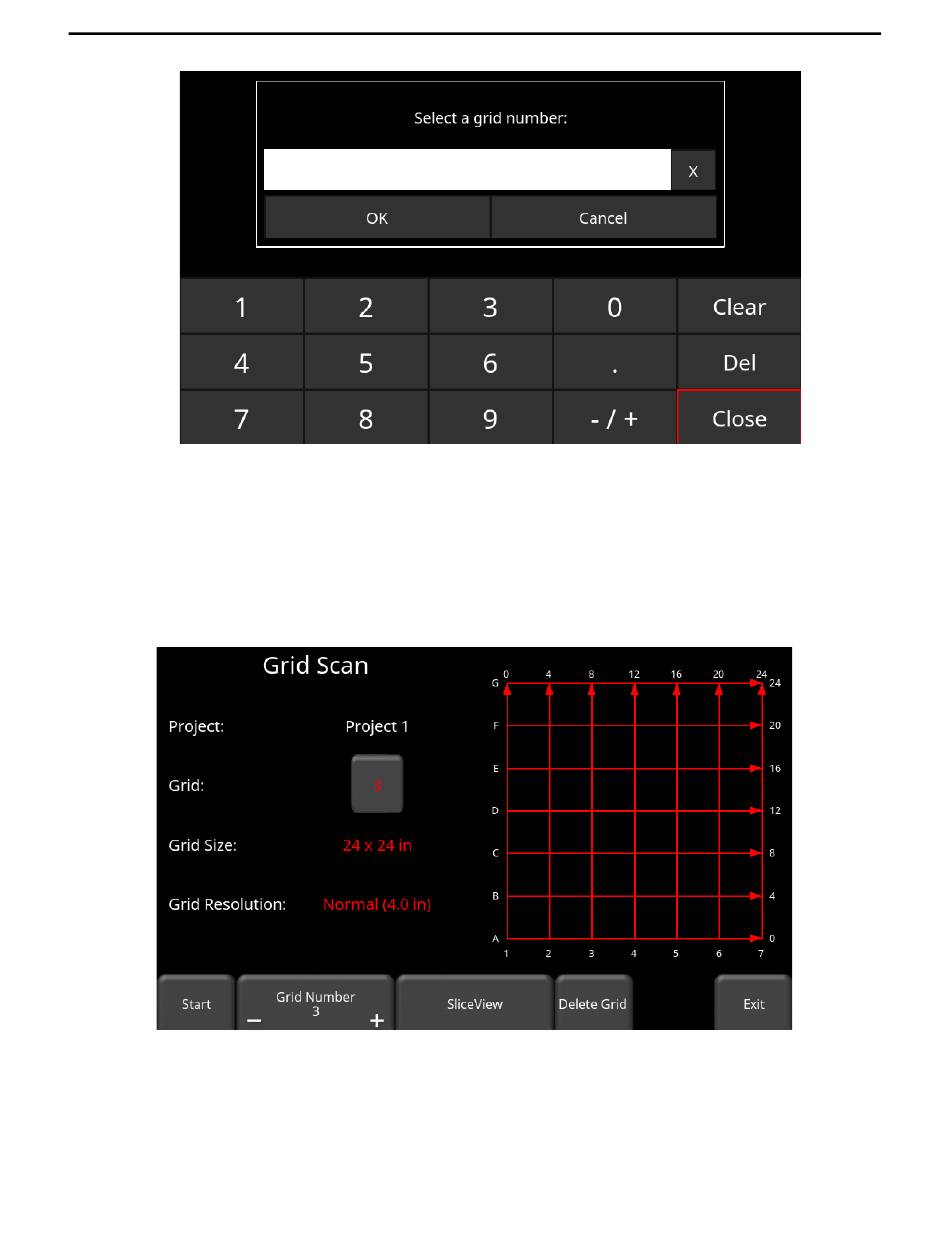

Figure 7-4: This screen allows the user to directly input the grid they wish to go to

7.6 Grids Containing Data

If the grid number is in red, then some data exists in that grid (Figure 7-5). This may be either a
fully collected grid, or a partially collected grid. Press start to continue data collection on a
partially collected grid or re-collect one or more lines if they were done in error.
Figure 7-5: A grid already containing data, with different options on the bottom menu
If the grid number is in red, the bottom menu changes slightly, giving you these new options:
•
SliceView – Press this to view the depth slice images for the grid.
79
