Conquest 100
6.9 No Save Mode
No Save Mode allows you to acquire data without saving it. Everything operates the same as in
Line Scan mode, with two differences:
1. There is no Interps button.
2. You can draw arrows to highlight features. Touch the screen where you want the
head of the arrow to appear, and then swipe away in the direction of the shaft. In the
example in (Figure 6-18), the user touched near the hyperbola, then swept their
finger towards the top left to create the arrow. Just like Interps, any number of
arrows can be drawn on this screen. Touch any arrow to remove it.
Pressing the Camera button will take a screenshot and save it in the currently selected project.

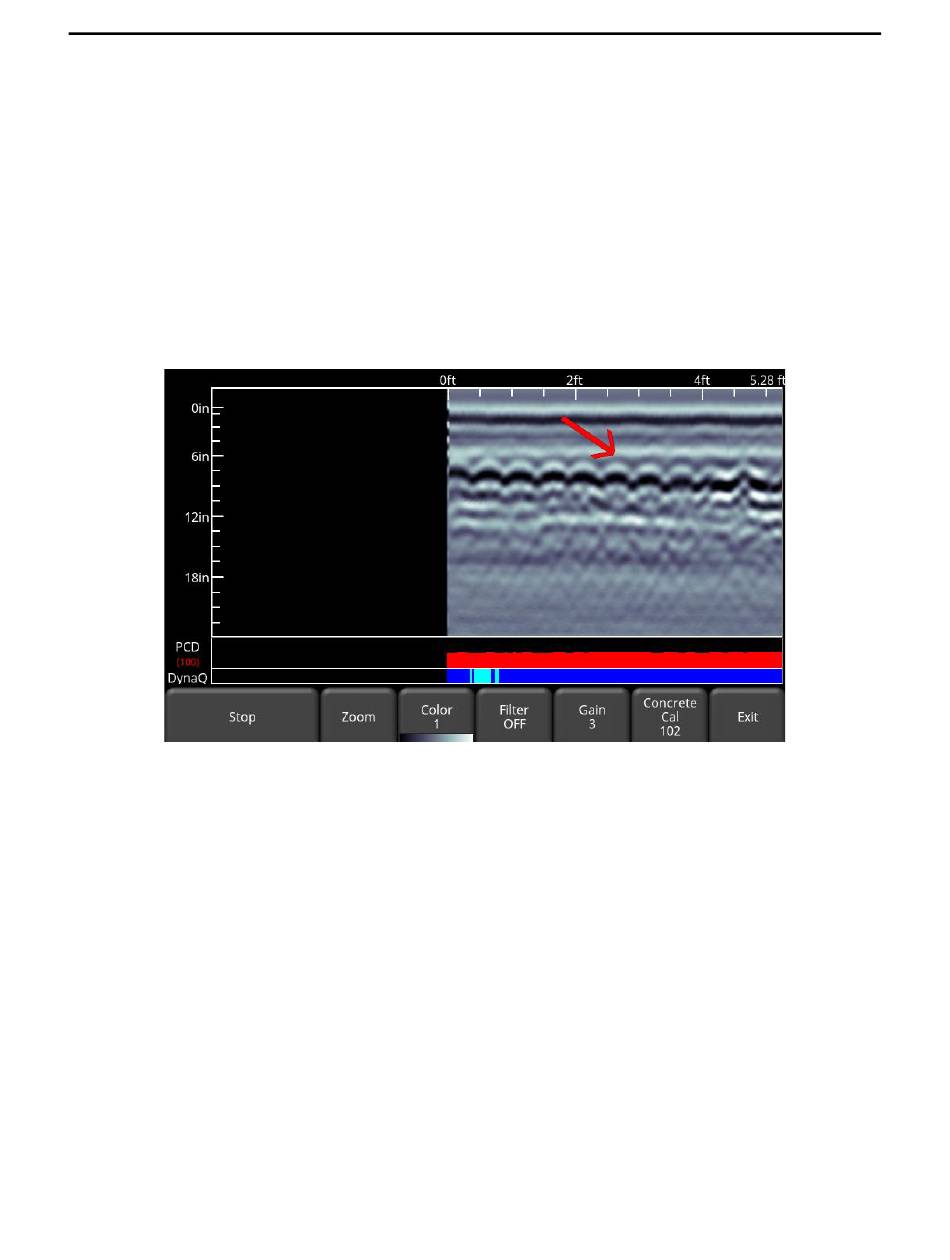

Figure 6-18: Drawing an arrow on the screen in No Save Mode
73
