Transferring Data To A Pc - Sensors & Software CONQUEST 100 User Manual

Conquest 100

11 Transferring Data to a PC

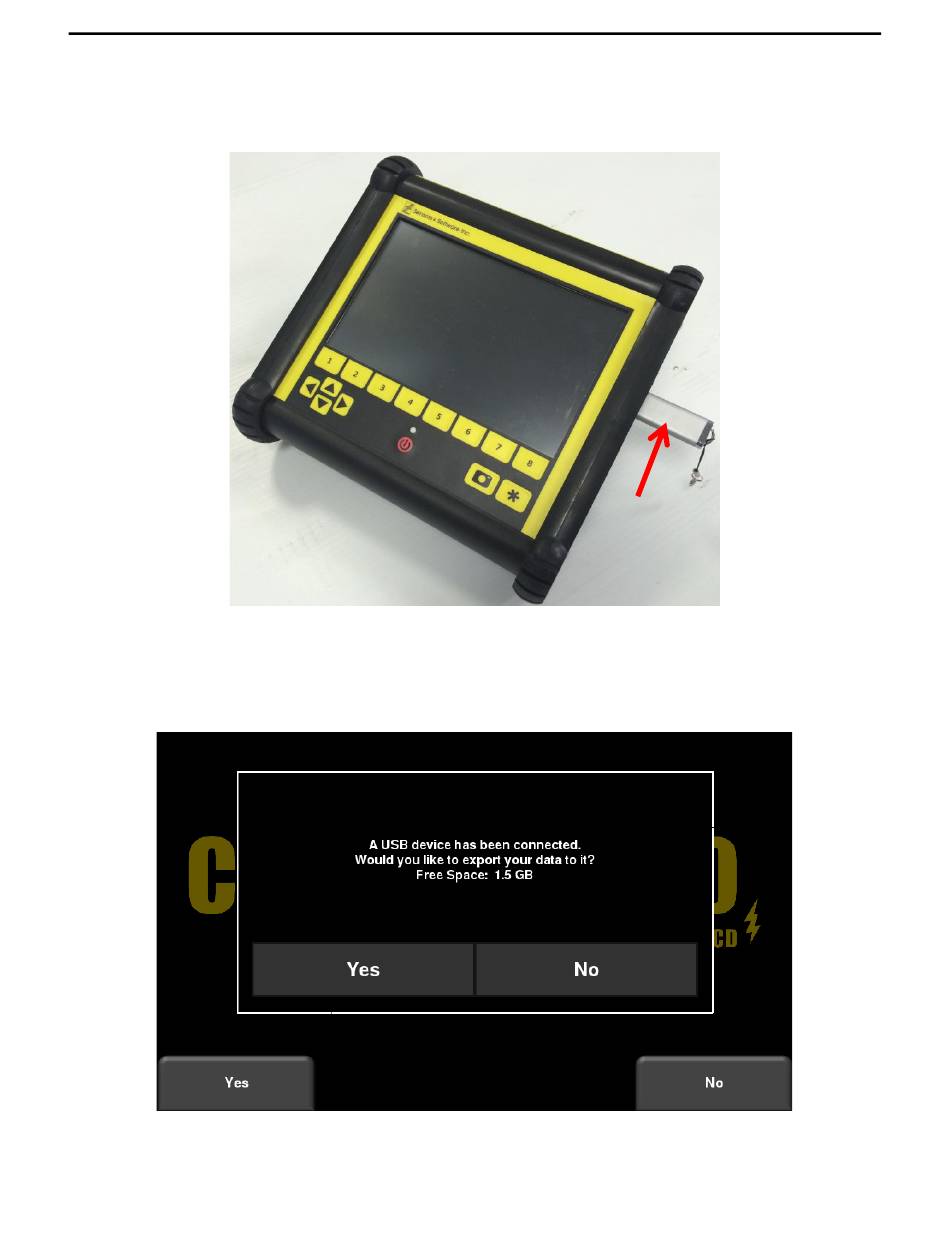

Data can be exported to a PC by inserting a USB drive into the USB port (Figure 11-1).
Figure 11-1: Insert a USB memory stick into the USB port on the Display Unit to export data.
Once the USB drive is recognized, a message will appear telling you that a drive has been
inserted and if you wish to export your data now (Figure 11-2). Press Yes.
Figure 11-2: When a USB drive is connected to the Display Unit, a message opens asking if you would like to export
all your data to it. Select Yes to transfer immediately. If you select No, you can export the data later by going to the
Setup > File Management menu option.
101
Transferring Data to a PC
USB-
memory
stick
