Conquest 100

3.1.2 Unpack the Components

Remove all the system components and ensure all items are present (Figure 3-2).
Battery Charger /
AC Adapter
AC Adapter
Cord

3.1.3 Connect Cable to Display Unit

Connect the male end of the standard yellow sensor cable to the port on the back of the Display
Unit (Figure 3-3). Ensure that the connection "clicks" into place so it cannot be disconnected
without squeezing the clips on either side of the connector.

3.1.4 Connect Cable to the Sensor Head

Connect the other (female) end of the yellow sensor cable to the Sensor Head in a similar
manner. Note that the receptacle is under the handle grip (Figure 3-4).
Sensor Head
Battery

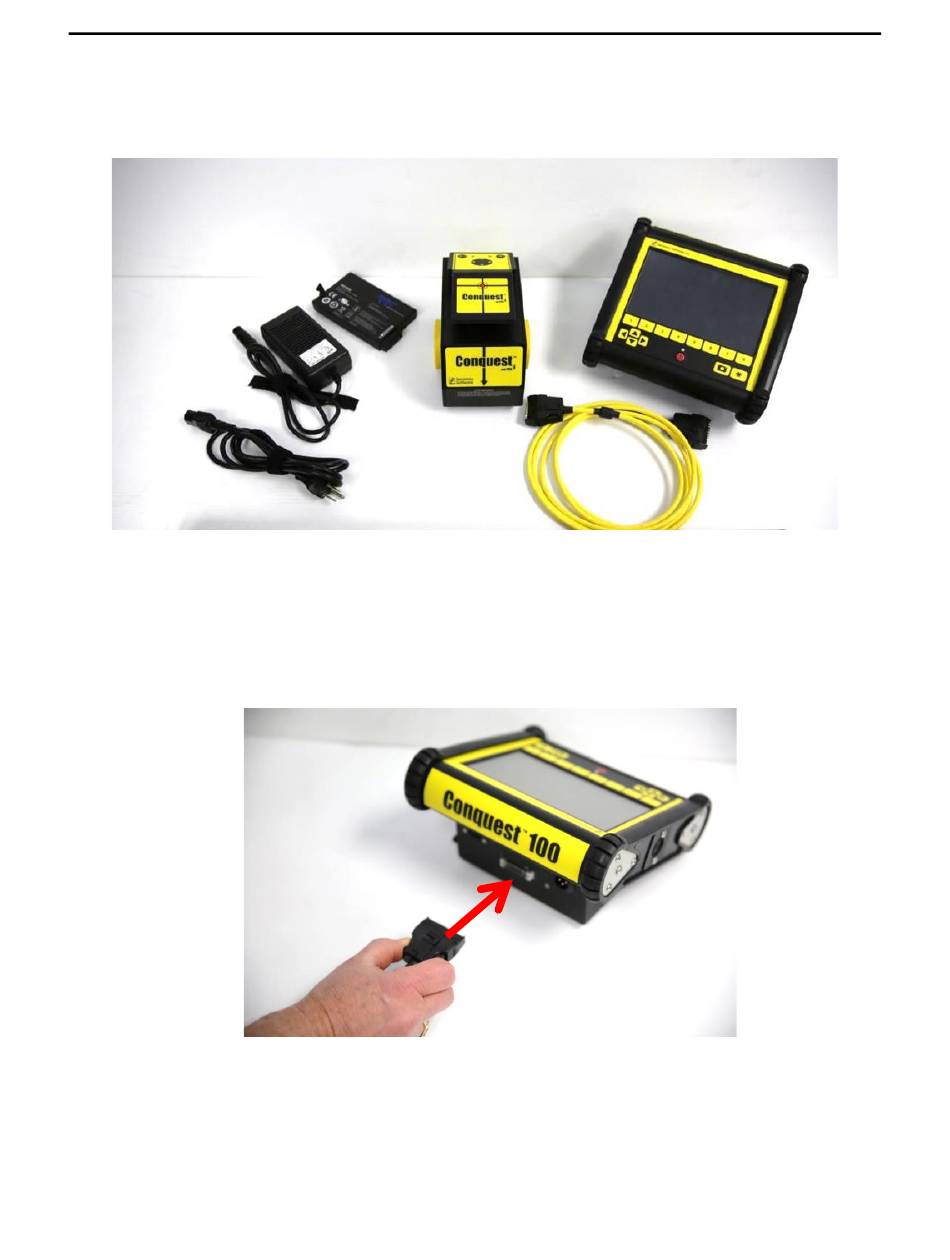

Figure 3-2: Conquest 100 Base system components
Figure 3-3: Sensor cable connection to the Display Unit
Sensor
Cable
18
Assembling Conquest
Display Unit
