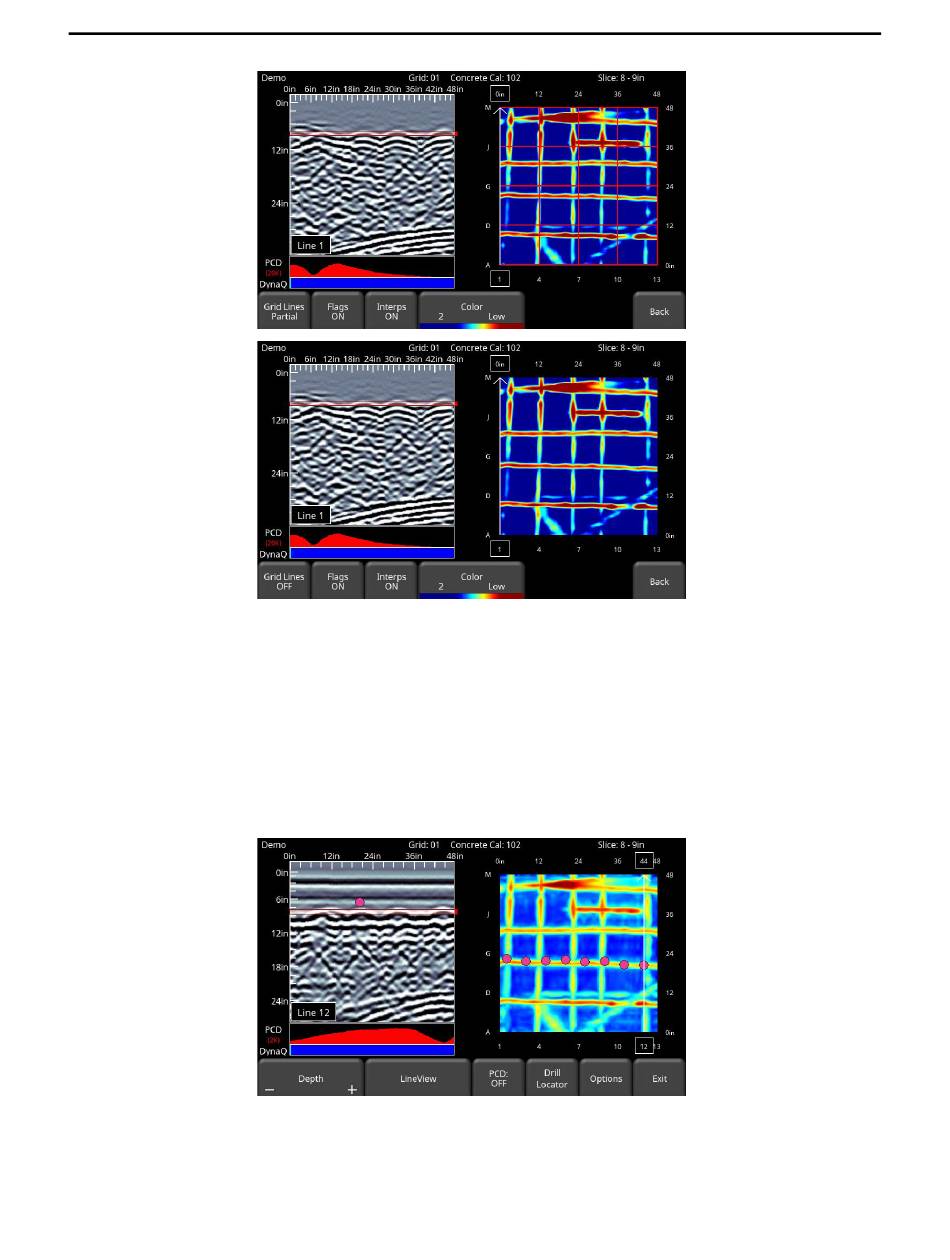

Figure 8-7: With Grid Lines ON (top), the grid lines are superimposed on the grid image. With Grid Lines set to
PARTIAL (middle), lines are only displayed every 12 inches (or 300 mm). The position of the currently displayed
GPR Line on the left is indicated by a white line on the depth slice on the right.
o Flags – any flags that were inserted during grid collection will appear on the
depth slices. Press this button to toggle between displaying Flags (ON) or not
(OFF)
o Interps – any Interps that were inserted during grid collection will appear on the
depth slices. Press this button to toggle between displaying Interps (ON) or not
(OFF). See Figure 8-8.
Figure 8-8: Interps displayed on depth slice
90
SliceView
