Sensor Keypad; Audio - Sensors & Software CONQUEST 100 User Manual

Conquest 100 Tools & Setup

5.2.4 Sensor Keypad

This test will require the user to press all the buttons on the sensor keypad within a 20 second
timeframe (Figure 5-20). Following that, it will also test the audio component and LED lights on
the sensor, as per the directions on the screen.

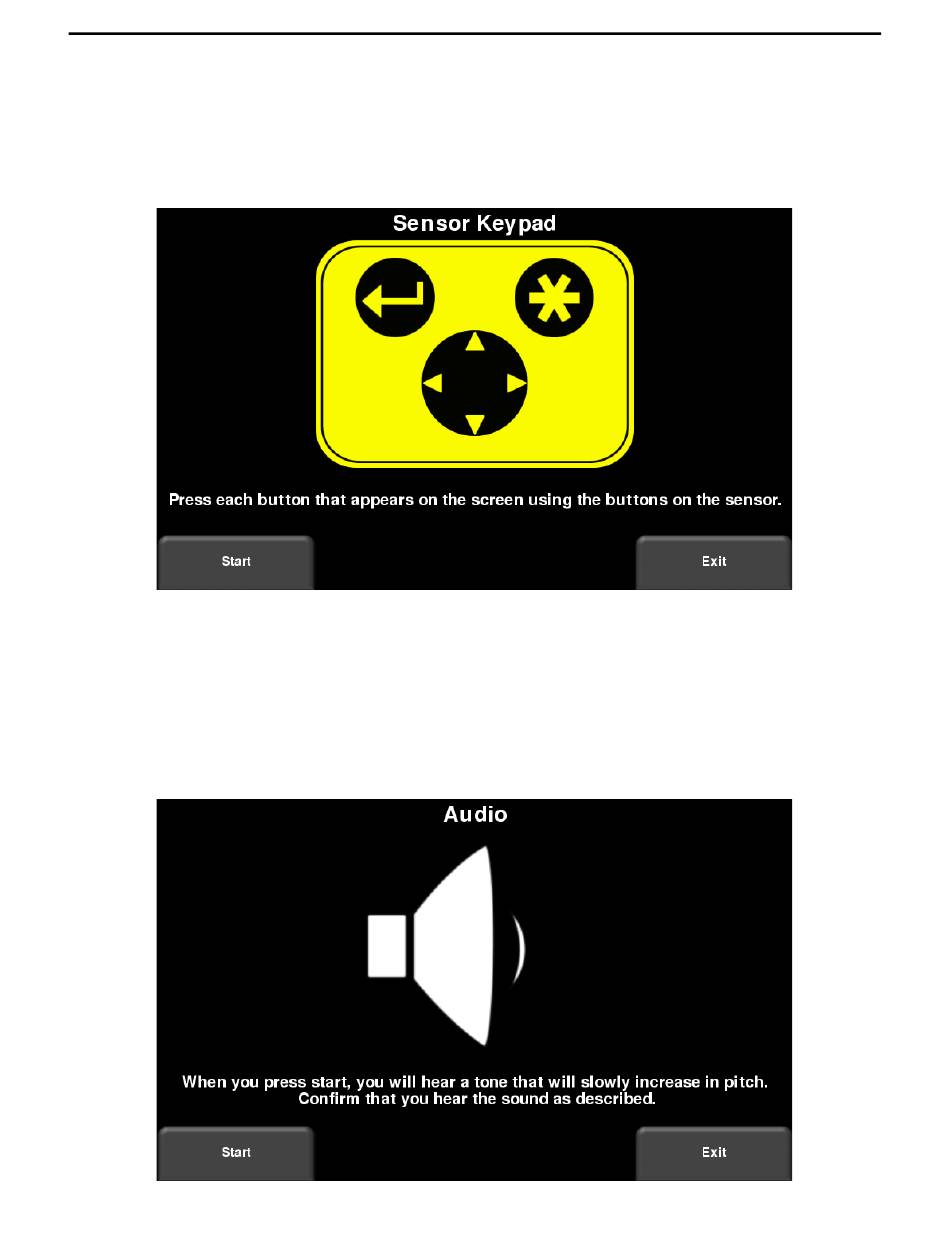

Figure 5-20: Testing the Sensor keypad

5.2.5 Audio

This test ensures that the speaker is operating properly. After starting the test, you should hear
a sound with an increasing pitch (Figure 5-21).
53
