o Color (left side) – change the depth slice color palette, cycles between 1-9
o Color (right side) – cycles between LOW, MEDIUM and HIGH sensitivity
display of the depth slice. A setting of HIGH is useful for revealing weaker
targets in the concrete, like non-metallic conduits which can sometimes be
difficult to see. Setting to LOW will help "clean up" the data and only show the
strong targets, but will hide some of the weak signals (such as conduits), so be
CAREFUL when setting to LOW (Figure 8-5).

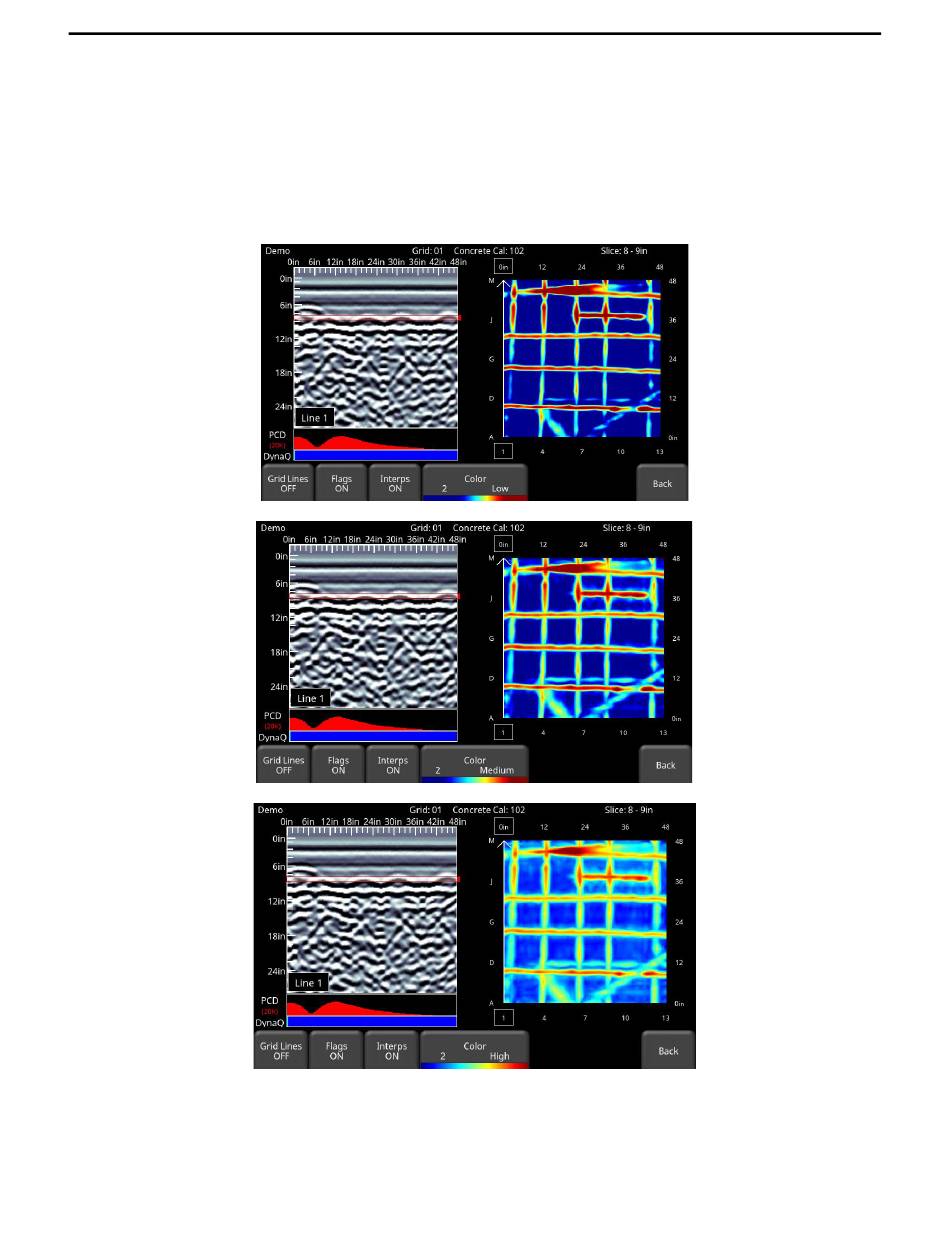

Figure 8-9: The Sensitivity button plots the data with Low, Medium or High Sensitivity (from top image to bottom).
o Back – press this to return to the SliceView main menu.
