5.1.8 Bluetooth

This option allows you to connect a Bluetooth trigger, which can be used to collect data in Line
and Grid Scan modes. The configuration screen is shown in Figure 5-8.
Upon entering this menu, the system will scan for any Bluetooth devices. The color of the
device name indicates the status:
•
Green = Connected
•
Orange = Paired previously, but not currently connected.
•
White = Detected, but not connected
To turn the trigger on, press and hold the center button of the trigger. You will see a blue light
flash once; the trigger is now on. The trigger will automatically shut down after a few moments
of inactivity. At any time to confirm if the trigger is on or off, press the center button briefly. If
the blue light flashes, then it's already on.
To connect a device, it must first be paired to the Display Unit. To put the trigger in pairing
mode, press and hold the small recessed button (Figure 5-9) on the back side using a pen or
other sharp object until the blue light on the front starts flashing rapidly. The device is now in
pairing mode.

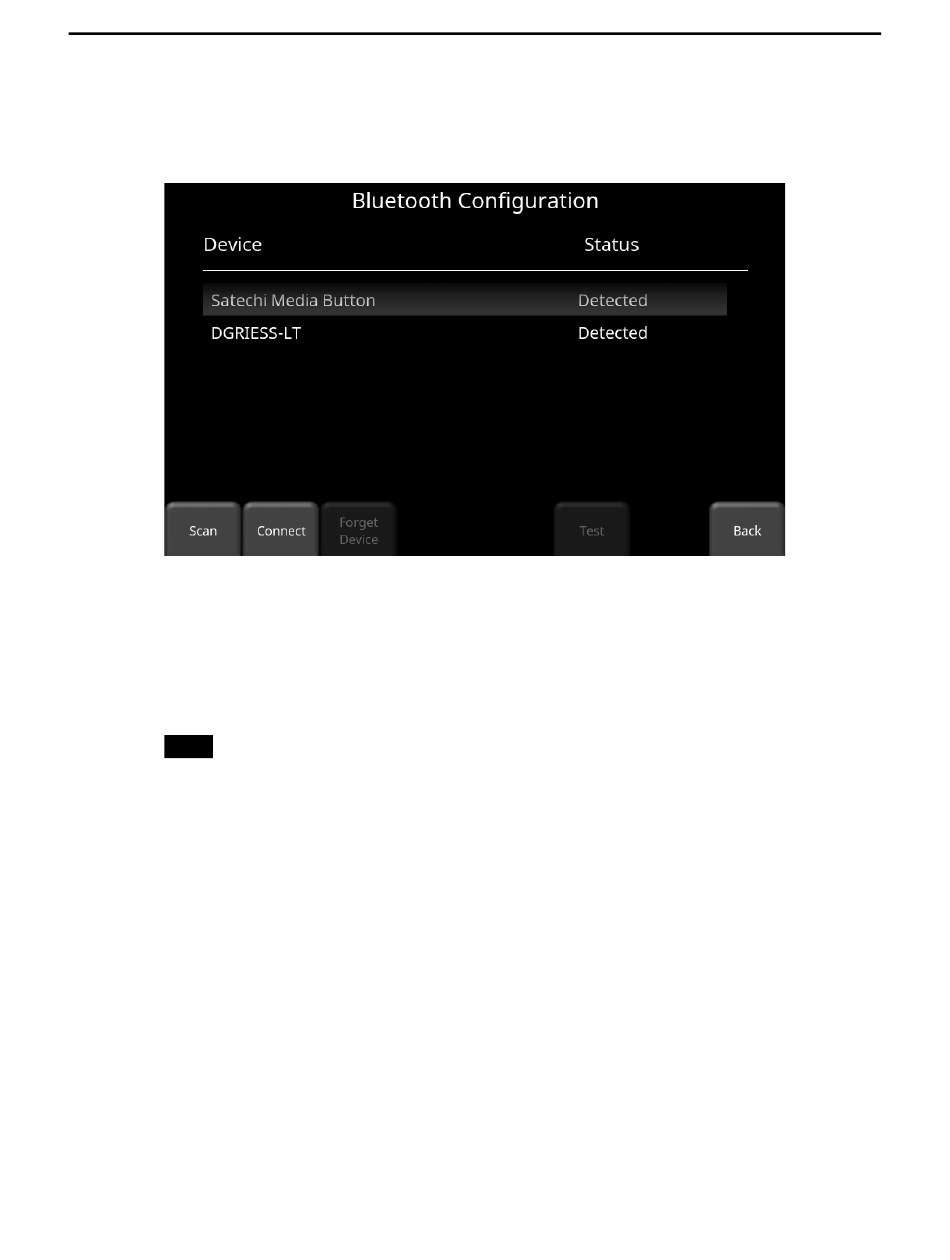

Figure 5-8: Bluetooth menu
