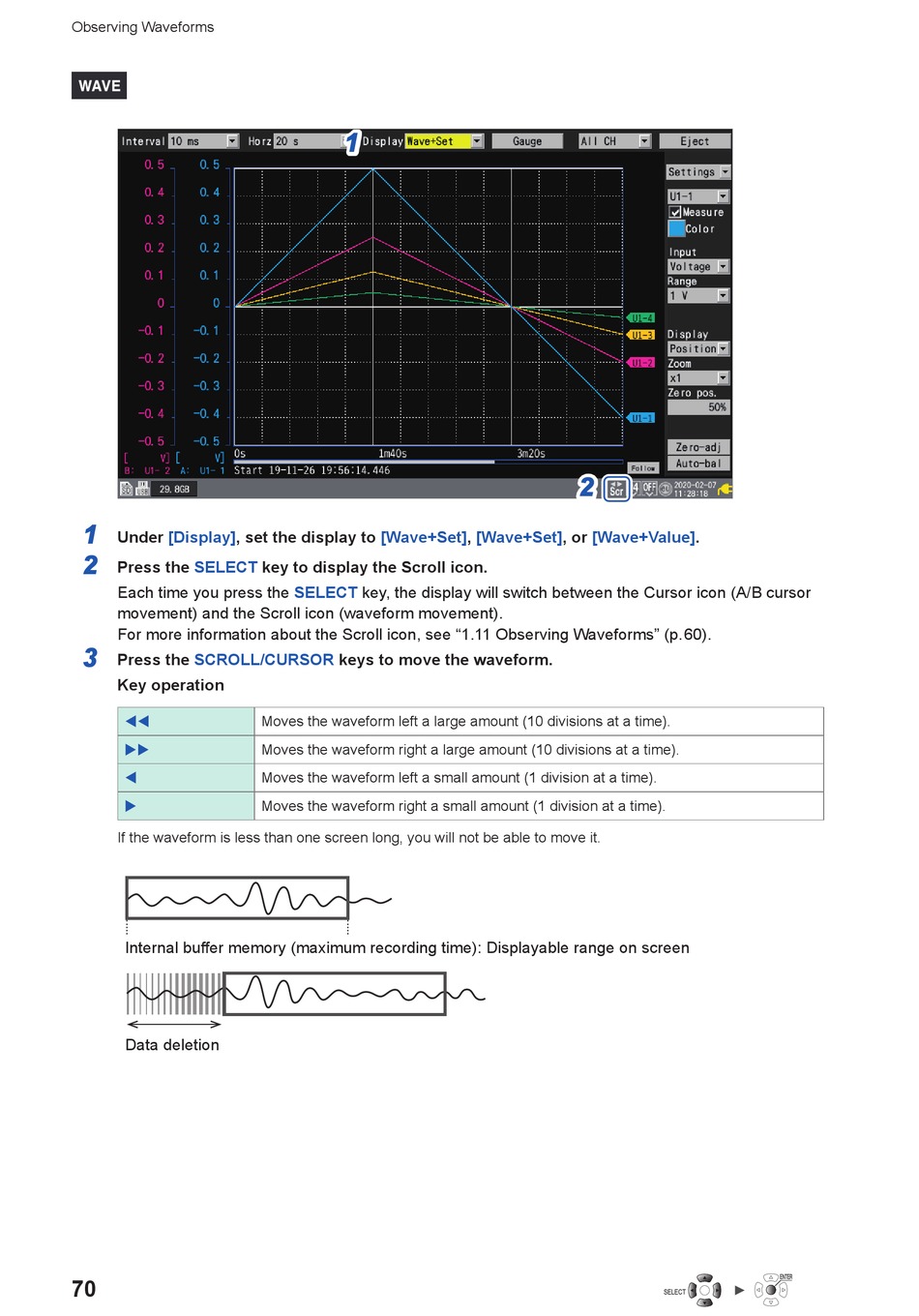

Observing Waveforms
1
Under [Display], set the display to [Wave+Set], [Wave+Set], or [Wave+Value].
2
Press the SELECT
Each time you press the
movement) and the Scroll icon (waveform movement).
For more information about the Scroll icon, see "1.11 Observing Waveforms" (p. 6 0).
3
Press the SCROLL/CURSOR
Key operation




If the waveform is less than one screen long, you will not be able to move it.
Internal buffer memory (maximum recording time): Displayable range on screen
Data deletion
70
1 1
key to display the Scroll icon.
SELECT
key, the display will switch between the Cursor icon (A/B cursor
keys to move the waveform.
Moves the waveform left a large amount (10 divisions at a time).
Moves the waveform right a large amount (10 divisions at a time).
Moves the waveform left a small amount (1 division at a time).
Moves the waveform right a small amount (1 division at a time).
2 2
