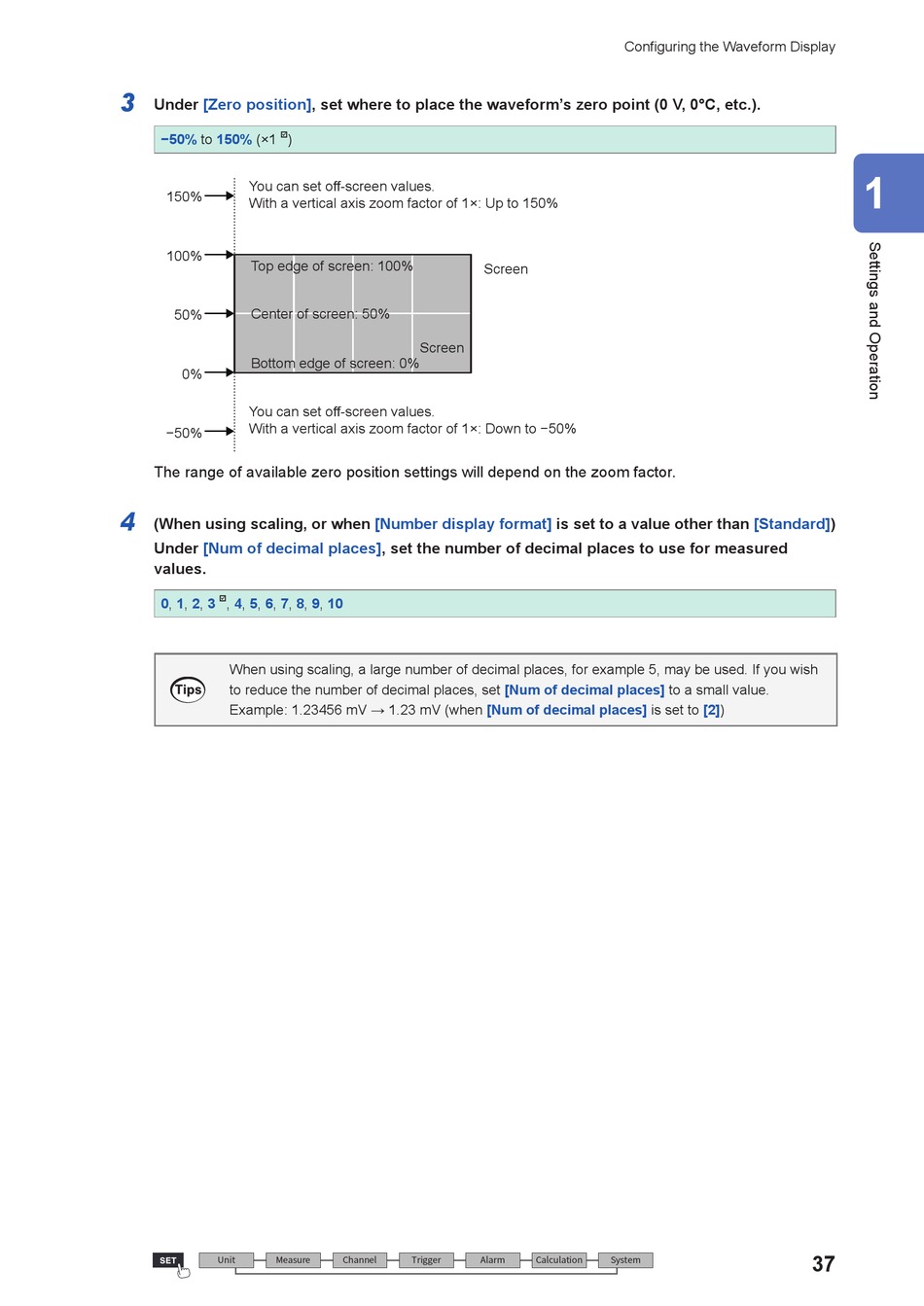

Under [Zero position], set where to place the waveform's zero point (0 V, 0°C, etc.).
−50% to 150% (×1 )

You can set off-screen values.
150%
With a vertical axis zoom factor of 1×: Up to 150%
100%
Top edge of screen: 100%
Center of screen: 50%
50%
Bottom edge of screen: 0%
0%
You can set off-screen values.
With a vertical axis zoom factor of 1×: Down to −50%
−50%
The range of available zero position settings will depend on the zoom factor.
4
(When using scaling, or when
Under [Num of decimal
values.
0, 1, 2, 3 , 4, 5, 6, 7, 8, 9,

When using scaling, a large number of decimal places, for example 5, may be used. If you wish
to reduce the number of decimal places, set
Example: 1.23456 mV → 1.23 mV (when
Unit Measure
Screen
Screen
[Number display format]
places], set the number of decimal places to use for measured
10
[Num of decimal places]
Channel Trigger Alarm
Configuring the Waveform Display
is set to a value other than [Standard])
[Num of decimal places] to a small value.
is set to [2])
