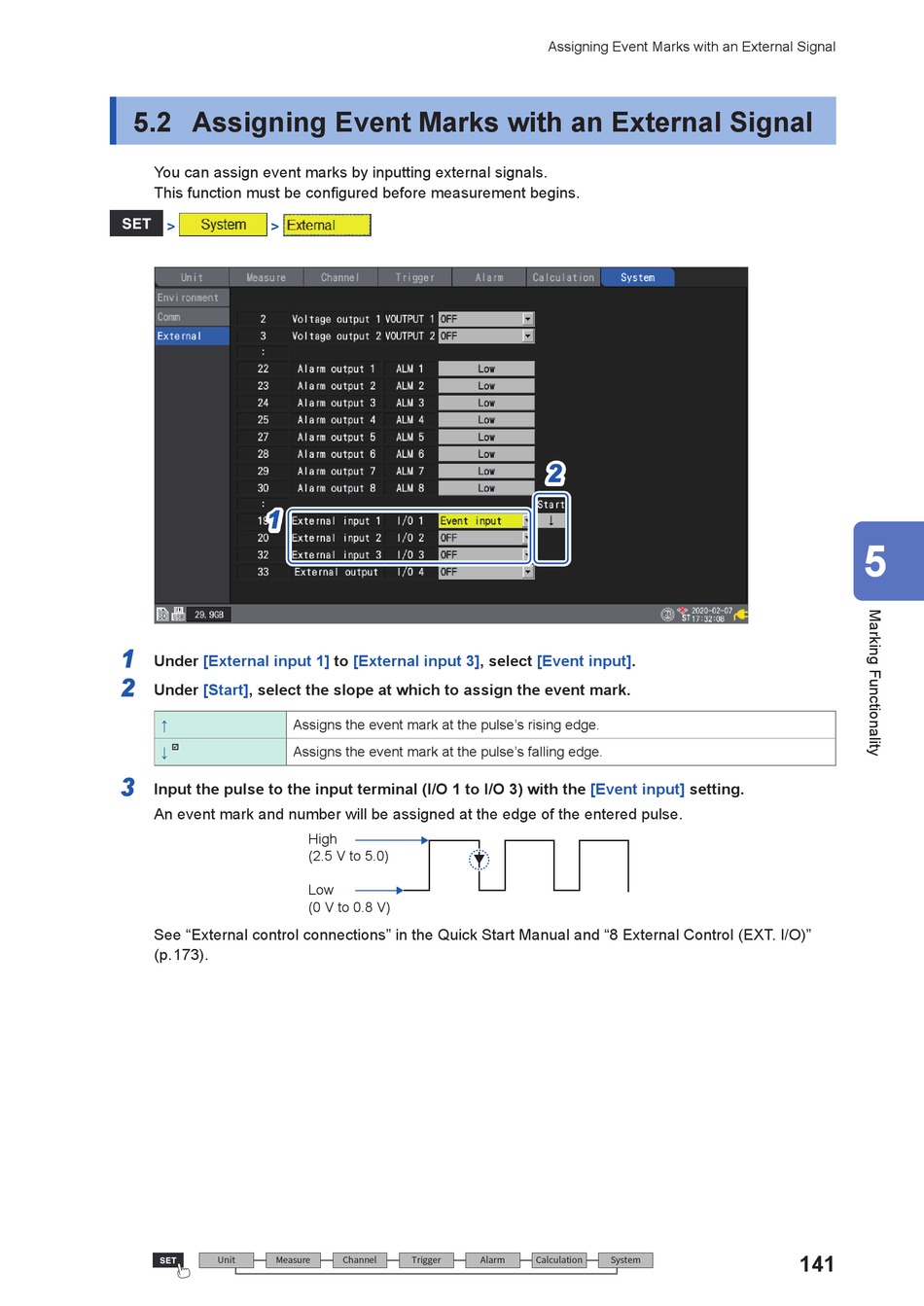

5.2 Assigning Event Marks with an External Signal

You can assign event marks by inputting external signals.
This function must be configured before measurement begins.
> >
1 1
1
Under [External input 1]
2
Under [Start], select the slope at which to assign the event mark.
↑ Assigns the event mark at the pulse's rising edge.
↓ Assigns the event mark at the pulse's falling edge.

3
Input the pulse to the input terminal (I/O 1 to I/O 3) with the
An event mark and number will be assigned at the edge of the entered pulse.
See "External control connections" in the Quick Start Manual and "8 External Control (EXT. I/O)"
(p. 1 73).
Unit Measure
to [External input 3], select
High
(2.5 V to 5.0)
Low
(0 V to 0.8 V)
Channel Trigger Alarm

Assigning Event Marks with an External Signal

2 2
[Event input].
[Event input] setting.
