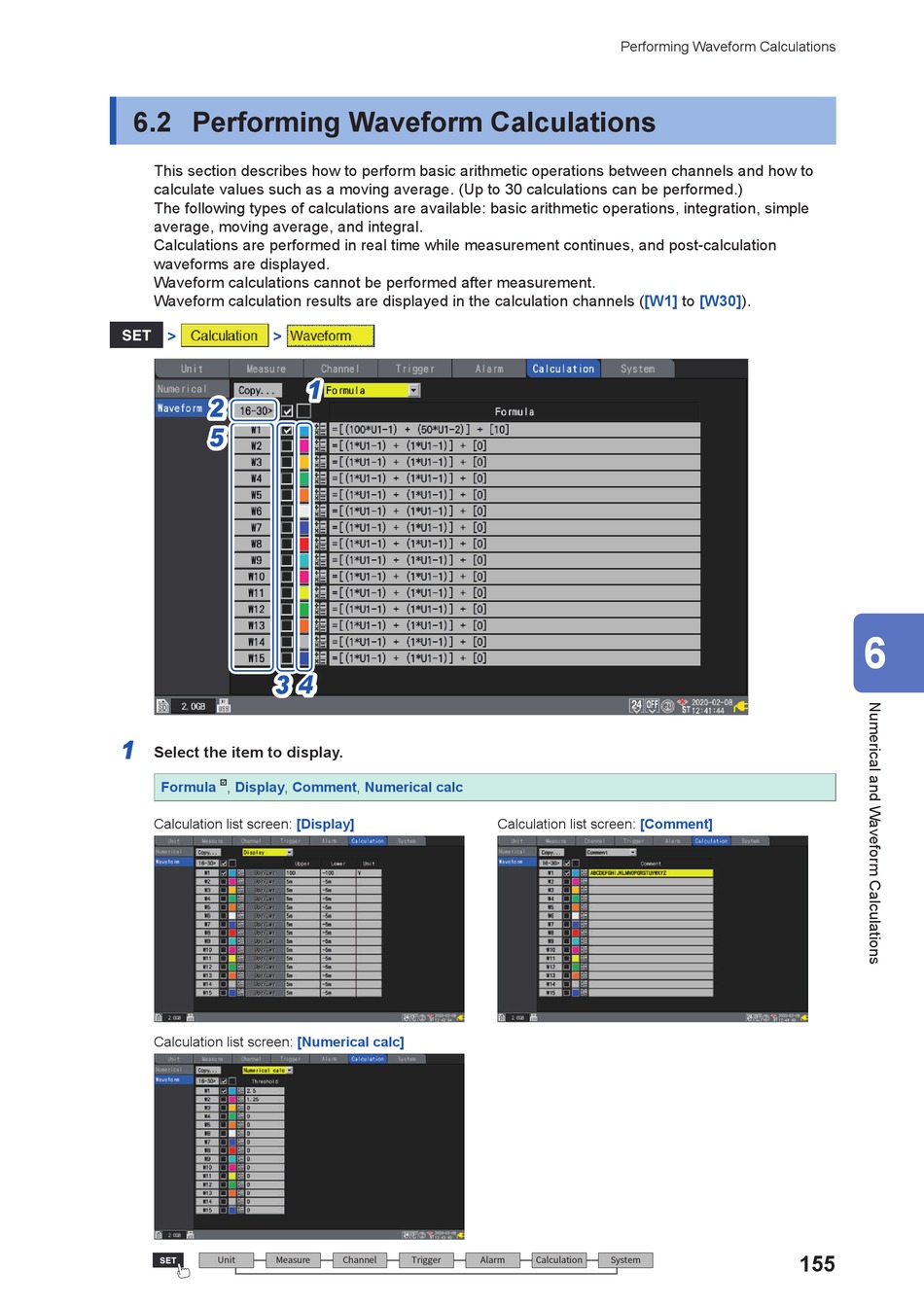

6.2 Performing Waveform Calculations

This section describes how to perform basic arithmetic operations between channels and how to
calculate values such as a moving average. (Up to 30 calculations can be performed.)
The following types of calculations are available: basic arithmetic operations, integration, simple
average, moving average, and integral.
Calculations are performed in real time while measurement continues, and post-calculation
waveforms are displayed.
Waveform calculations cannot be performed after measurement.
Waveform calculation results are displayed in the calculation channels
> >
2 2
5 5
3 3 4 4
