Hioki MEMORY HiLOGGER LR8450 Instruction Manual page 22

Configuring Input Channels

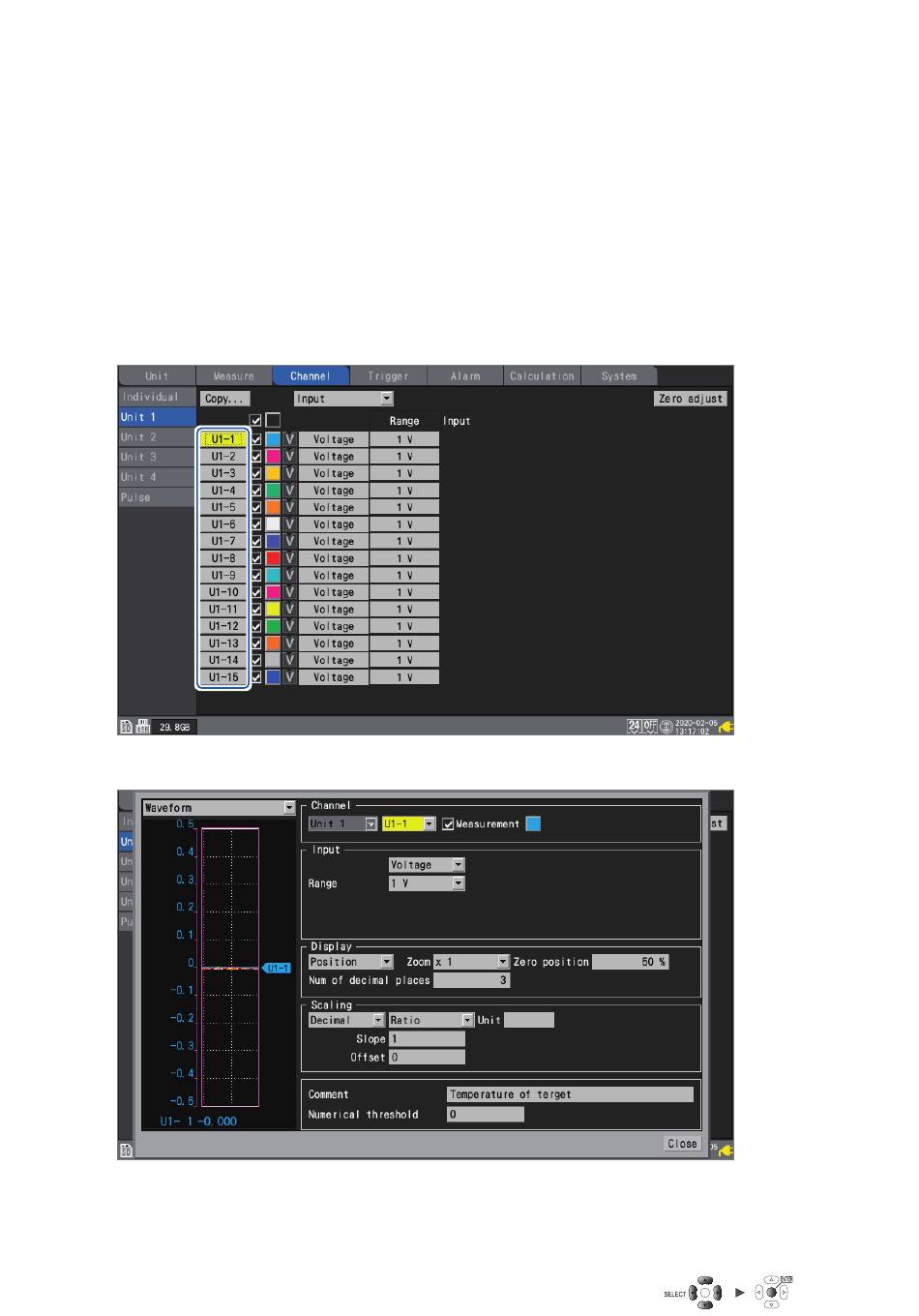

Settings list screen
This screen displays a list of settings for each module.
For more information about the settings list screen, see "1.7 Configuring Channels in a List" (p. 5 0).
The following settings can be configured on the settings list screen:
• Measurement on/off
• Waveform display colors
• Input, display, scaling, comment, and numerical value calculation settings (Available settings
depend on the type of module.)
• Zero-adjustment (U8554 and LR8534: auto balancing)
Select a channel number and press the
You can also configure settings on the individual settings window.
Individual settings window (close with the
18
ENTER key to display the individual settings window.
ESC key)
