Data That Can Be Saved and Loaded

3.1 Data That Can Be Saved and Loaded

When you save data on an SD Memory Card or USB Drive, the
[LR8450] folder.
will be created.

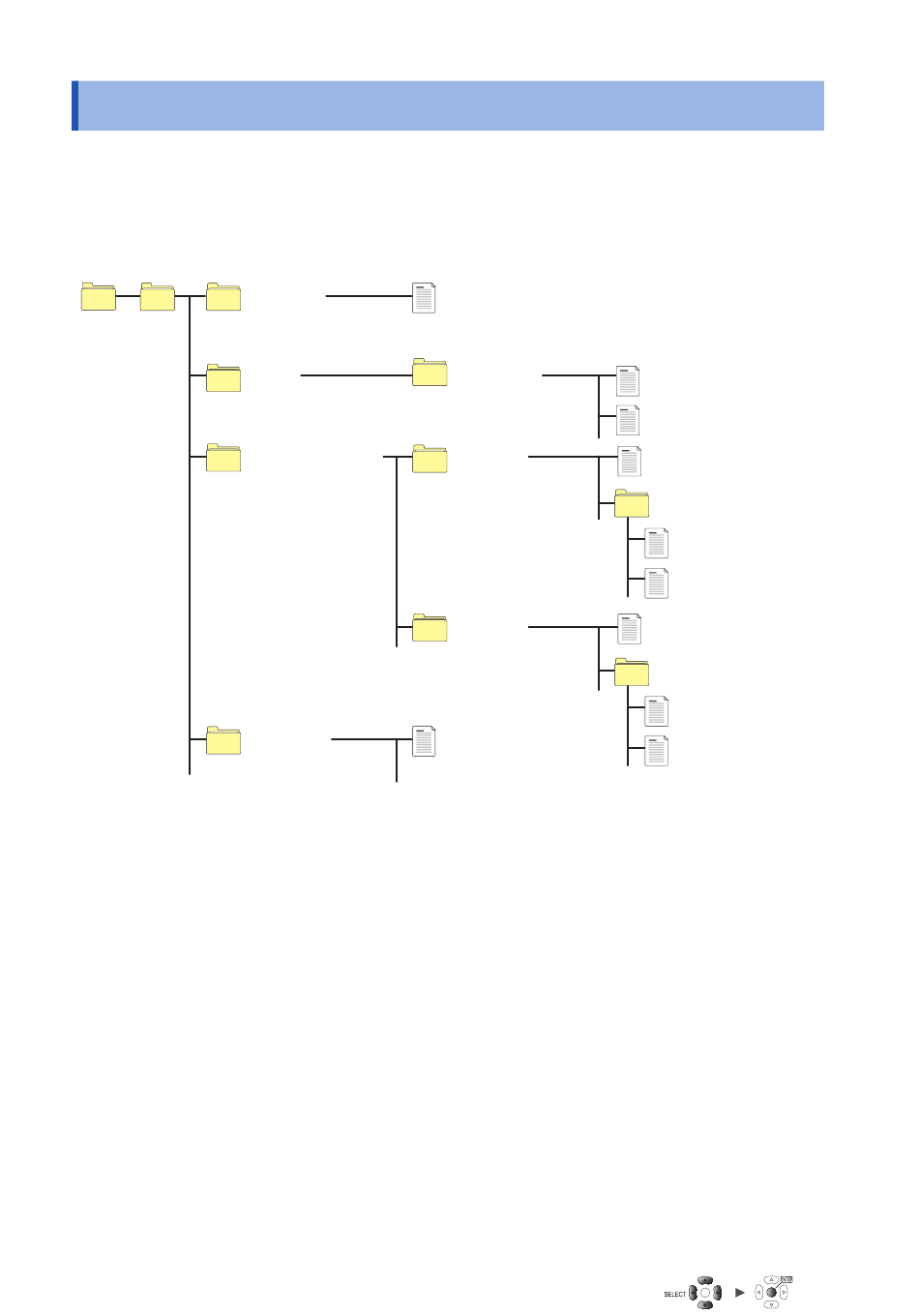

Files are saved in folders as shown in the following diagram:
HIOKI LR8450
(Folder containing settings
data)
(Folder containing waveform
data)
(Folder containing numerical
calculation results)
(Folder containing screen
images)
*1: When the calculation range is set to
[PART]
will be added. Calculation results from the start point to the stop point will be saved in
the [ALL] folder, while calculation results for each segment will be saved in the
*2: Created when saving operation is set such that each calculation is saved in its own file.
When saving files without specifying a filename
The following filenames will be used:
• Automatically saved waveform data: AUTO****.xxx
• Automatically saved numerical calculation result: AUTO****.xxx
• Manually saved settings data: CONF****.SET
• Manually saved waveform data: WAVE****.xxx
• Manually saved numerical calculation results: MEAS****.xxx
• Manually saved screen image data: SCR****.PNG
[****] indicates a number (0001 to 9999).
[.xxx] indicates the file's extension (.MEM, .CSV, .TXT).
