Assigning Event Marks When Alarms Occur

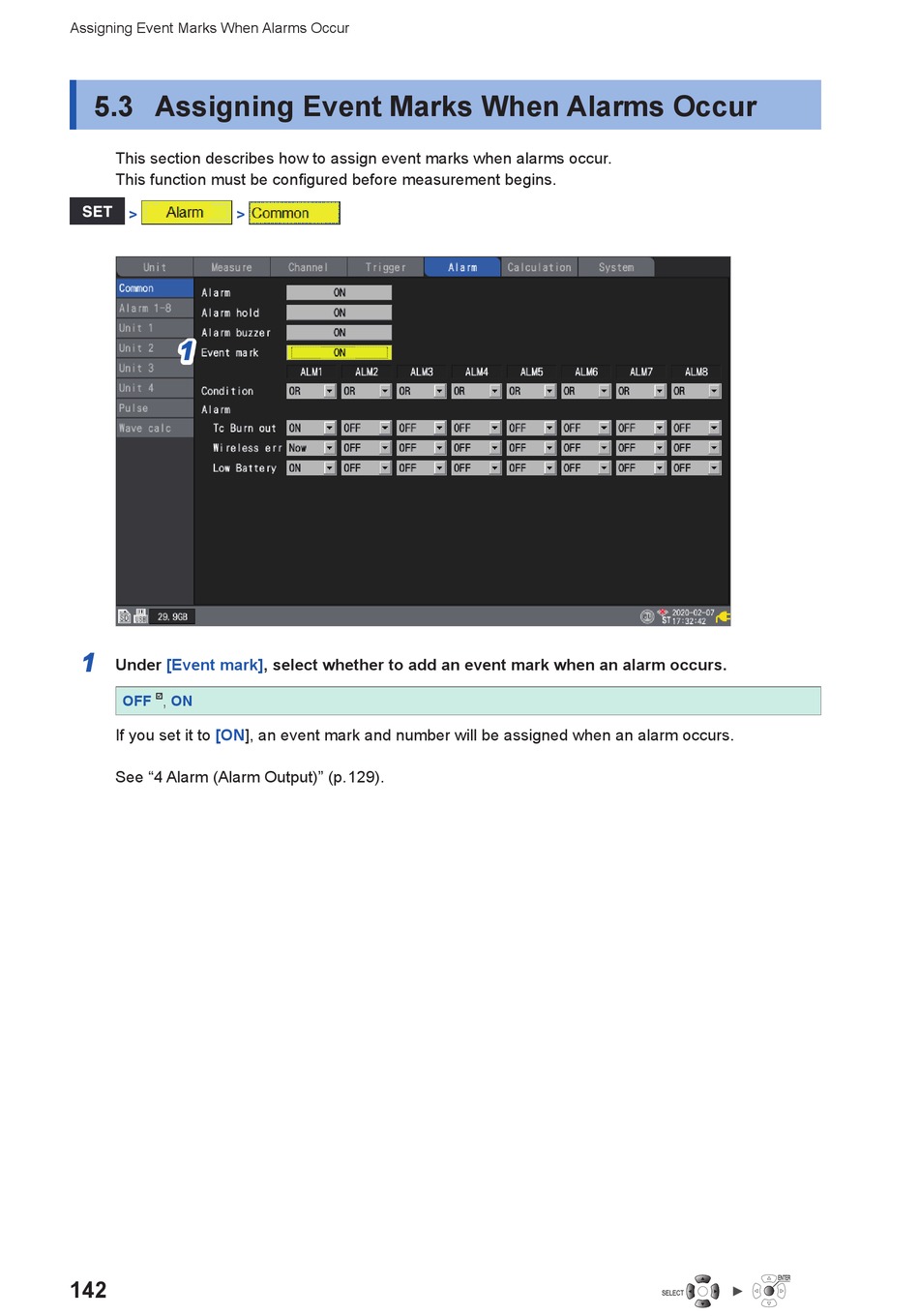

5.3 Assigning Event Marks When Alarms Occur

This section describes how to assign event marks when alarms occur.
This function must be configured before measurement begins.
> >
1 1
1
Under [Event mark], select whether to add an event mark when an alarm occurs.
OFF  , ON
If you set it to [ON], an event mark and number will be assigned when an alarm occurs.
See "4 Alarm (Alarm Output)" (p. 1 29).
142
