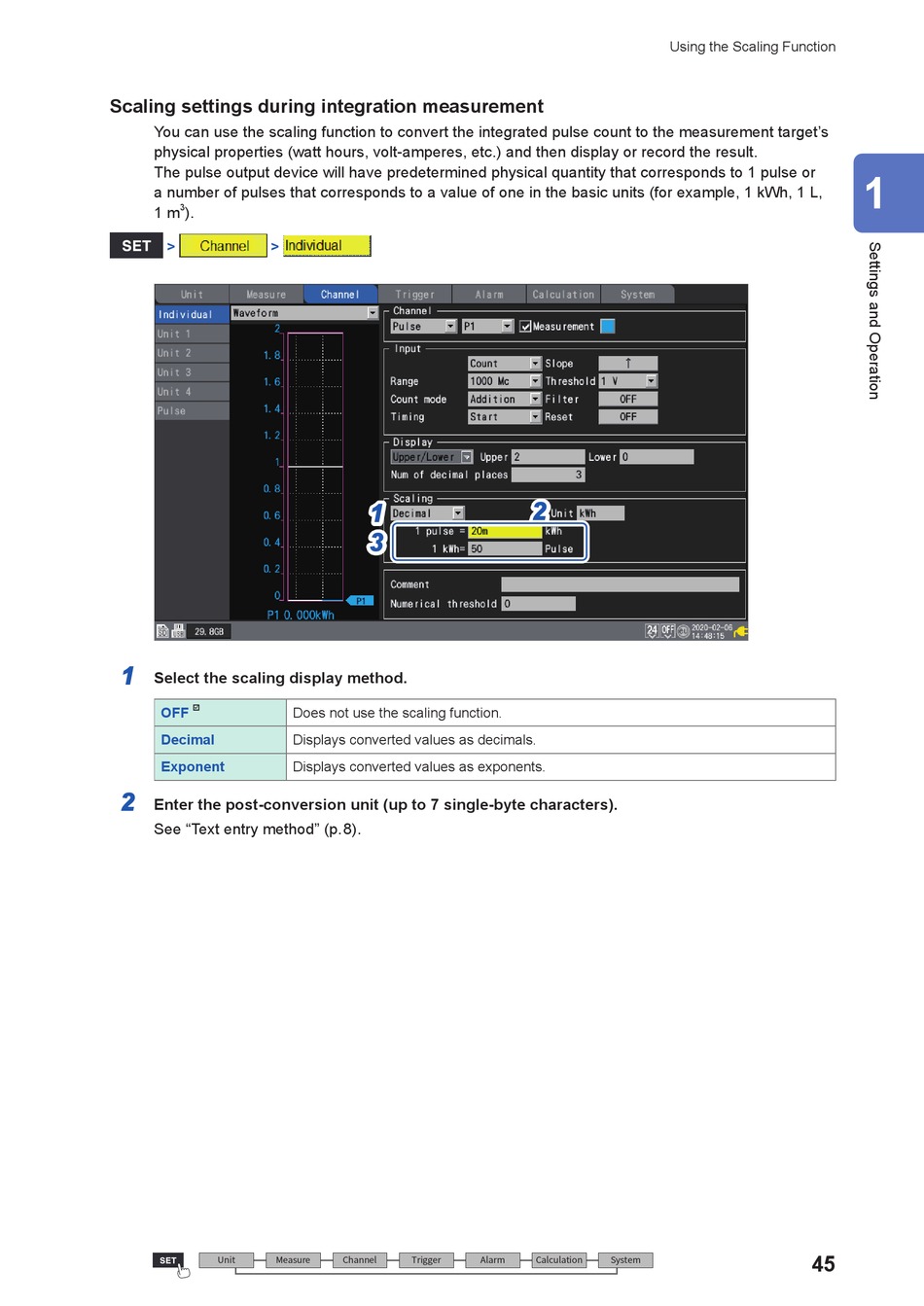

Scaling settings during integration measurement
You can use the scaling function to convert the integrated pulse count to the measurement target's
physical properties (watt hours, volt-amperes, etc.) and then display or record the result.
The pulse output device will have predetermined physical quantity that corresponds to 1 pulse or
a number of pulses that corresponds to a value of one in the basic units (for example, 1 kWh, 1 L,
3
1 m ).
> >
1
Select the scaling display method.
OFF 
Decimal
Exponent
2
Enter the post-conversion unit (up to 7 single-byte characters).
See "Text entry method" (p. 8 ).
Unit Measure
1 1
3 3
Does not use the scaling function.
Displays converted values as decimals.
Displays converted values as exponents.
Channel Trigger
2 2
Alarm Calculation System
Using the Scaling Function
