Elephant Robotics myCobot Pro 600 User Manual page 89

5.1.3.3 Input and output configuration
The robot system has a total of 6 digital input signals and 6 digital output
signals. As shown in Figure 3-14, the input and output signals can be configured
and monitored in this window, and the output signals can be forcibly output. IO
configuration files can also be saved and loaded on this page. As shown in Figure
3-15, it is an input/output interface description corresponding to the page shown
in Figure 3-14.

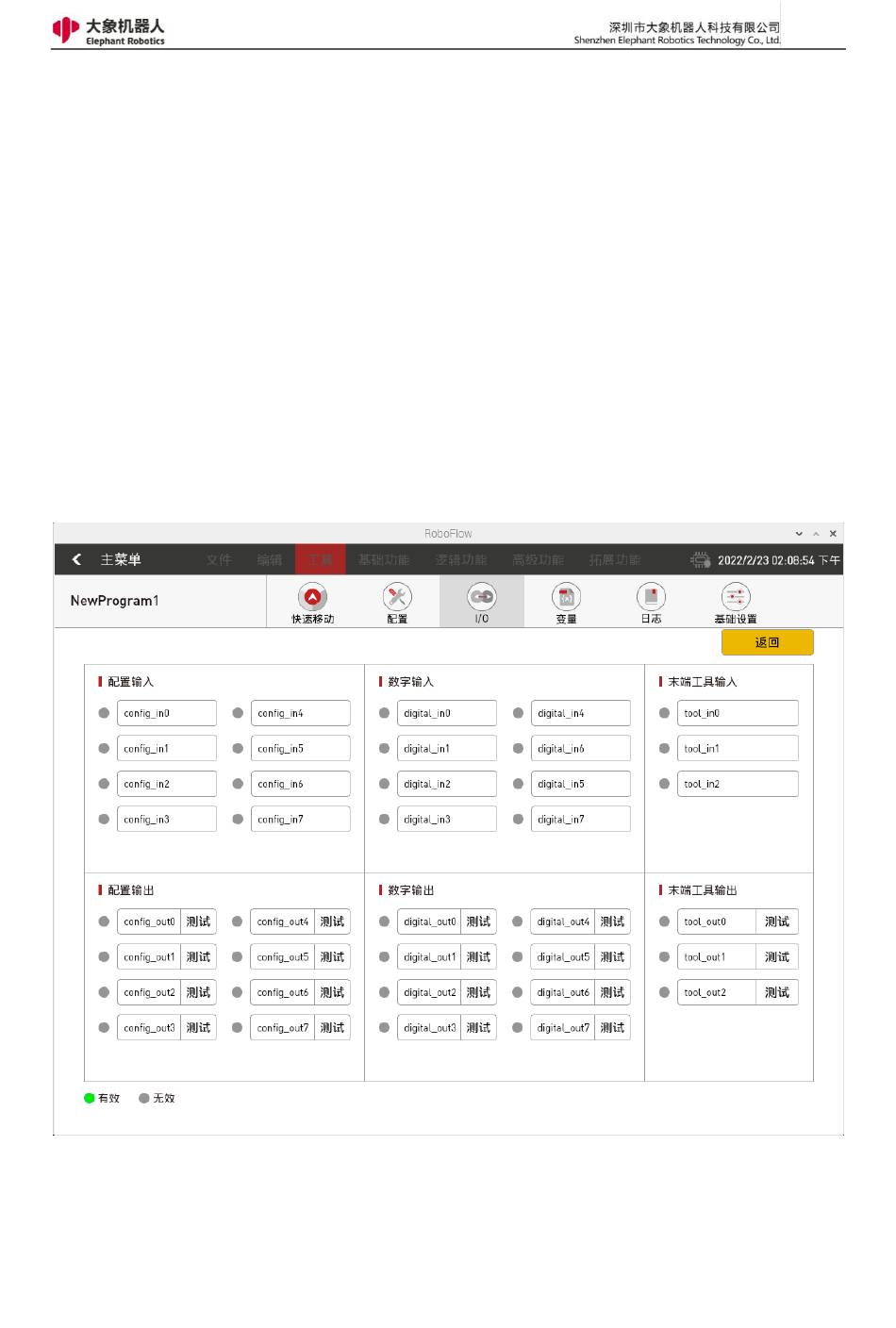

Figure 3- 14 Input and output configuration
89
