the "Logout" button to log out.
5.1.2.3 Run Program

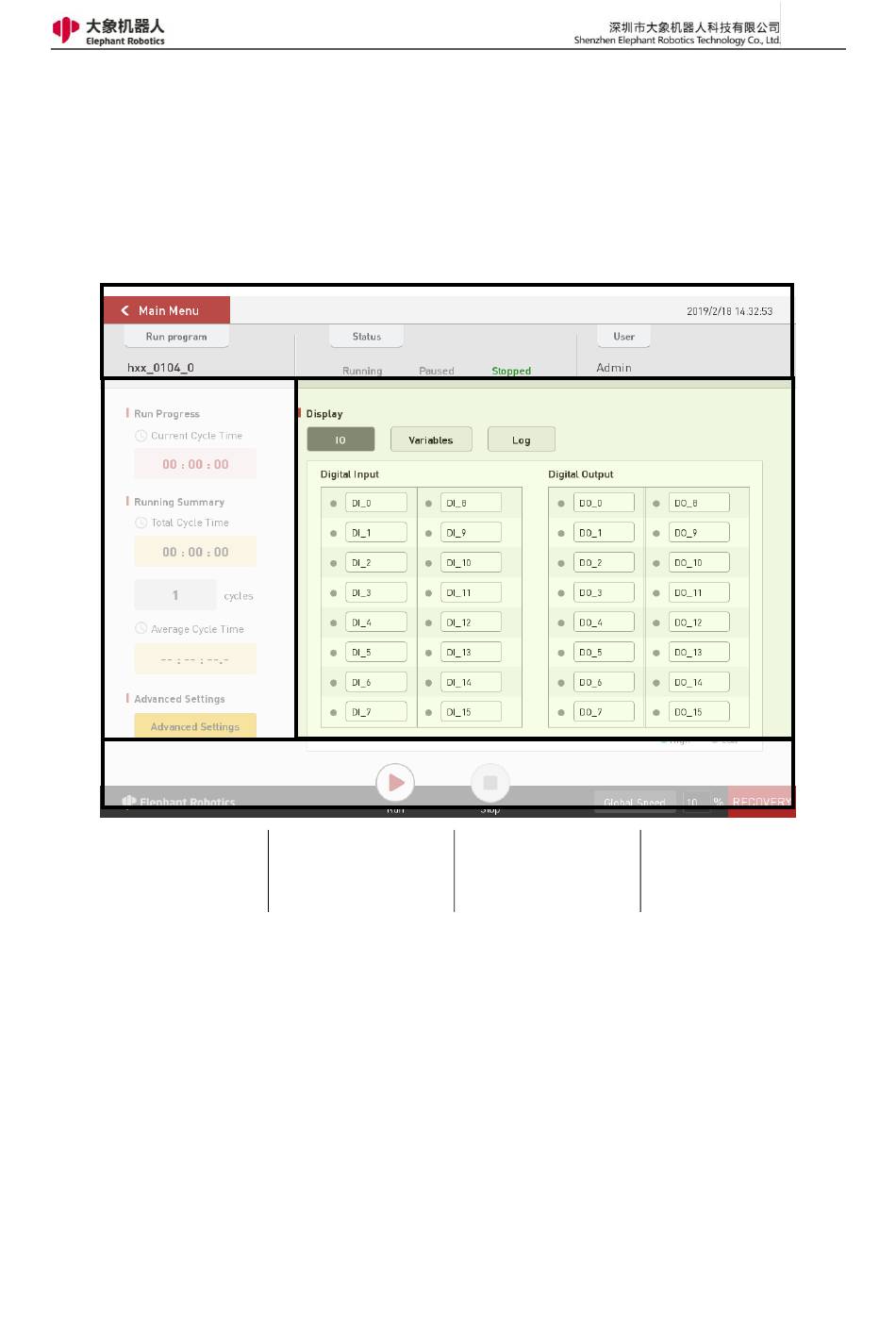

If the user selects "Run Program" in the main menu, it will enter the Run
Program window. The running program window of the RoboFlow operating
system is shown in Figure 2-3.
①- Running program
basic information
Users can enter the program window by loading the program they need to run. In
this window, users can:
1) Get the basic information of the current (ready) running program, including
program name, running status, user type.
2) Understand the statistical information of the current running program, such
as the total number of runs and the rhythm, etc.
3) Read the relevant information of the current running program through the
display window, such as IO, variables, logs, etc.
②
②- Operational
statistics
Figure 2- 3 Program editing window option
③- Display window
57
①
③
④
④- Program run
control bar
