Elephant Robotics myCobot Pro 600 User Manual page 76

The user can set the system time on the current page. If the "24-hour system"
is not checked, the time display format defaults to 12-hour system.
7，Touch screen calibration
Figure 2-27 shows the touch screen calibration instructions. The user clicks
on "Start to Calibrate" to enter the calibration interface. The calibration interface
will appear in sequence with four circles, as shown in the figure. The user needs
to click the center of the circle with a touch pen, and each time the button is
clicked, the next circle will appear until all four circles appear. A pop-up window
will appear indicating that the calibration is complete, and you can exit the
calibration screen after confirming the pop-up.
If the calibration times out or the steps are wrong, a pop-up prompts the

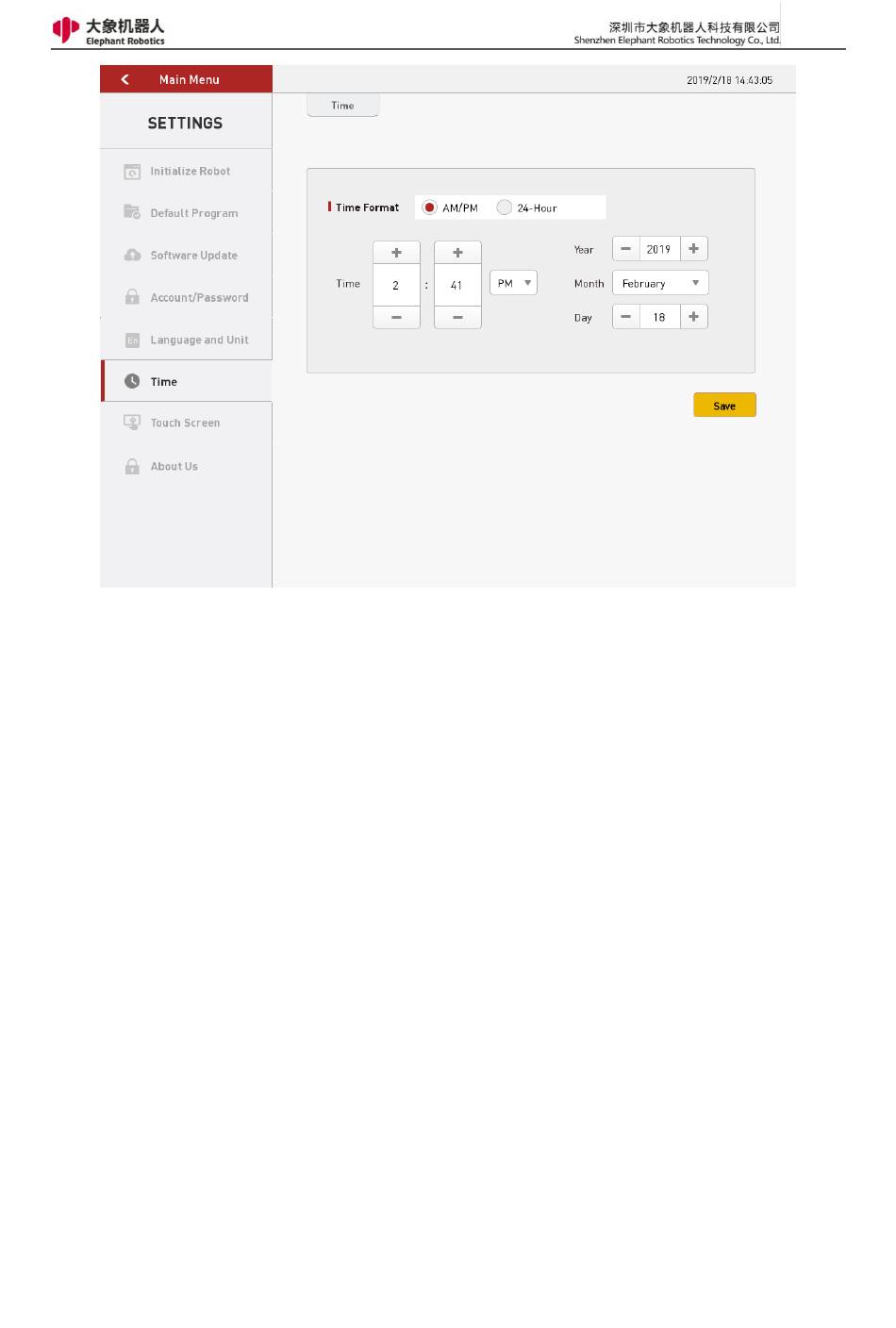

Figure 2- 26 Time
76
