4.2 Electrical Interfaces of Robot Arm End

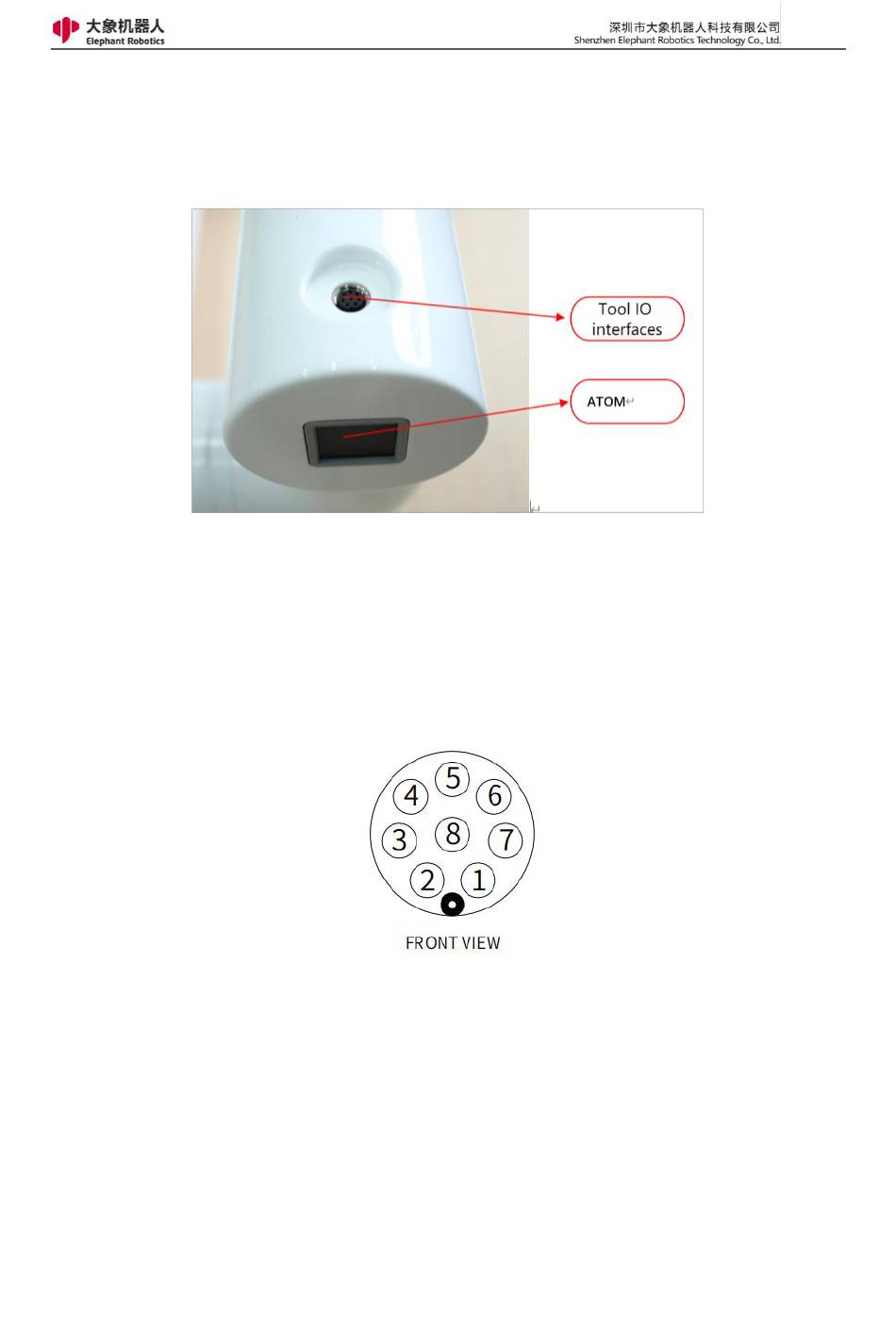

1 Figure 4-5 shows the side interfaces at the end of the robot arm:

Fig. 4-5 Electrical Diagram of Robot Arm End

1） Tool I/O interface:

Here's the tool I/O drawing as shown in the figure, with the Mycobot Pro600

robot providing one input and two outputs.

Tool I/O Drawing
