pop-up window appears, and the program stops running.
5.1.4.3.5 Sender
If TCP/IP communication is to be performed, the robot system must set the
IP and port number as a client or server to communicate with other devices.
The sender allows the user to set up a TCP/IP connection. Figure 4-30 shows
the specific configuration page of the Sender instruction.
If the robot system acts as a client, the IP address filled in is the IP address
of the external device of the server, and the port number corresponds to the port
number assigned to the robot system by the server. When the server is in the state
of monitoring, it can communicate with the server by clicking the "connection"
button.

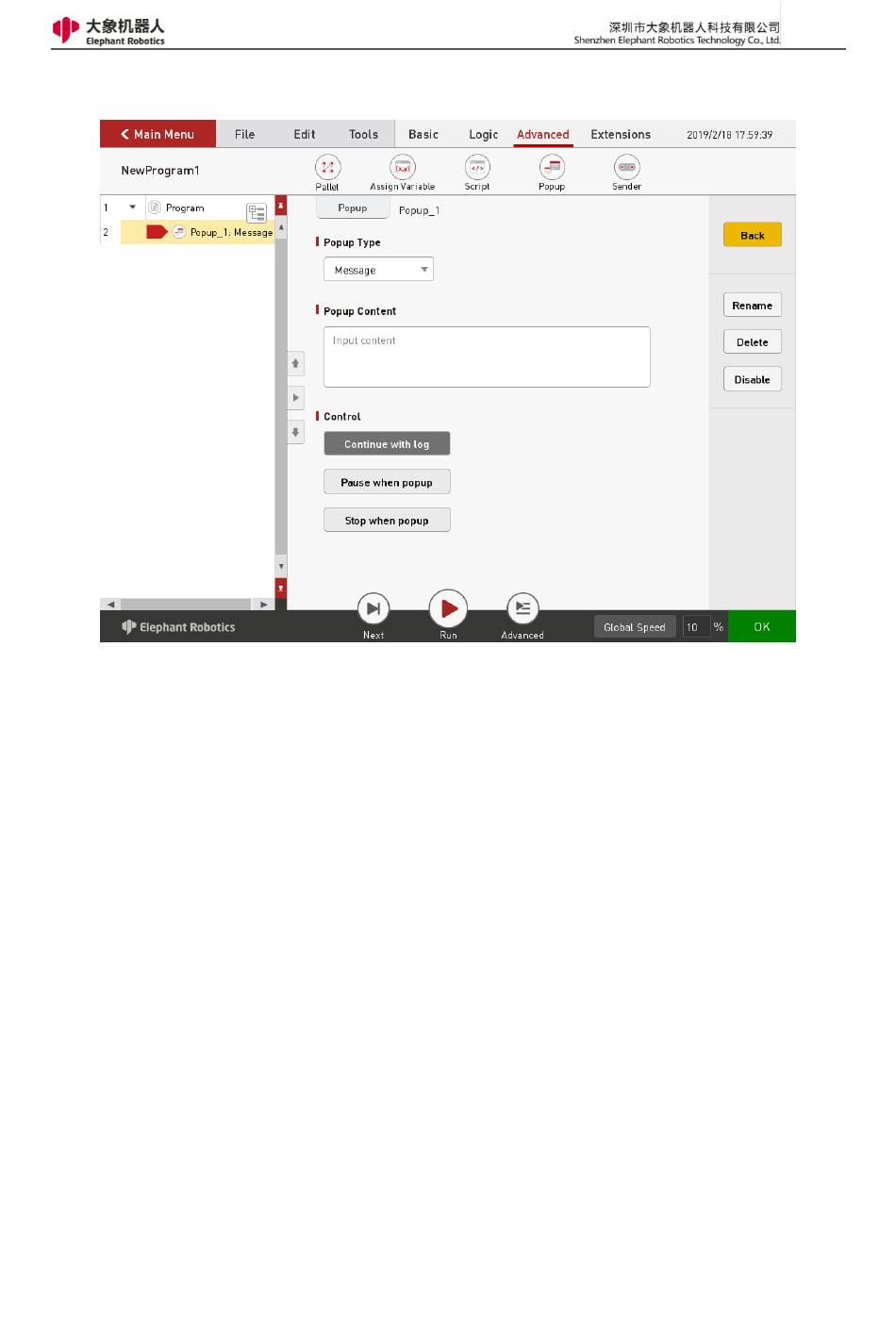

Figure 4- 29 Popup
