4 Interface Specifications

4.1 Base Electrical Interfaces

4.1.1 Introduction to Base Electrical Interfaces

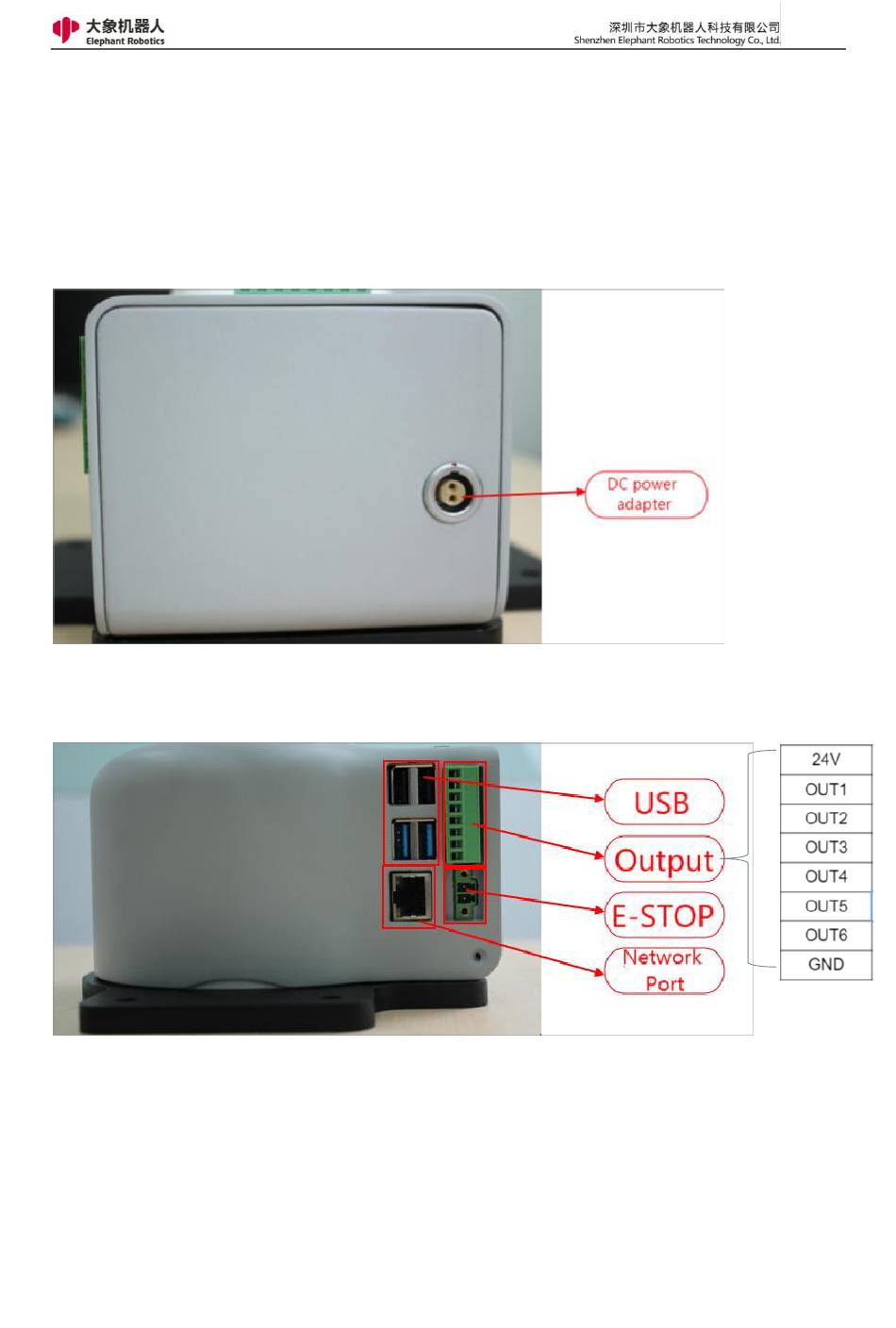

1 Figure 4-2 shows the electric in the front of base:
Fig. 4-1 Front View of the Base
2 Figure 4-2 shows the interfaces on the left side of the base:
Fig. 4-2 Left Side View of the Base
46
