Elephant Robotics myCobot Pro 600 User Manual page 26

2.3.3.2 Power On
After successful login, the main menu is displayed, as shown in Figure 2-8.
On the main menu interface, if you select "Configuration Center", the page
shown in Figure 2-9 is displayed (not powered on yet).
When ensuring that the emergency stop knob is not pressed, you can click
the "Start Robot" button as shown in Figure 2-9. The interface will change at this
point, and the "Being Powered On" icon will be displayed, as shown in Figure 2-
10. If the power-on is successful, the "Normal State" will be displayed, as shown
in Figure 2-11. If it fails, please check whether any steps are missing.
After completing the previous step, you can click the "< Main Menu" button
in the Configuration Center to return to the main menu.

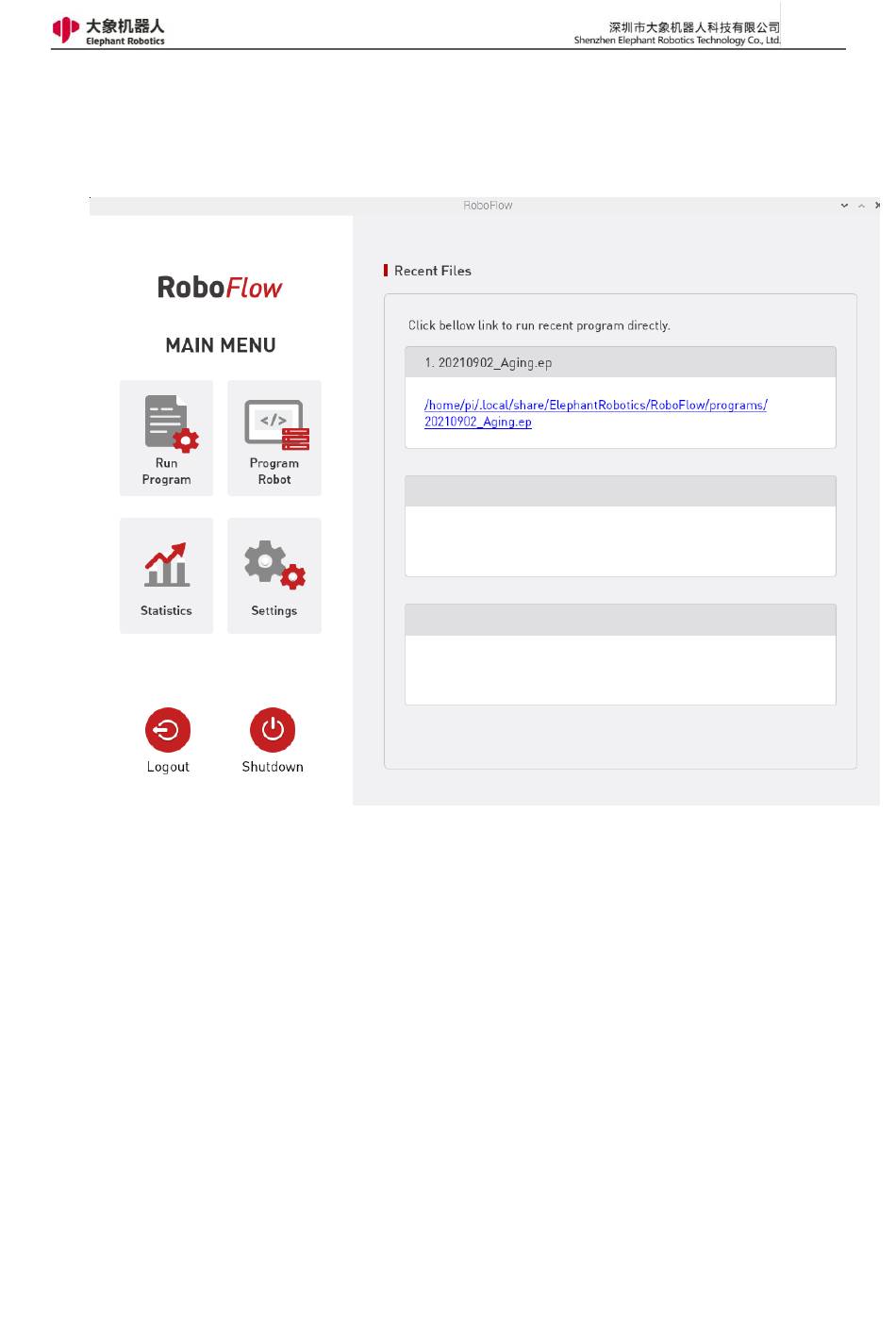

Fig. 2-8 Main Menu
26
