4 .9 .2 N o g a Mi n i c o o l
Low-pressure atomizer for thin oils and liquids with a targeted range of action.
In many manufacturing processes, the atomization of oils as lubricants and coolants is essential.
With Noga-Minicool the avoidance of operating errors is ensured by automation and economical
use of lubricants.
Easy to use
The liquid hose is placed in or connected to a pressure less container. The Noga atomizer already
responds at 2 bar overpressures. Via a throttle valve (see figure), the ratio of air / liquid quantity can
be finely dosed.
Full flexibility
The atomizer can be attached to any point on the machine and can be specifically aligned to the
workpiece by means of the flexible plastic hose. A built-in check valve in the hose prevents the
liquid from running back into the bottle. The spray angle is infinitely adjustable from 10° to 30°.
Little effort - high performance
The higher the pressure, the finer the spray mist becomes. The Noga Mini Cool works with an
operating pressure of 2 - 6 bar. In the case of upcoming compressed air, it is immediately atomized.
The atomizer works permanently – but always with well-dosed quantities. In the center of the air
jet, the liquid is supplied economically and evenly.
1
2
3

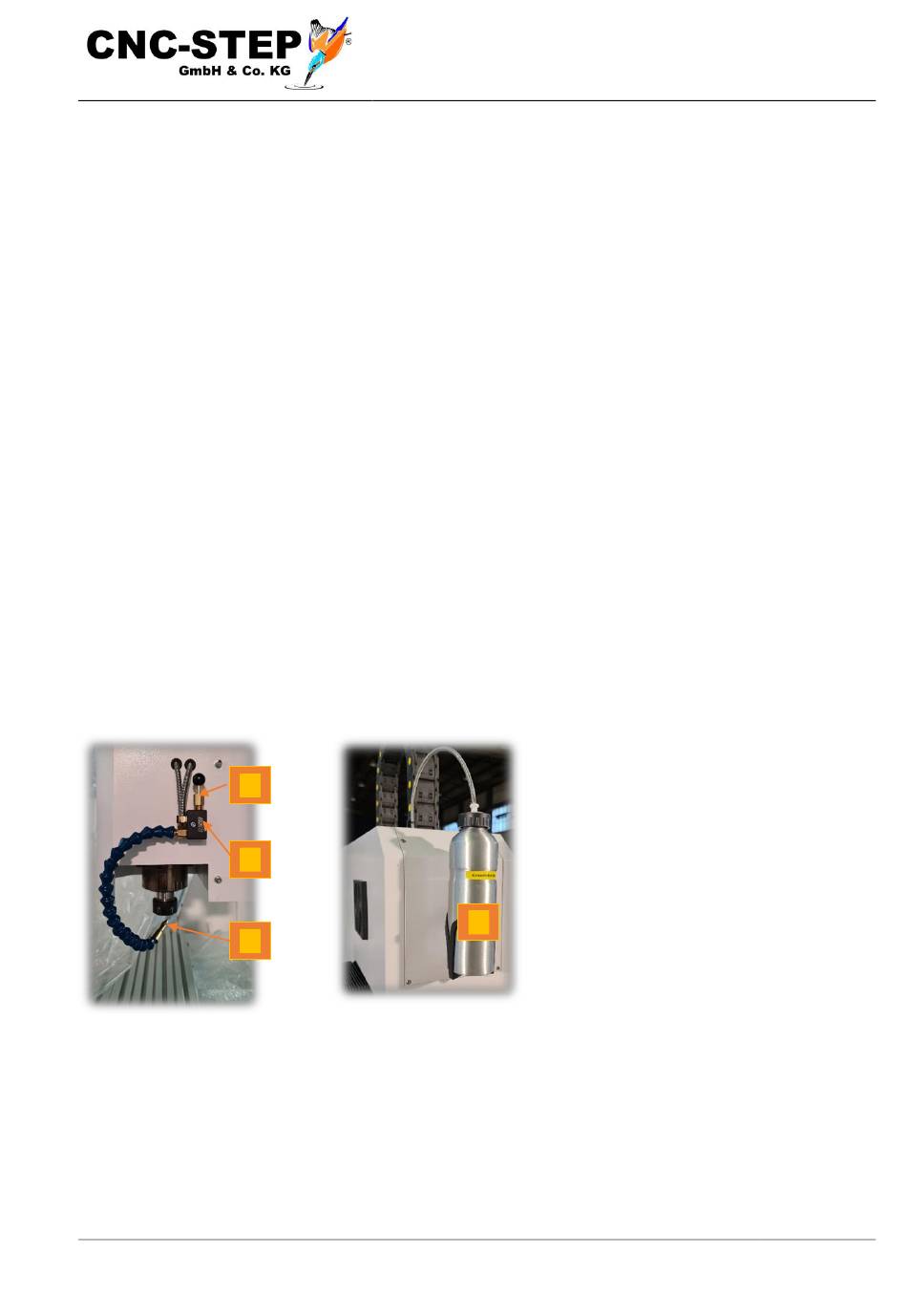

Abb. 17: Noga System
CNC-STEP GmbH & Co. KG ▪ Siemensstrasse 13-15 ▪ 47608 Geldern ▪ Germany
Support: +49 (0)2831/91021-50
4
Fig. 17.1: Lubricant tanks
Operating instructions
T-Rex Servo-Series
1. Stop valve
2. Noga valve unit
3. Spray nozzle, adjustable
4. Lubrication tank
