4 .3 .4 Z - a x i s 3 0 0 m m ( O p t i o n )
With the Z-axis 300mm option, the travel of the Z-axis increases from 200mm to 300mm.
At the same time, the passage height between the bridge and the vacuum plate is correspondingly
greater. Technically, the structure is identical to the 200mm Z-axis.
4 .3 .5 Z - a x i s 4 0 0 m m ( O p t i o n )
With the Z-axis 400mm option, the travel of the Z-axis increases from 200mm to 400mm.
At the same time, the passage height between the bridge and the vacuum plate is correspondingly
greater.
The structure of the Z-axis differs from the two smaller variants. The hood is firmly connected to
the Z-axis and moves up and down together with the HF spindle.
1

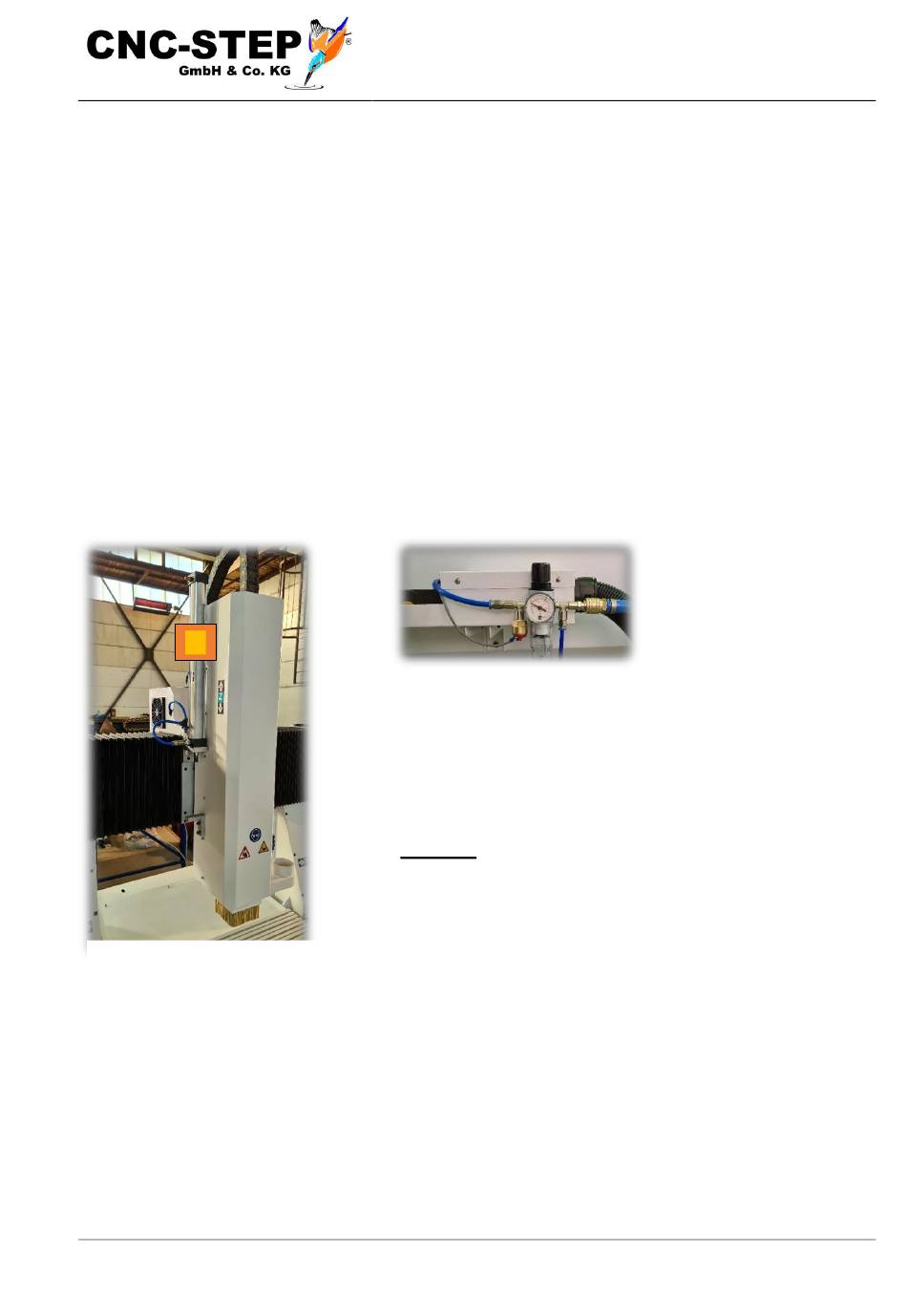

Fig.8.3: Z-axis 400mm
4 .3 .6 To o l h o l d e r
Optionally, it is possible to equip the machine with different tool holders or Z-plates on the Z-axis.
Thus, in addition to the standard HF spindle, many other tools can be attached to the Z-axis. For
example, oscillating knives, milling spindles.
CNC-STEP GmbH & Co. KG ▪ Siemensstrasse 13-15 ▪ 47608 Geldern ▪ Germany
Support: +49 (0)2831/91021-50
Fig. 8.4: Pressure control valve for cylinders
1 Cylinder for Z-axis support
The cylinder supports the Z-axis. The pressure is set to
2-2,5 bar at the pressure control valve.
