4 .3 .7 C e n t r a l l u b r i c a t i o n
The machines of the T-Rex series all have central lubrication.
It works automatically via an electric pump and is controlled by the software.
The pump with the oil reservoir is located at the back of the machine at the Y-bridge.

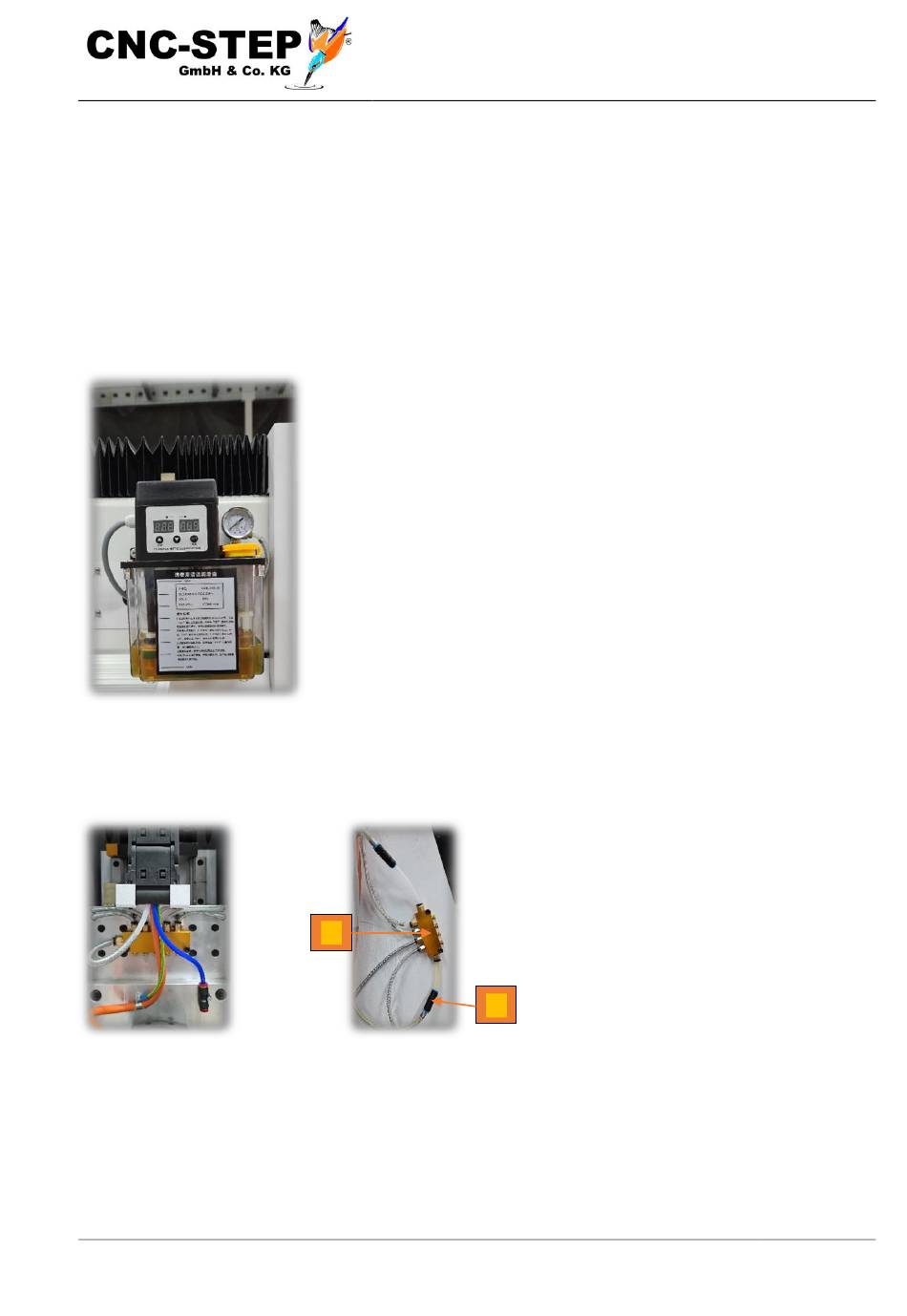

Fig. 9.1: Oil tank for central lubrication
Fig. 9.2: Oil distributor Z-axis
CNC-STEP GmbH & Co. KG ▪ Siemensstrasse 13-15 ▪ 47608 Geldern ▪ Germany
Support: +49 (0)2831/91021-50
The display on the storage container is deactivated! The system
is controlled via the Sofware Kinetic-NC!
The software also monitors the oil level and issues an error
message if it falls below it.
The pump transports the oil via hoses to the lubrication points.
There are also oil distributors on all axles.
1
2
Fig. 9.3: Oil distributor X-axis
Operating instructions
T-Rex Servo-Series
1 Oil distributor
2 Non return valve
