Settings in the KinetiC-NC software
In the KinetiC-NC software, the oil level of the central lubrication is monitored.
If the minimum filling quantity is not reached, the software issues an error message.
Adjustment options for central lubrication

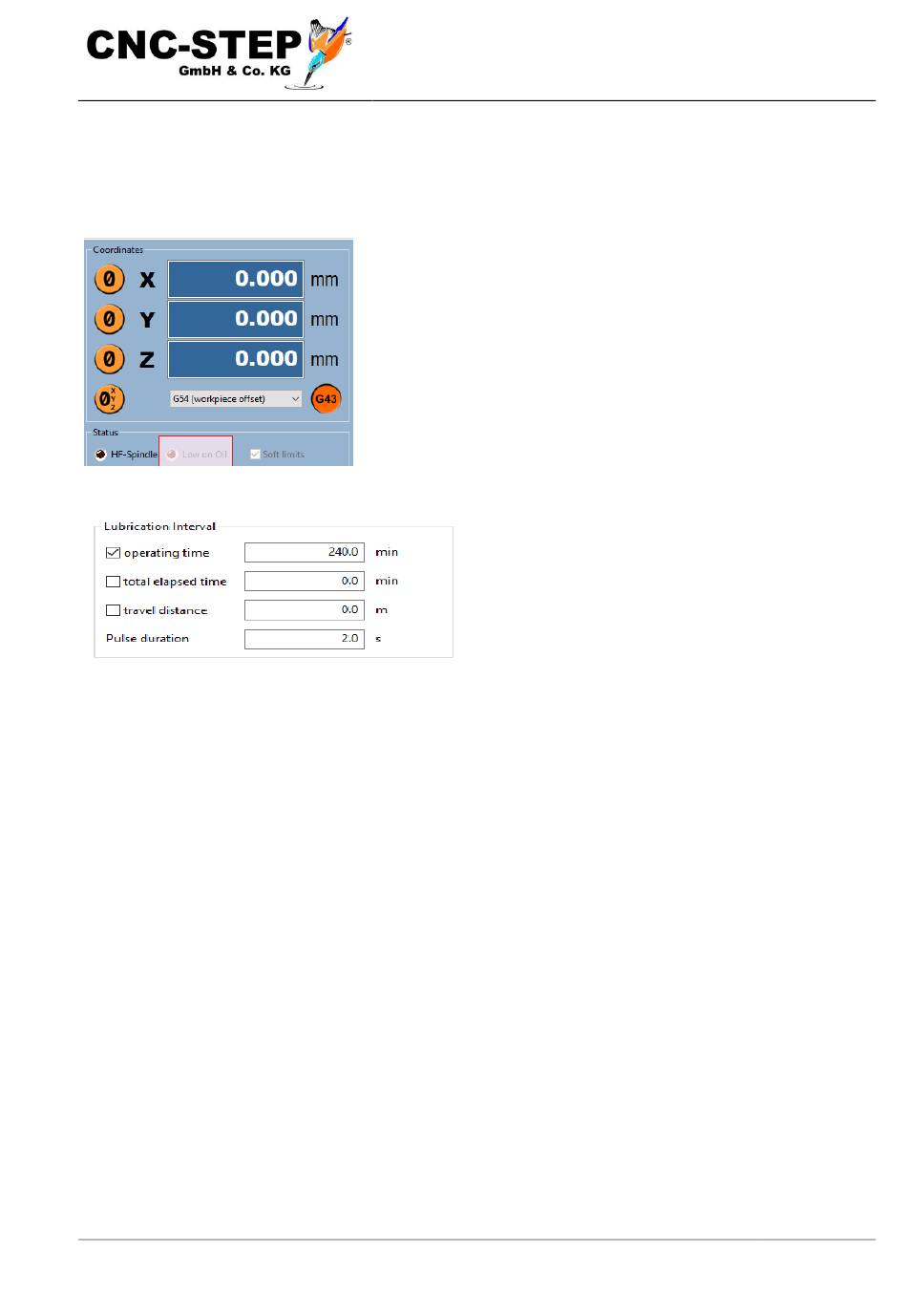

Fig. 9.5: Central lubrication interval
Runtime: (Standard - 240min)
The machine runtime is recorded in the background. All movements >1sec are considered, both
during manual driving and in program mode.
Total elapsed time:
The recorded total time is independent of the machine or software runtime.
Distance travelled:
Here it is looked at how many meters all axes have moved together.
Length of pulse: (Standard - 2sec)
Duty cycle of the oil pump when the lubrication interval is reached.
The lubricant intervals should be checked regularly, so that all Linear guides, spindles etc. get
enough oil.
CNC-STEP GmbH & Co. KG ▪ Siemensstrasse 13-15 ▪ 47608 Geldern ▪ Germany
Support: +49 (0)2831/91021-50
Operating instructions
T-Rex Servo-Series
These settings can be found in the
software under the tabs:
Configuration - Machine - Maintenance
