4 .3 D e s c r i p t i o n A s s e mb l y G r o u p
4 .3 .1 X - a x i s
The complete Y-bridge is moved back and forth via the linear guides of the X-axis.
1

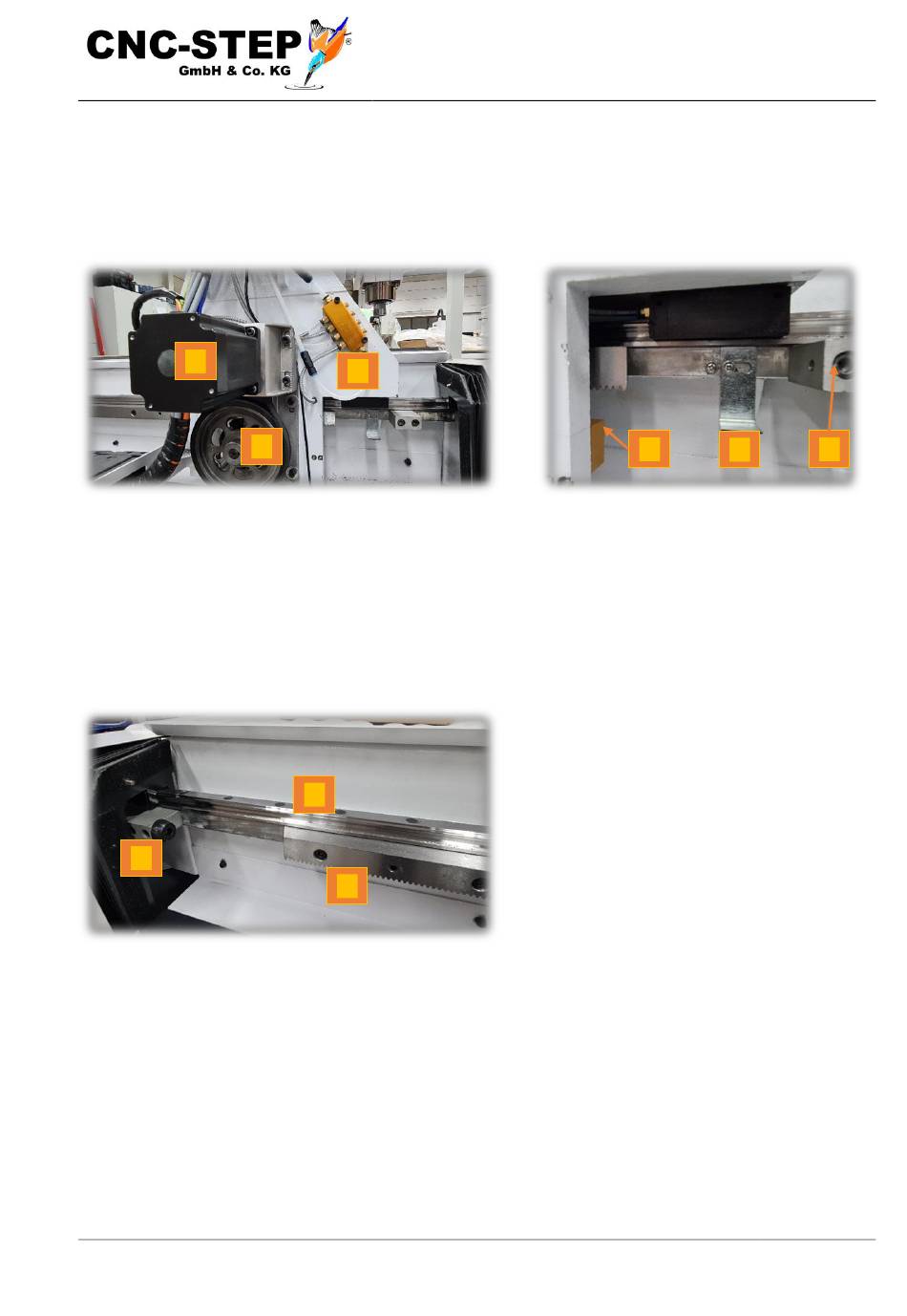

Fig.6: X-axis
1. Servo motor with gearbox X-axis
2. Transmission via timing belt
3. Distributor central lubrication
3
Fig.6.2: X-axis
1. Linear Guides
2. Rack
The conversion of the rotary movement of the motor into the linear movement of the X-axis takes
place via the gear wheel on the rack.
CNC-STEP GmbH & Co. KG ▪ Siemensstrasse 13-15 ▪ 47608 Geldern ▪ Germany
Support: +49 (0)2831/91021-50
3
2
1
2
Operating instructions
4
Fig.6.1: X-axis
4. Reference switch, inductive
5. Reference
6. Mechanical end stop
3. Mechanical end stop
T-Rex Servo-Series
5 6
