4 .4 .1 Ma c h i n e Co n t ro l l e r

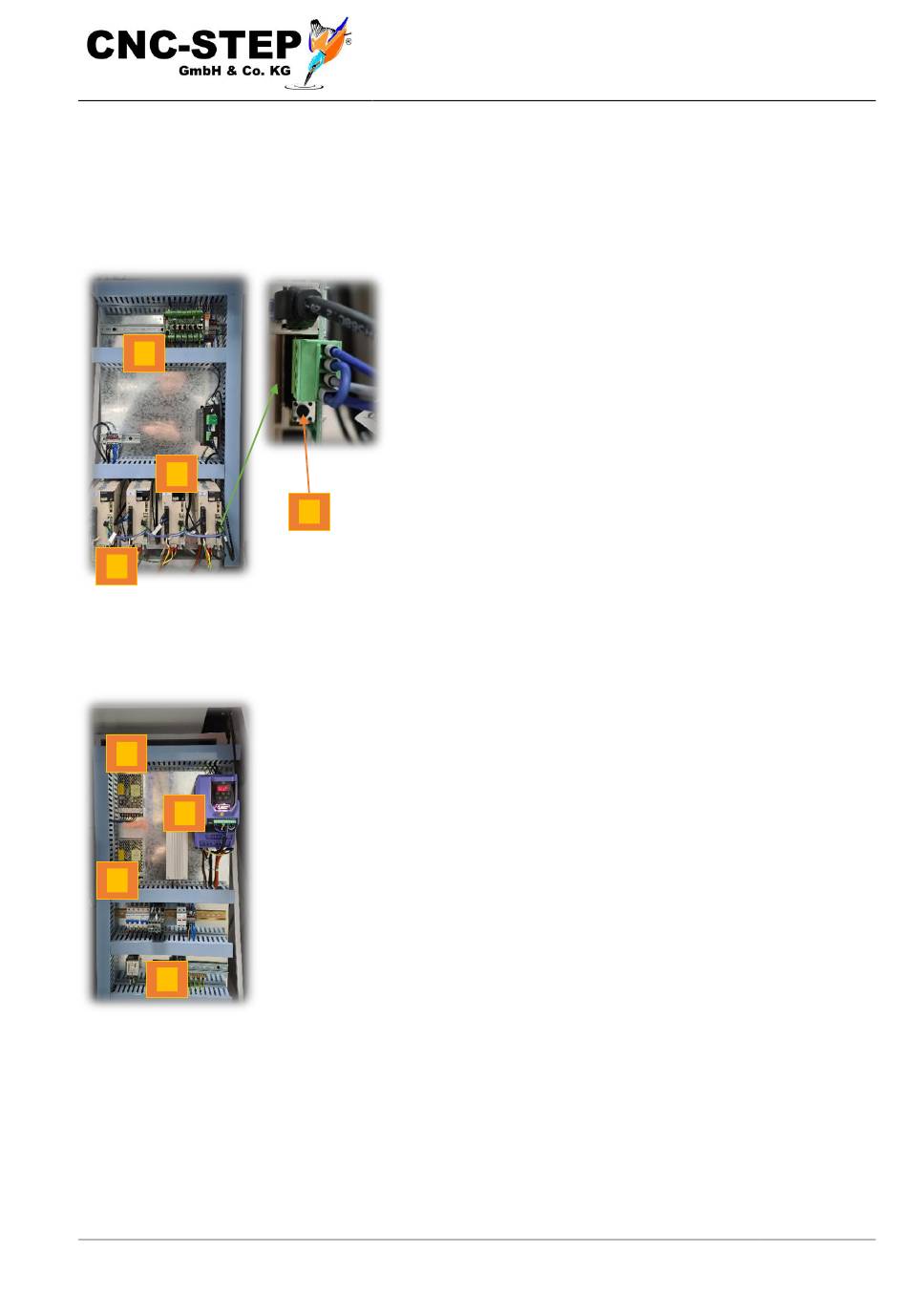

On the right side you can find the main control board and the Servomotor power amplifiers for the
X, Y, Z and C axes. The controller is thus already prepared for the operation of a 4th axis, such as a
rotary axis or an oscillating knife (cutting module).
1
2
3
Fig.10.1: Control
Here is the main power supply and the converter for the operation of the HF spindle.
3
1
2
4
Fig.10.2: Control
CNC-STEP GmbH & Co. KG ▪ Siemensstrasse 13-15 ▪ 47608 Geldern ▪ Germany
Support: +49 (0)2831/91021-50
1 - Main Control Board
2 -Stepper amplifier 4. Axis
3 - Servo amplifiers X1/X2/Y/Z
4 - Reset button Servo amplifier
4
1 - Inverter for HF spindle
2 - Power supply 24V motherboard etc.
3 - Power supply 48V for power amplifier 4. Axis
4 - Line
