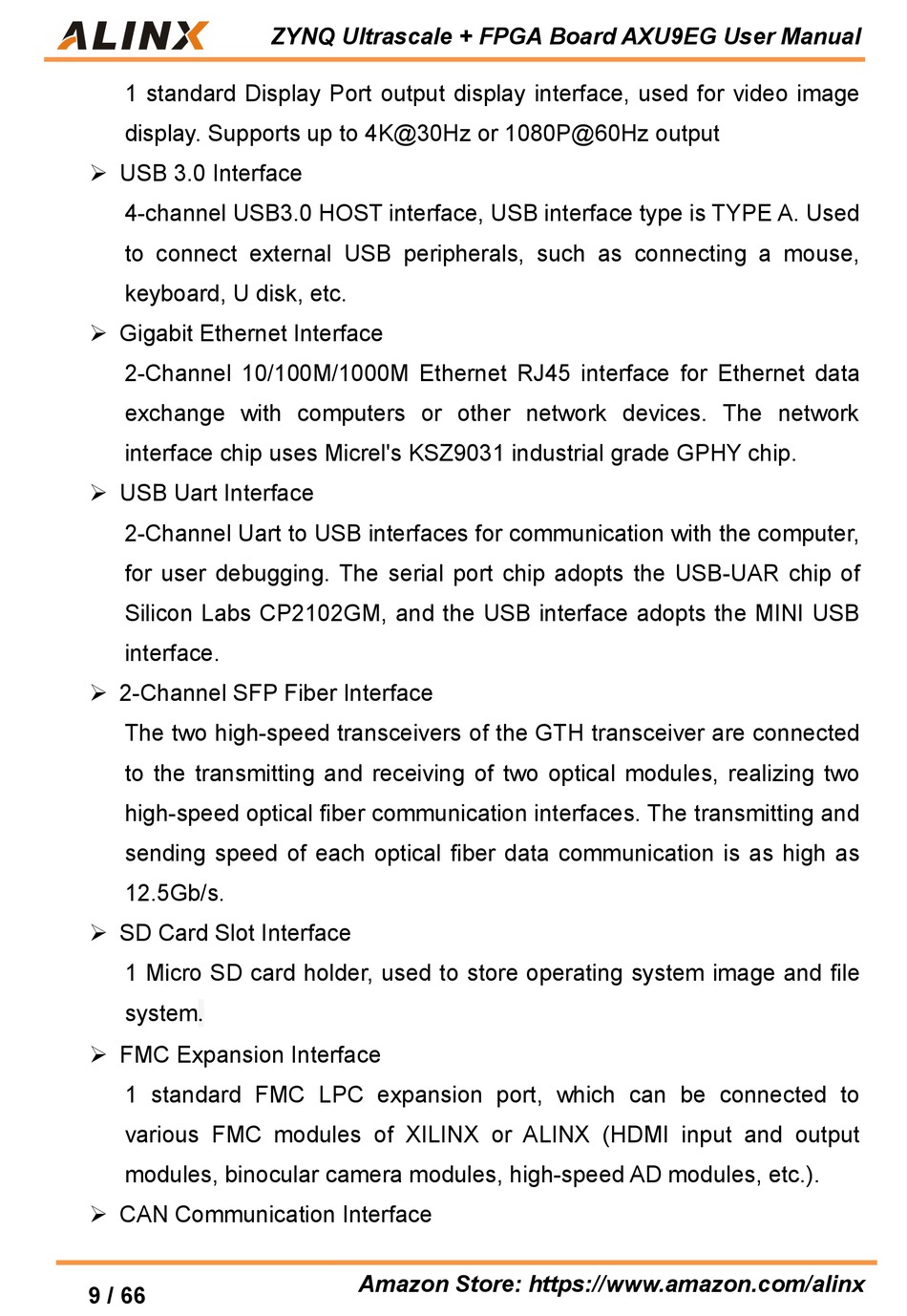

1 standard Display Port output display interface, used for video image
display. Supports up to 4K@30Hz or 1080P@60Hz output
 USB 3.0 Interface
4-channel USB3.0 HOST interface, USB interface type is TYPE A. Used
to connect external USB peripherals, such as connecting a mouse,
keyboard, U disk, etc.
 Gigabit Ethernet Interface
2-Channel 10/100M/1000M Ethernet RJ45 interface for Ethernet data
exchange with computers or other network devices. The network
interface chip uses Micrel's KSZ9031 industrial grade GPHY chip.
 USB Uart Interface
2-Channel Uart to USB interfaces for communication with the computer,
for user debugging. The serial port chip adopts the USB-UAR chip of
Silicon Labs CP2102GM, and the USB interface adopts the MINI USB
interface.
 2-Channel SFP Fiber Interface
The two high-speed transceivers of the GTH transceiver are connected
to the transmitting and receiving of two optical modules, realizing two
high-speed optical fiber communication interfaces. The transmitting and
sending speed of each optical fiber data communication is as high as
12.5Gb/s.
 SD Card Slot Interface
1 Micro SD card holder, used to store operating system image and file
system.
 FMC Expansion Interface
1 standard FMC LPC expansion port, which can be connected to
various FMC modules of XILINX or ALINX (HDMI input and output
modules, binocular camera modules, high-speed AD modules, etc.).
 CAN Communication Interface
