ZU15EV chip is powered on, it will detect the level of (PS_MODE0~3) to
determine the startup mode. The user can select different startup modes

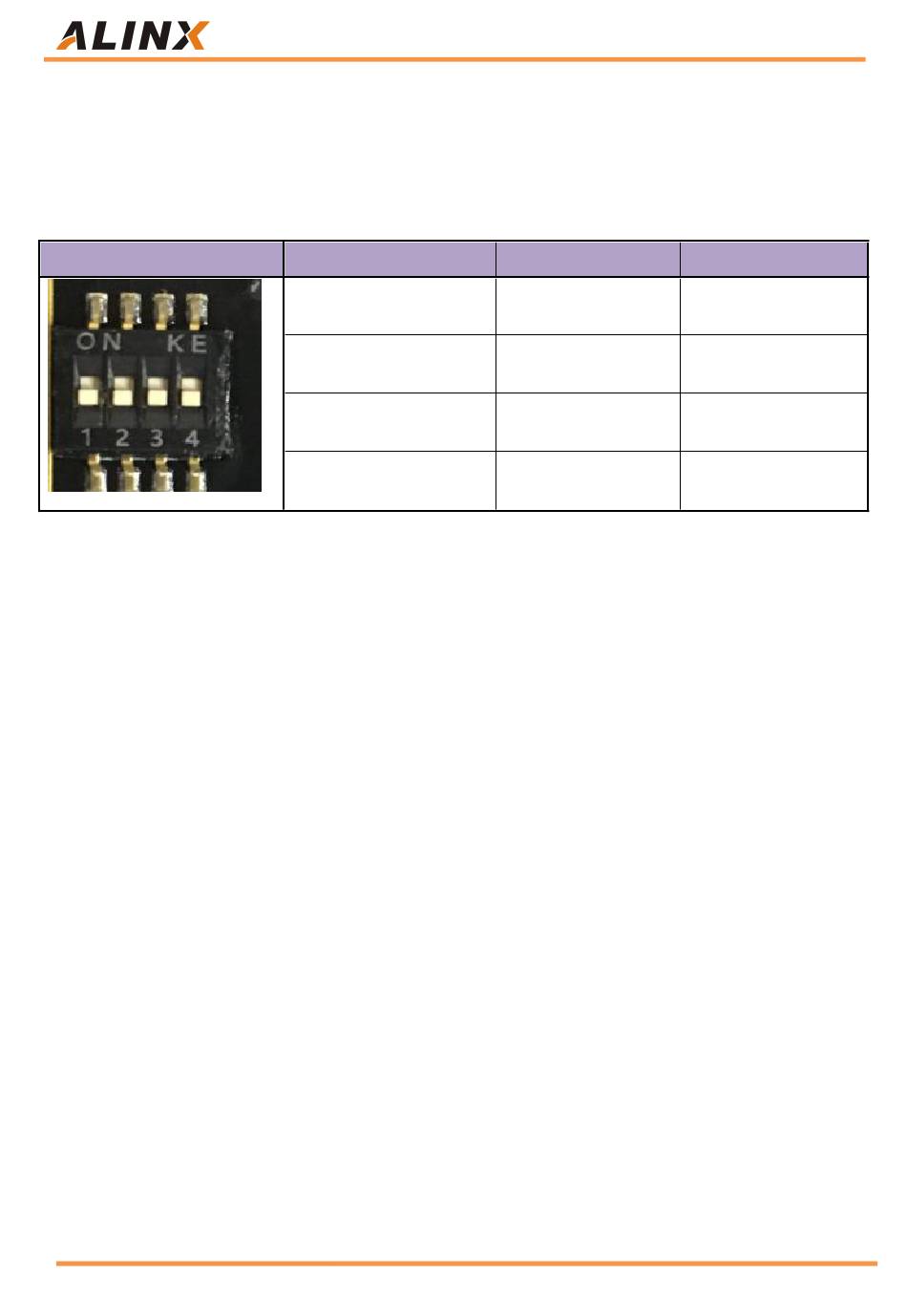

through the DIP switch SW1 on the expansion board. The SW1 startup mode
configuration is shown in the following table 3-19-1.
SW1

Part 3.20: Power Supply

The power input voltage of the AXU15EG development board is DC12V. In
the carrier board, the DC12V is converted into +5V, +3.3V, +1.8V, and +1.2V,
through one-way DC/DC power chip TPS54620 and three-way DC/DC power
chip MP1482. The schematic diagram of the power supply design on the board
is shown in Figure 3-20-1:
63 / 66
ZYNQ Ultrascale + FPGA Board AXU9EG User Manual
Dial Position （1， 2， 3, 4）
ON，ON，ON，ON
ON，ON，OFF ,ON
ON，OFF，ON，OFF
ON，OFF， OFF， ON
Amazon Store: https://www.amazon.com/alinx
MODE[3:0]
0000
0010
0101
0110
Start mode
PS JTAG
QSPI FLASH
SD Card
EMMC
