EEPROM pin assignment:
Signal Name
PS_IIC_SCL_1V8
PS_IIC_SDA_1V8

Part 3.17: User LEDs

There are 4 LEDs on the AXU15EG Carrier board. including 1 two-color
indicator light, 1 DONE indicator, 1 PS control indicator, and 1 PL control
indicator. The user can control the on and off through the program. The

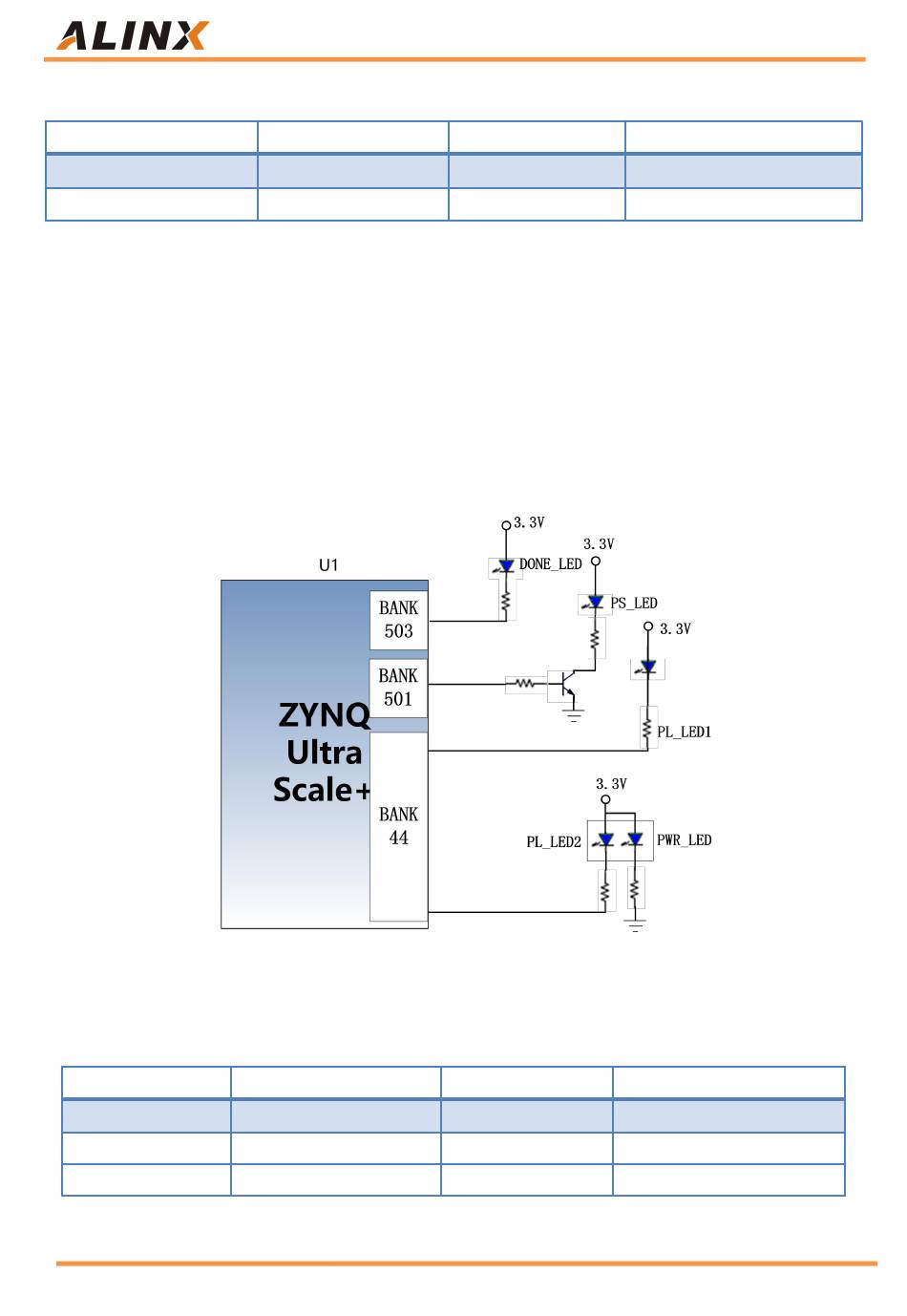

schematic diagram of the user's LED light hardware connection is shown in
Figure 3-17-1:
Figure 3-17-1: The User LEDs Hardware Connection Diagram
Pin assignment of user LED lights
Signal Name
PS_LED
PL_LED1
PL_LED2
61 / 66
ZYNQ Ultrascale + FPGA Board AXU9EG User Manual
ZYNQ Pin Name
PS_MIO34
PS_MIO35
ZYNQ Pin Name
PS_MIO44
B44_L4_N
B44_L3_N
Amazon Store: https://www.amazon.com/alinx
ZYNQ Pin Number
L22
P22
ZYNQ Pin Number
N24
AM13
AP12
Description
I2C Clock Signal
I2C Data Signal
Description
PS User LED Light
PL User LED1 Light
PL User LED2 Light
