ZYNQ Ultrascale + FPGA Board AXU9EG User Manual

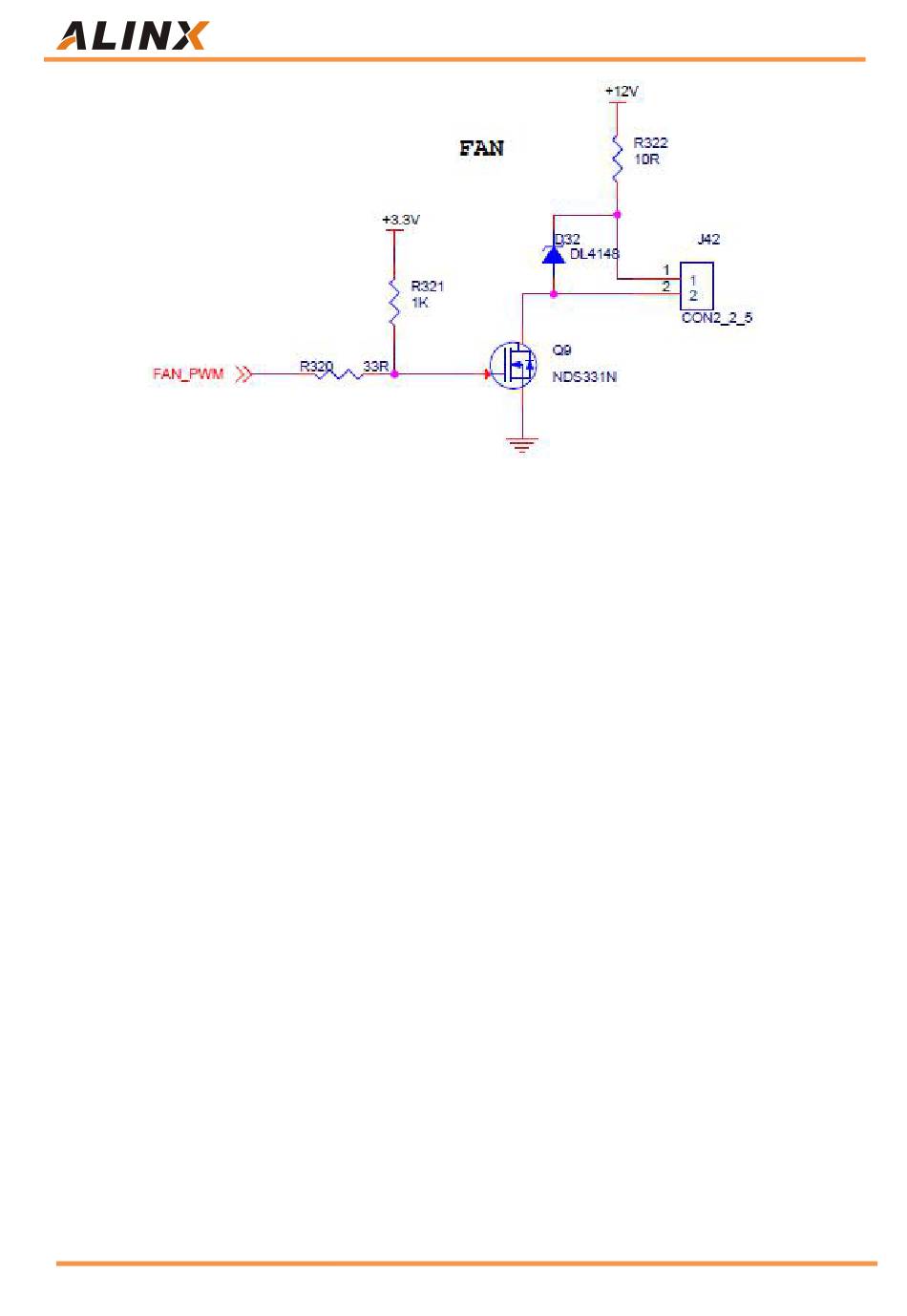

Figure 3-21-1：Fan Design Schematic
The fan has been screwed to the FPGA development board before leaving
the factory. The power of the fan is connected to the socket of J55. The red is
positive and the black is negative.
