Part 3.6: USB to Serial Port

The AXU15EG carrier board is equipped with two Uart to USB ports, one is
connected to the PS end, and one is connected to the PL end.
The conversion chip uses Silicon Labs CP2102GM's USB-UAR chip, and
the USB interface is a MINI USB interface. You can use a USB cable to
connect it to the PC's USB port for serial data communication. The schematic
diagram of the USB Uart circuit design is shown in the figure below:
The schematic diagram of the USB Uart circuit design is shown in Figure
3-6-1:
USB to serial port ZYNQ pin assignment:
Signal name
PS_UART_TX
PS_UART_RX
PL_UART_TX
PL_UART_RX
46 / 66
ZYNQ Ultrascale + FPGA Board AXU9EG User Manual

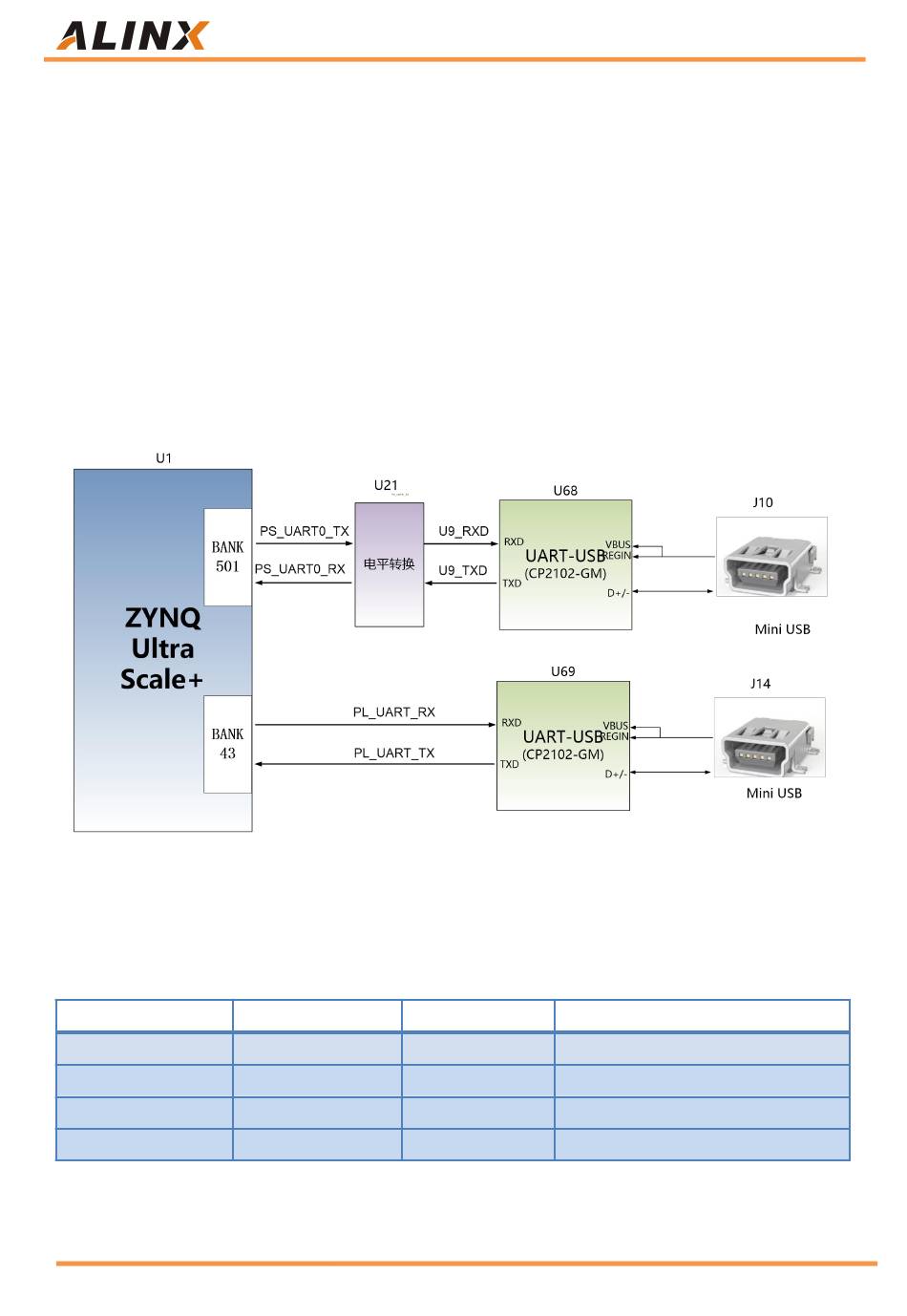

Figure 3-6-1: USB to serial port schematic
Pin Name Pin Number
PS_MIO43
PS_MIO42
B50_L4_P
B50_L4_N
Amazon Store: https://www.amazon.com/alinx
Description
K24 PS Uart Data Output
M24 PS Uart Data Input
D10 PL Uart Data Output
D10 PL Uart Data Input
