Part 3.11: MIPI Camera Interface

The AXU15EG carrier board includes a MIPI camera interface, which can
be used to connect with the ALINX Brand MIPI OV5640 camera module
AN5641. MIPI interface 15PIN FPC connector, 2 LANE data and 1 pair of clock,
connected to the differential IO pin of BANK67, other control signals are
connected to the IO of BANK43, level standard It is 3.3V.
The circuit schematic of the MIPI interface part is shown in Figure 3-14-1
below:

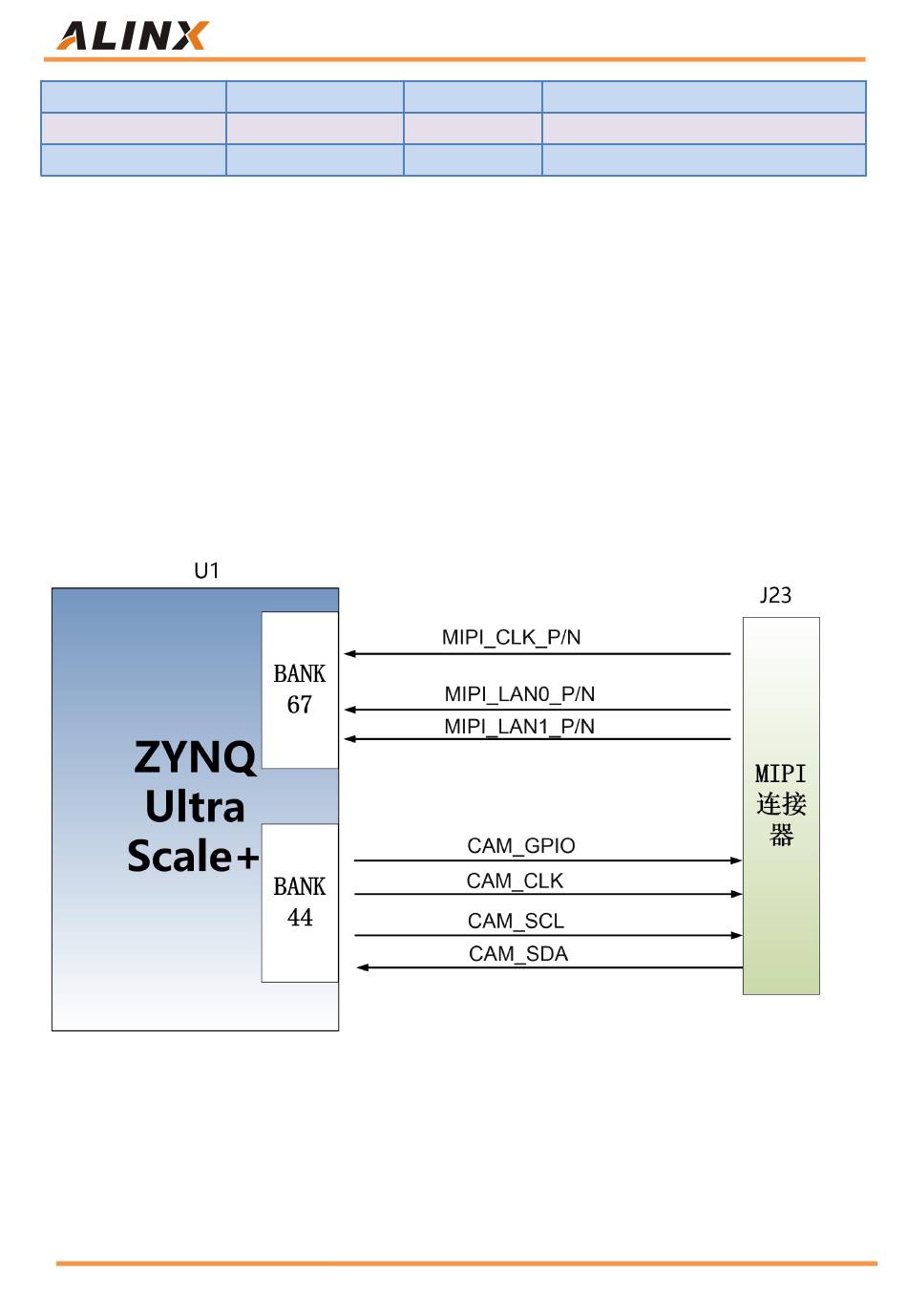

Figure 3-14-1: MIPI camera interface design schematic
