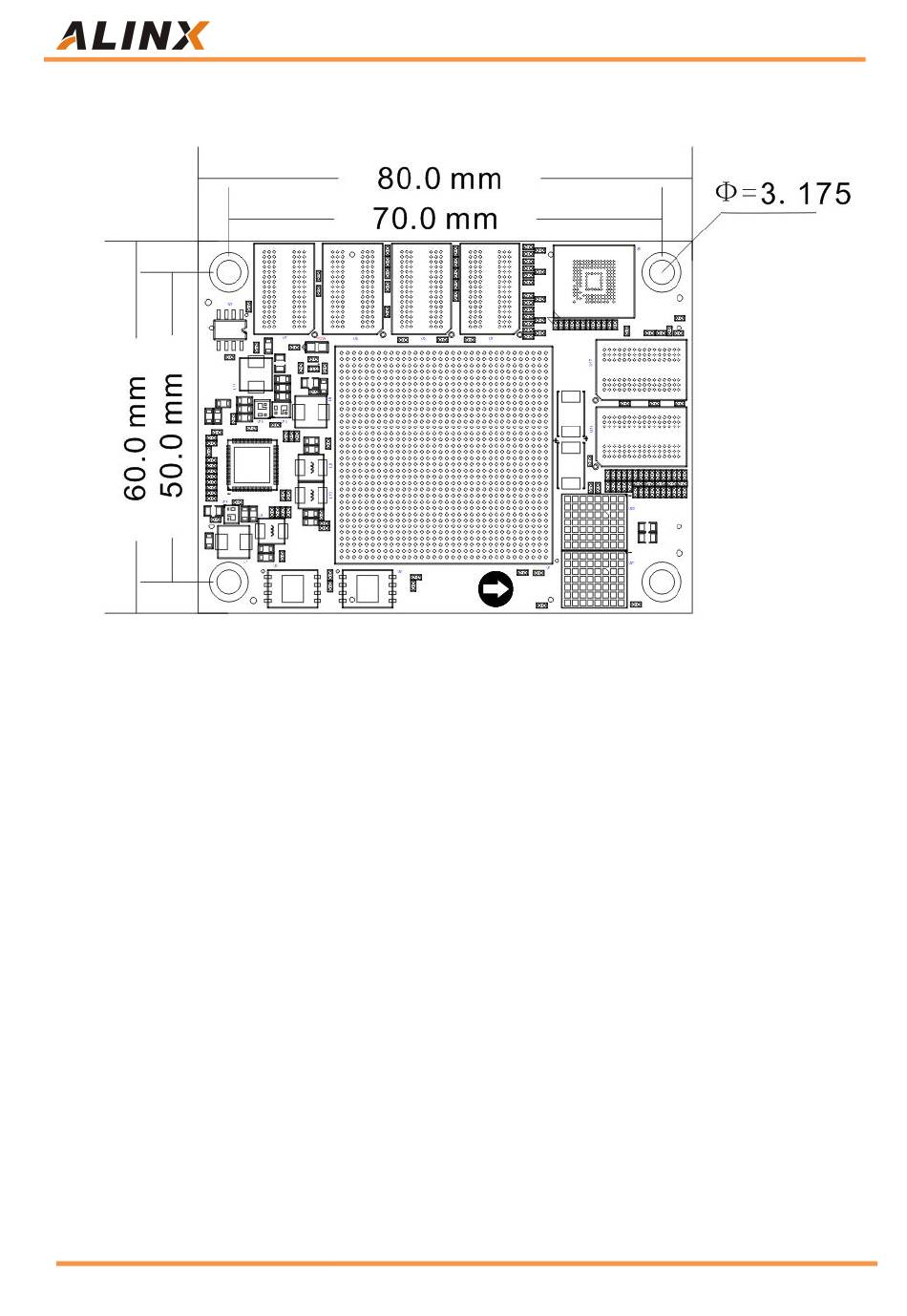

Part 2.8: ACU9EG Core Board Size Dimension
Figure 2-8-1: ACU9EG Core Board Size Dimension
Part 2.9: Board to Board Connectors pin assignment
The core board has a total of four high-speed expansion ports. It uses four
120-pin inter-board connectors (J29/J30/J31/J32) to connect to the carrier
board. The connectors used is Panasonic AXK5A2137YG, and the
corresponding connector
AXK6A2337YG.
J29 connector
J29 connects the IO of BANK66, BANK67 and the GTX signal of BANK228;
the level standard of BANK66, 67 is determined by the VCCO_66 and
VCCO_67 power supply of the carrier board, the carrier board provides +1.8V
by default.
Pin assignment of board to board connector J29
30 / 66
ZYNQ Ultrascale + FPGA Board AXU9EG User Manual
model
in
Amazon Store: https://www.amazon.com/alinx
the
carrier
board is
Panasonic
