Maintenance work on the carrier
7.20 Other maintenance work
7.20.2
Grease, spare
parts, tools
G
7 - 134

Lubricating the outrigger beams

Comply also with the run-in regulations;
Lubricating
Designation
grease
DIN 51502
Grease
KP - 1K - 50
Spray
Spray on Berulub; 0.5 litres
(spray-on)
– Brush or roller.
Danger of crushing by extending outrigger beams
Ensure that there is sufficient room around the crane. Warn any persons
nearby before extending the outrigger beams.
Observe the safety instructions in the operating manual.
After every high-pressure cleaning of the truck crane
Lubricate the outrigger beams.
Specifications
acc. to
Classification
DIN 51825
Fully extend all outrigger beams;
à
Operating manual .

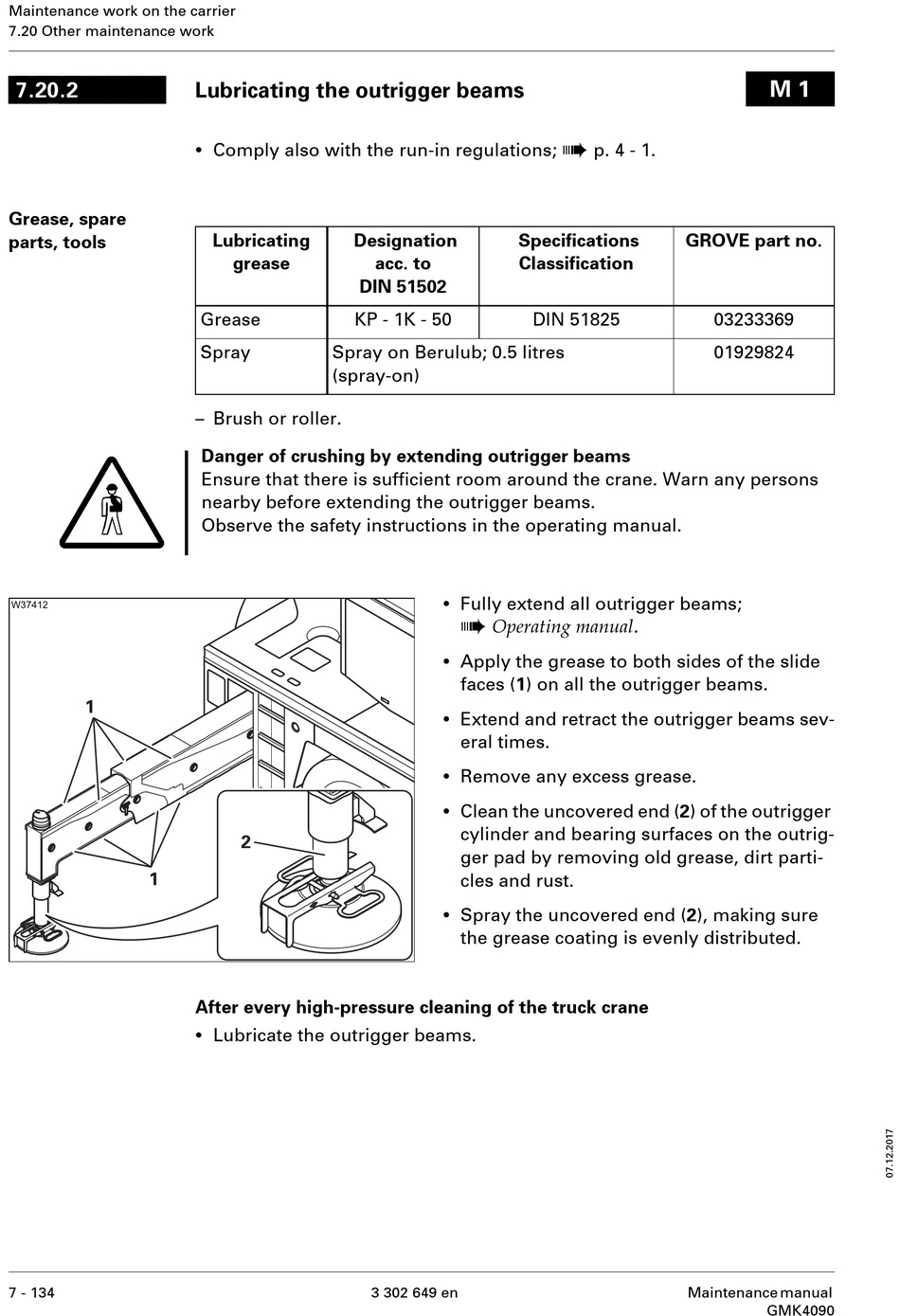

Apply the grease to both sides of the slide
faces (1) on all the outrigger beams.
Extend and retract the outrigger beams sev-
eral times.
Remove any excess grease.
Clean the uncovered end (2) of the outrigger
cylinder and bearing surfaces on the outrig-
ger pad by removing old grease, dirt parti-
cles and rust.
Spray the uncovered end (2), making sure
the grease coating is evenly distributed.
3 302 649 en
à
p. 4 - 1.
GROVE part no.
03233369
01929824
Maintenance manual
M 1
GMK4090
