Chapter 3 TEST MODE
The adjustment method of a LABEL SENSOR

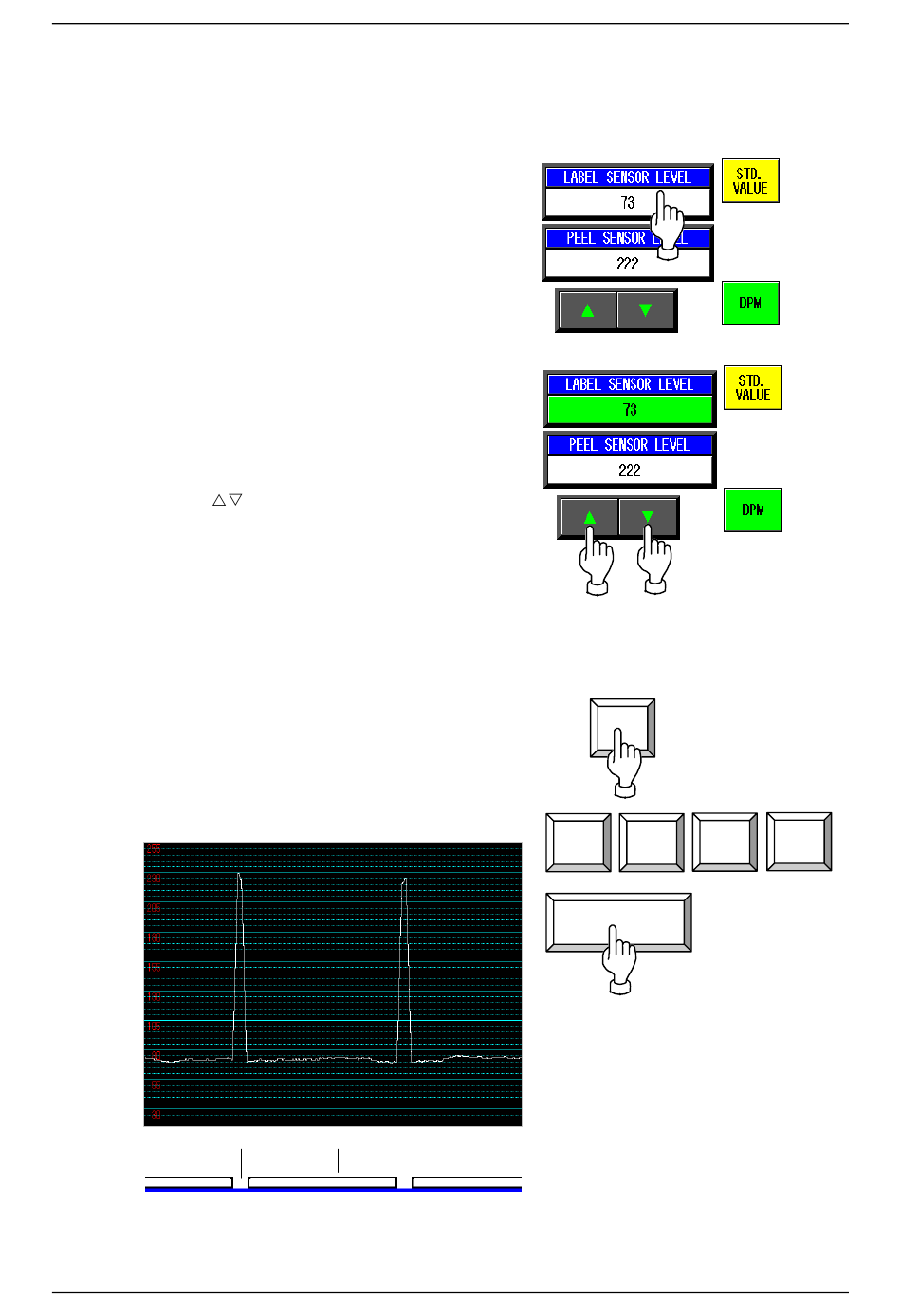

1. The adjustment method of a gain.
Touch the [LABEL SENSOR LEVEL] button.
Display field will change to green.
Touch the (
button again to change the display to white and set
adjustment data.
2. T he check method of a sensor level.
Press the [FEED] key 2 or 3 times. Then, label comes
out.
Press the [2][0][0][0] at numeric keys. And press the
[PRESET] key. Then, graph pops up.
Label gap
3-18
) adjustment buttons. Press this
Label
FEED
0
2 0
PRESET
Graph in case a STD value is 0
