APPENDIX A LABEL FORMATTING
A.2

LABEL FORMAT TABLE CONFIGURATION

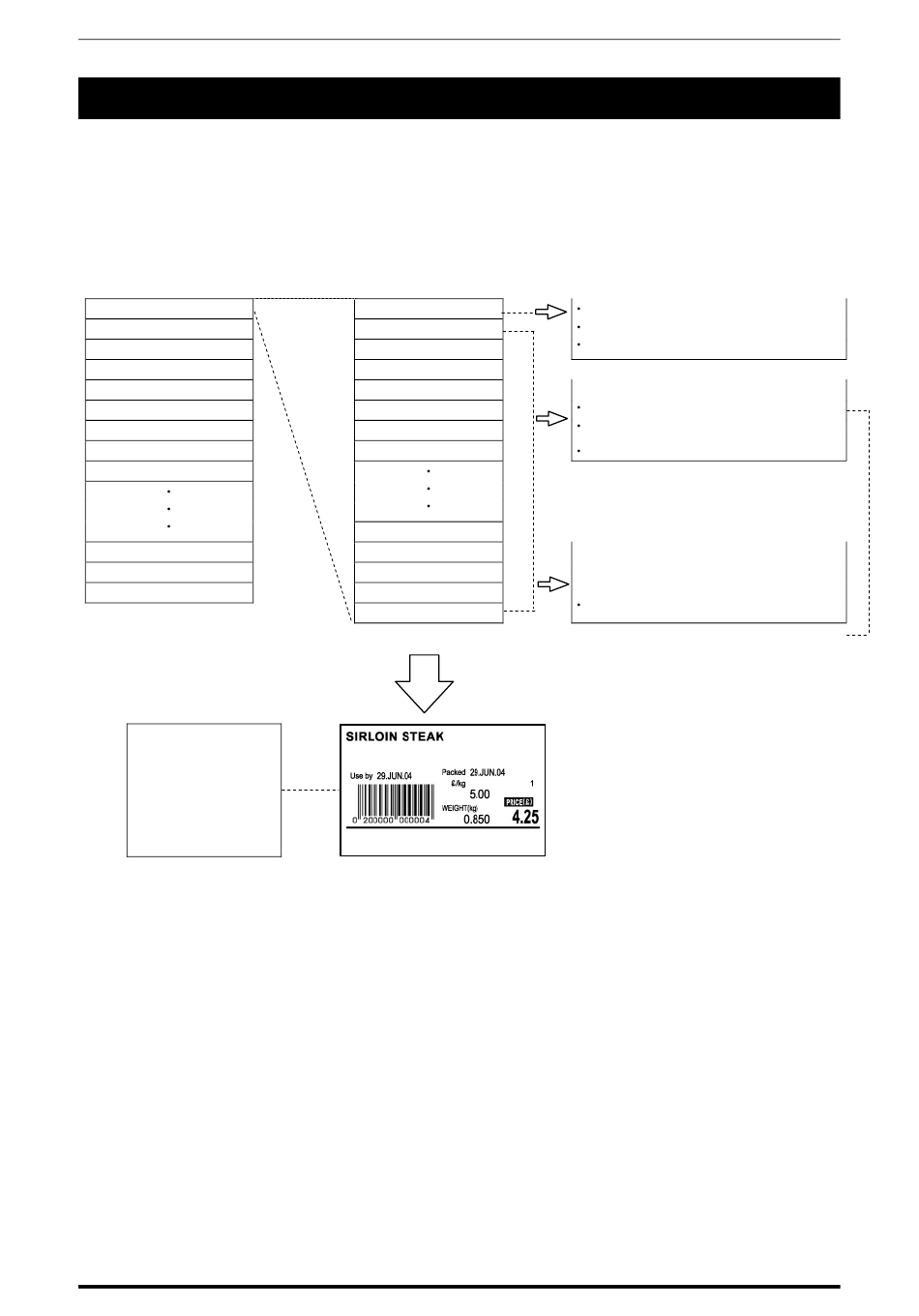

The label format table configuration for printing one label is shown below.
One unit is used for printing per one printing item.
Up to 63 items (Unit No. 1 through 63) can be printed for one label.
The unit number "0" is nothing to do with the printing item.
Fixed program + SRAM
(Max. 100 tables)
Label format table No. 1
Label format table No. 2
Label format table No. 3
Label format table No. 4
Label format table No. 5
Label format table No. 6
Label format table No. 7
Label format table No. 8
Label format table No. 9
Label format table No. ?
Label format table No. ?
Label format table No. ?
One label is issued
based on Unit No.0
through 63.
A-4
Unit No. 0 through 63
Unit No. 0
Unit No. 1
Unit No. 2
Unit No. 3
Unit No. 4
Unit No. 5
Unit No. 6
Unit No. 7
Unit No.59
Unit No. 60
Unit No. 61
Unit No. 62
Unit No. 63

Label format table configuration

Initial setting (Unit No.0)
Label format number
Label size
Number of units
Printing instruction (Unit No.1 through 63)
Which data
Where
What size
Fixed characters (Unit No.? through 50)
Fixed character data
Printing instruction and Fixed
characters share the same area.
